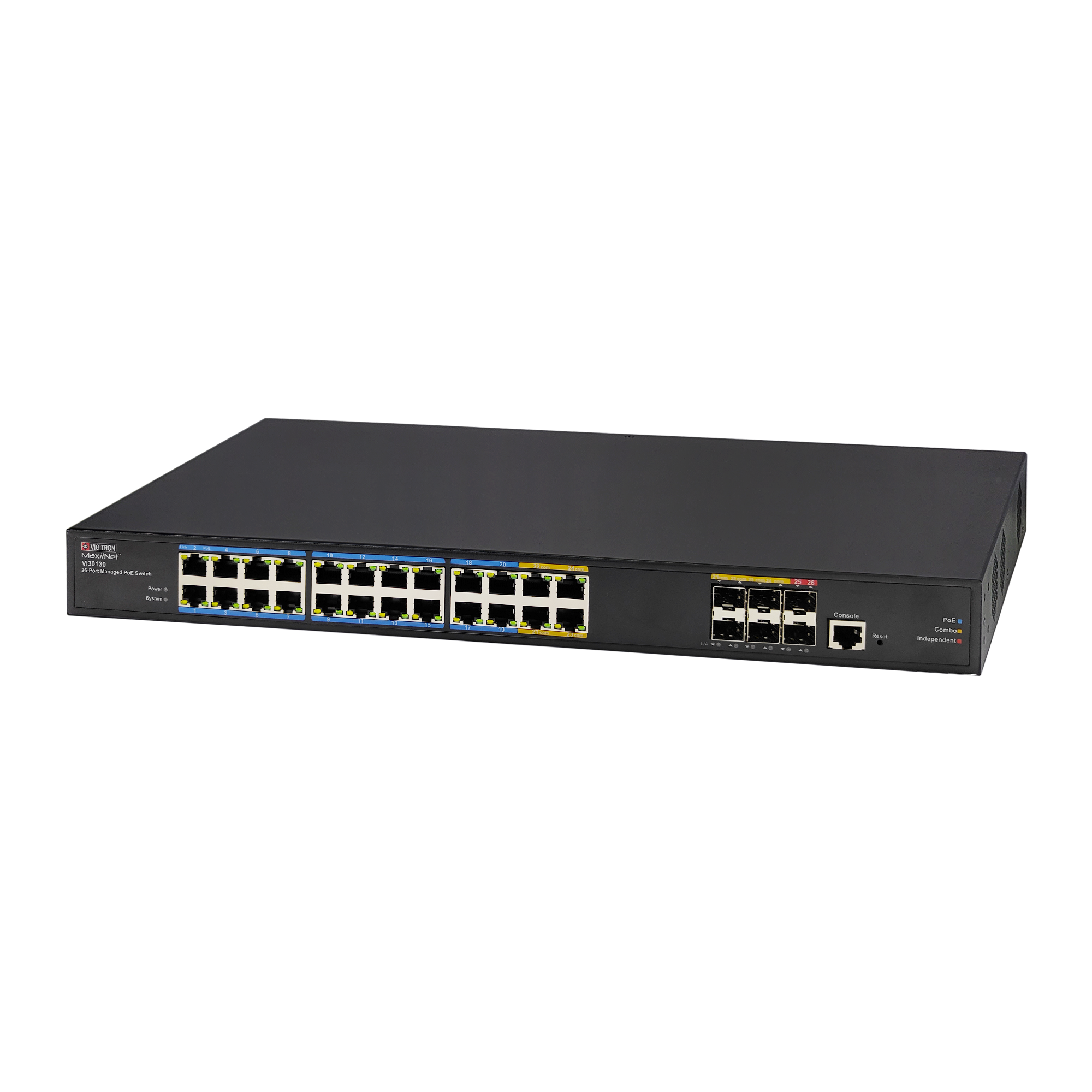

Vigitron Vi30130 24 Port MaxiiNet™ 20 UTP-16, 4 combo UTP/Fiber -16, 2 -1G Fiber uplinks 802.3bt 90w L2+/L3 lite managed network switch

• 20 x 1G Copper, 4 x 1G Combo ports and 2 x 1G independent Fiber uplink ports.
• Redundant 48-57VDC 1000W backup power input.
• IEEE 802.3bt class 0-8 PoE up to 90W per port.
• Programmable PoE on 24 Ports.
• 770W PoE budget.
• 52.0 Gbps switch fabric for MP cameras.
• Built-in 6KV port surge protection.
• Unique TimeZone reference for setting system synchronization.
• G.8032 V1/V2 Rapid Ring protocol compliant.
• Jumbo frame programming at all bandwidth settings.
• Programmable port temperature settings.
• Detail Syslog with Health status messaging.
• LLDP and ACL status identification.
• Programmable port connection monitor with automatic link and PoE reconnection.

Vigitron’s Vi30130 is a high performance ,high power PoE switch. All copper ports can provide IEEE 802.3af/at/bt class 0-8 up to 90W. It is also compatible with some non-standard PoE up to 74W making the Vi30130 the perfect solution for powering cameras from any manufacturer and upgrading existing systems with devices requiring newer types of PoE. Up to 6 ports can be used for 1G fiber uplink connections.

It offers a unique TimeZone program setting references system time to connected devices such as computers and servers. This system provides synchronization for all events such as Syslog and SNMP messaging without the need of extra cost NTP servers or references outside of closed networks.

Vi30130 has high internal bandwidth and is the perfect MDF solution to connect to remote switches.

• High PoE budget of total 770W with IEEE 802.3af/at/bt up to 90W PoE per port
• 6 x1G fiber uplink ports
• 52 Gbyte switch fabric
• G.8032 V1/V2 Rapid Ring protocol compliant
