Vigitron

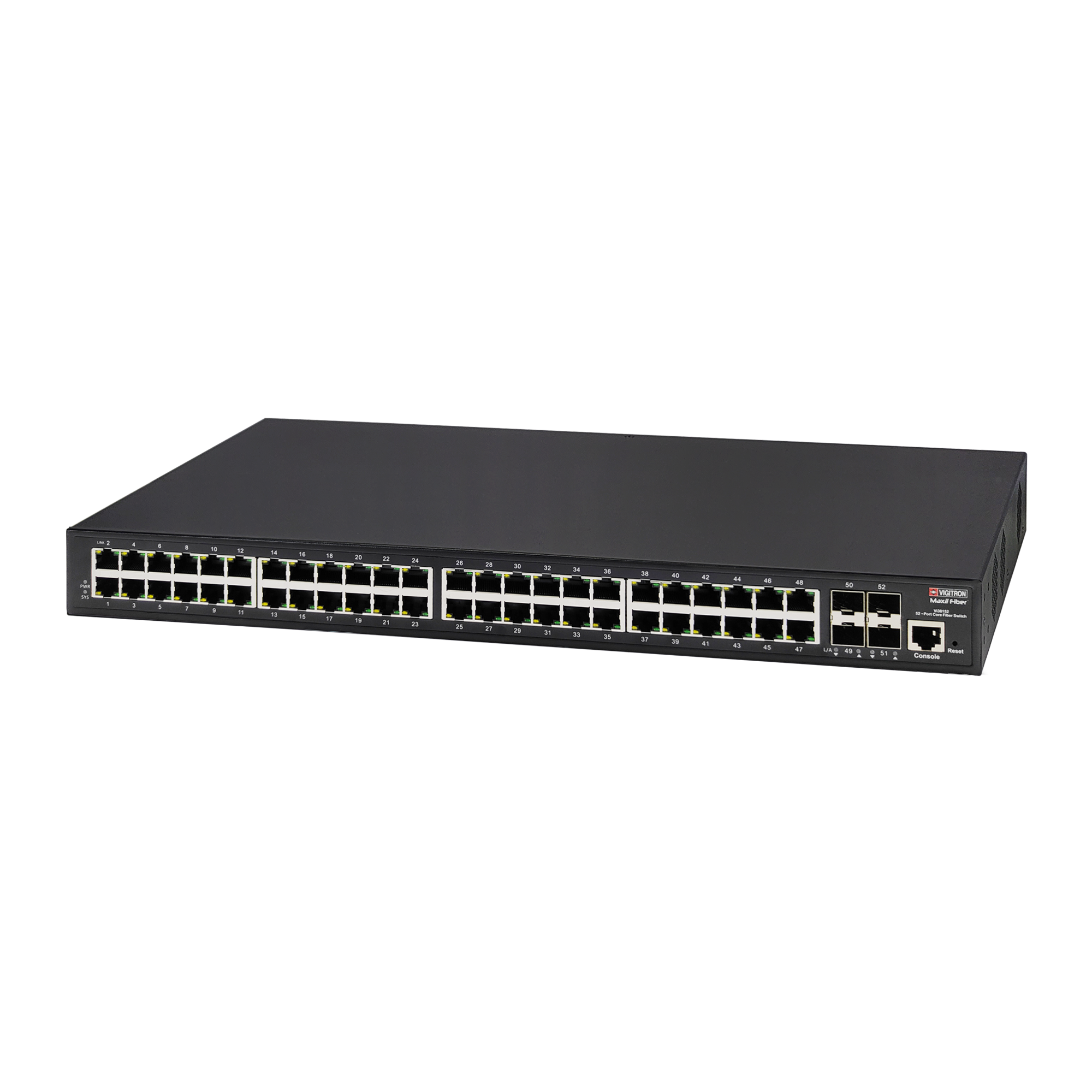

Vigitron Vi30152 52 -Port MaxiiNet™ L2+/L3 Network Switch 48 X1G UTP ports, 4 X 1G/2.5G/10G fiber uplink ports
Quantity:
Choose options
Quantity:
- 48 x 1G Copper Ports and 4 x 1G/2.5G/10G Fiber ports
- Layer2+/Layer 3 Lite
- Complies to IEEE 100MBbps to 10G bandwidth
- Dual AC or DC input power
- DC back up power with auto sense fall over
- Able to operate only on a DC power input
- Supports Redundant STP.RSTP.MSTP protocols
- Supports G.8032 V1/V2 Ring protocol
- Supports Jumbo frames to 10.4Kbytes
- Switch fabric 176Gbps, non-blocking
- High Operating temperature range -20C to +55C
- TimeZone feature for date/time system sync without the need for external equipment.
Vigitron’s Vi30152 is next generation advanced enterprise level core designed for routing up to 48 networks to a single connection. 4 fiber uplink ports provide bandwidths at 1G/2.5G/and 10G. All individual UTP ports offer several levels of surge protection and temperature monitor preventing potential damage. Programming to Layer 2+ and Layer 3 Lite offering Layer 3 configuration without the potential of external hacking. A unique TimeZone feature synchronizes time and date for all ports to central computers or servers eliminating the need and cost for NTP servers or outside network connections.
The Vi30152 has two separate power inputs, one mains AC power and the other DC power input. They can be used to back up each other or the Vi30152 can operate solely on DC power.
In addition to providing a central core point, the Vi30152 can be used with various midspans providing customized power requirements for large systems requiring a single collection point.
The Vi30152 is designed to meet the growing requirements for higher bandwidth for IP security cameras by providing reliability and connectivity with the ability to locate and identify network system problems:
- Layer 3 lite operations for operations across different subnets while maintaining network security
- Programmable video/data packet transmission up to the Jumbo Frame limit of 10240 bytes for transmitting the highest megapixel cameras at 100Mbps, 1, 2.5G and 10G port speeds
- Wide 176 Gbps switch fabric assuring all required bandwidth, even with all ports at their maximum bandwidth assuring video and data quality
- Programmable G.8032 standard ring protocol
- Programmable multicasting for compatibility and performance with largest IP video network systems
- Programmable Rapid Spanning Tree for redundant network configuration assuring maintenance of network communication using multiple paths
- Ability to use ICMP, TCP, and UDP packet transmission to test network connectivity through multiple hops
- Automatic MAC address detection for connected devices for easy connection verification and security hops
- Complete SFP read out for units containing DDMI capacity
- TimeZone programming for complete system time/date sync tied to VMS servers and computers without the need of additional NTP equipment.
