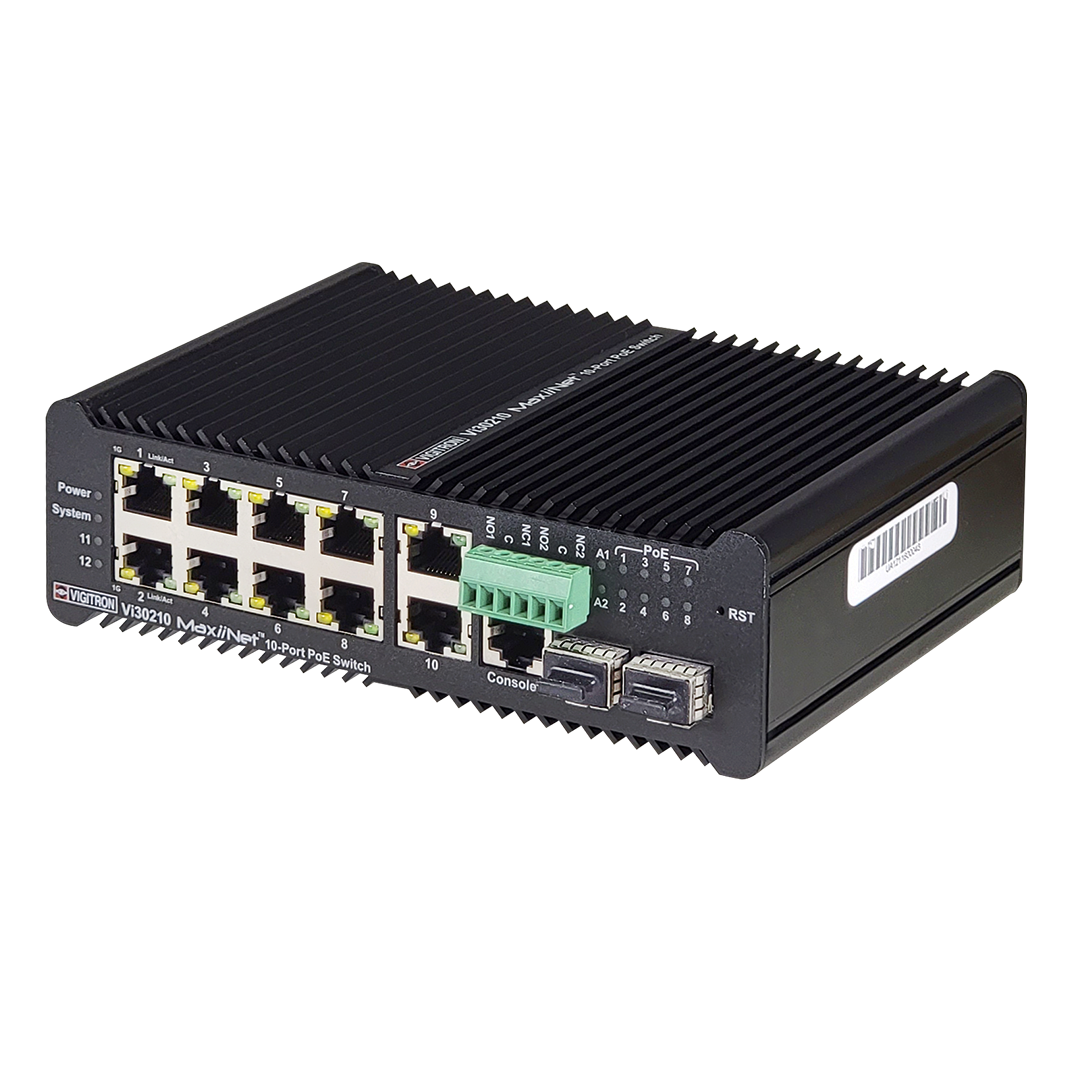

Vigitron Vi30210 Hardened Managed 10-Port, L2+, 1G Industrial 90W PoE Ring Switch
Vigitron Vi30210 Hardened Managed 10-Port, L2+, 1G Industrial 90W PoE Ring Switch

Vigitron

Vigitron Vi30210 Hardened Managed 10-Port, L2+, 1G Industrial 90W PoE Ring Switch

$1,138.00
SKU: Vi30210
Quantity:
Link to Manufacturer's Page

Contact

  • 8 + 2 ports with 10/100/1000/2500Mbps data rate
  • Jumbo frame programming at all bandwidth settings
  • 90W 802.3bt PoE compliant ports w/ 495W total input power
  • Operating temperature range -40ºC to +70ºC per NEMA-TS 2 standards
  • Tested for critical transportation and traffic applications
  • G.8032 V1/V2 Rapid Ring protocol compliant
  • Dual fiber/copper Uplink ports
  • Built-in 6kV surge protection on each port
  • 20Gb switch fabric for highest MP camera handling
  • NTP and Real-Time Clock (RTC)
  • Dual power input for backup power supply
  • Dual programmable Form C alarm outputs
  • Din Rail and Desktop mounting
  • Programmable Port Temperature monitoring
  • Detailed Syslog with Health status messaging

Vigitron's Vi30210 sets a new standard for Industrial Network Switches (INS) with a data rate up to 2.5G* for handling fiber optics uplink ports. The Vi30210 operates at temperatures ranging from -40ºC to +70ºC and is able to monitor and report individual port temperatures.

The Vi30210 accepts 57VDC power up to 495W to provide IEEE 802.3bt compliant up to 90W PoE power on 8 copper ports for a total power of 480W. This enables it to provide power for the most demanding PoE applications for PTZ domes, LED lighting, and wireless products. It is compliant with G.8032V1/V2 Rapid Ring protocol.

The Vi30210 is tested for critical transportation and traffic applications. Its intelligent PoE management allocates the maximum power priority starting from port 1. Dual copper and fiber uplinks enable drop and insert for Ring Network configurations to be used for roads and perimeter security applications.

The Vi30210 is uniquely designed for outdoor enclosure applications with a ribbed temperature disbursement chassis, 6KV surge protection, and user-programmable port thermal protection of over-temperature shut down to prevent damage to the Vi30210 from excessive heat.

The Vi30210 is an ideal solution for a wide variety of projects especially for IDF to MDF applications.
