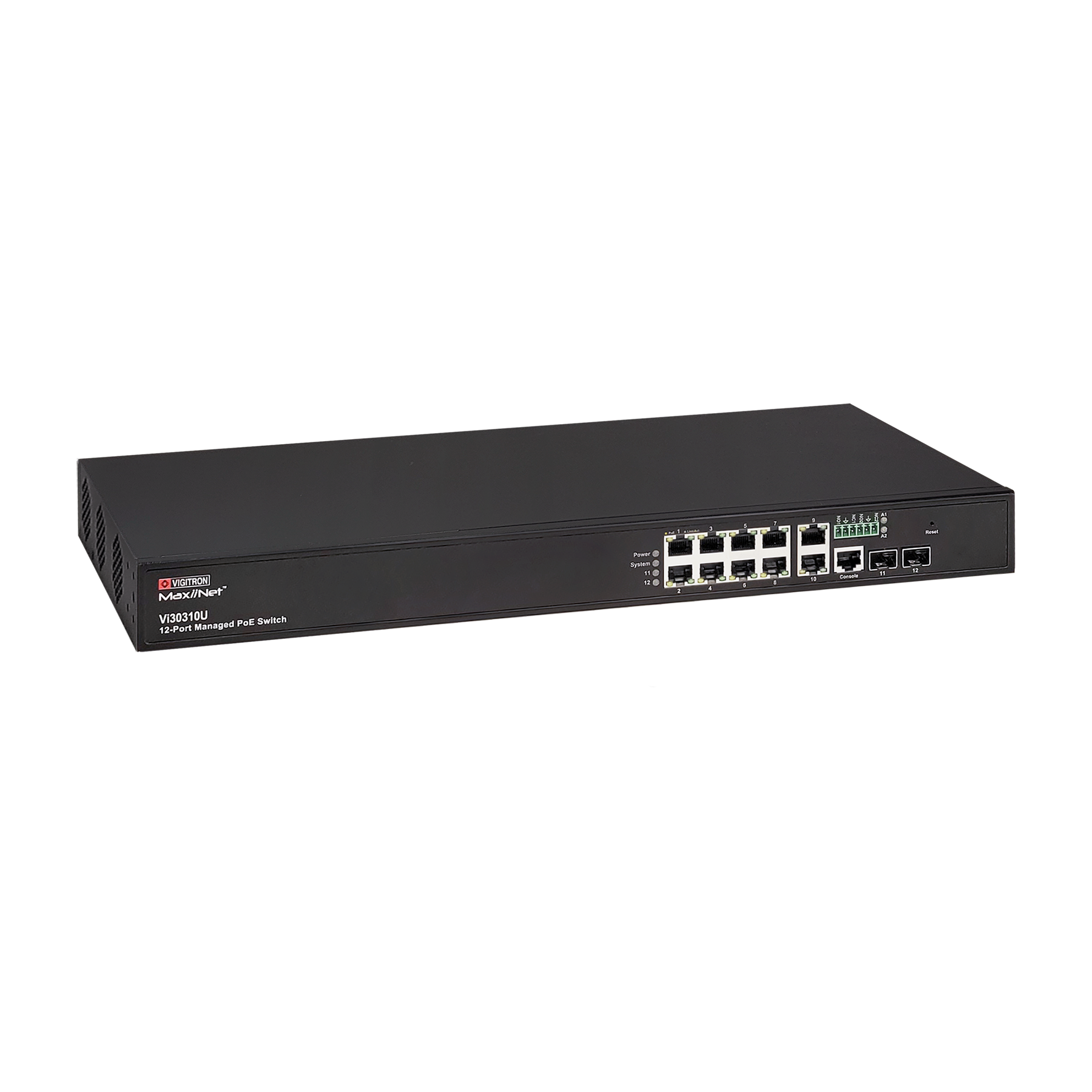

Vigitron Vi30310U 10- Port MaxiiNet™ 1G L2+/L3 Lite, af/at/bt 90W 802.3bt PoE Switch

• 8 + 2 ports with 10/100/1000/2500Mbps data rate.
• Layer 2+ /Layer 3 Lite Static routing with 2 fiber and 2 copper independent Uplink ports.
• 9.6K byte programmable packet at 100/1000/2500Mbps port bandwidth.
• Jumbo frame programming at all bandwidth settings.
• 8-ports of 90W IEEE 802.3bt PoE compliant ports w/ 730W PoE budget.
• G.8032 V1/V2 Rapid Ring protocol compliant.
• Dual fiber/copper Uplink ports.
• Built-in 6kV surge protection on each port.
• 30Gbyte Switch Fabric for the highest MP camera handling.
• Unique TimeZone feature for date and time sync without the need for an external device or network link.
• NTP and Real Time Clock (RTC).
• Dual programmable Form C alarm outputs.
• Programmable Port Temperature monitoring.
• Tested for critical transportation and traffic applications.
• Detailed Syslog with Health status messaging.
• Dual power input for backup power supply

The Vigitron Vi30310U is an advanced PoE switch designed to meet the increasing demands of bandwidth-intensive applications like Mega Pixel IP cameras and other critical devices. It has eight 10/100/1000Mbps PoE copper ports, two independent copper ports, and two 1G/2.5G fiber uplink ports, offering both flexible and reliable connectivity. With each port providing up to 90W of power and a total PoE budget of 730W, the Vi30310U is capable of powering high-power devices like PTZ cameras and LED lighting systems.

Built for secure network operations, the Vi30310U supports Layer 2+ and Layer 3 Lite static routing, ensuring secure signal routing and advanced traffic control. Each port can be configured with a unique MAC address, enhancing security by restricting access to authorized devices only. Additionally, its jumbo frame support of up to 9.6K bytes ensures efficient transmission of large data packets, reducing latency and ensuring smooth performance for high-resolution video streams.

The switch’s 30Gbps fabric ensures high-speed data transfer even when all ports are under load, while the G.8032 ring protocol offers redundancy and quick recovery in case of network failure. With 6kV surge protection on each port, it also safeguards connected devices from electrical surges, making it ideal for harsh environments. The programmable port temperature monitoring feature prevents overheating by automatically shutting down overheated ports to maintain optimal network performance.

The Vi30310U’s TimeZone capability allows internal time synchronization without external servers, which is essential for security applications requiring accurate time-stamped data. It also supports NTP and RTC functions, ensuring precise timekeeping across connected devices.

With dual power inputs for redundancy, dual programmable alarm outputs for real-time monitoring, and syslog reporting for advanced diagnostics, the Vi30310U ensures continuous, reliable network performance. Its compact, versatile design makes it suitable for various installations, from industrial systems to high-security networks.
