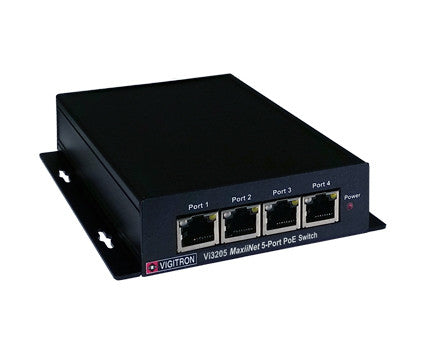

Vigitron Vi3205 5-Port MaxiiNet PoE Powered PoE Switch

Vigitron’s MaxiiNet™ Vi3205 fixed managed 5-port PoE switch brings new performance standards to the growing need for high speed transmission of high speed Ethernet and PoE. The Vi3205 is powered by Vi1120 120W power supply and can provide up to 37W to each of its 4 standard Ethernet ports.

The Vi3205’s uplink can operate on coax at extended distances up to 3,000 feet. When using Coax uplink it can receive PoE power from the headend to power itself eliminating the need for a local power source.

With an operating temperature range of -30°C to 75°C, the Vi3205 is the perfect solution for data and power transmission for aplications such as warehouses, parking lots, campuses, casinos. The Vi3205 is MegaPixel Certified (MPC™), type tested to network packet performance standards to assure you an error free and quality operation. Fixed managed L2 functions includes 802.1p QoS, support of 2k MAC addressing, learning, aging, and a non-blocking switch fabric.

The built-in PSE provides 802.3af/at up to 37W per port while providing all safety features of standard PoE. Installation cost savings, proven performance, and major camera manufacturer compatibility all go into making Vigitron’s MaxiiNet™ Vi3205 an ideal solution for IP video and PoE transmission.

Features

• 4-port fixed managed layer 2 PoE switch
• 5th port extended distance Coax uplink
• Transmits up to four cameras on a single coax
• The switch itself can be powered from a remote PoE source for up to 3,000 ft. when output PoE is not required
• Provides up to 37W PoE power per port
• Intelligent power sensing automatically allocates port power based on the number of connected ports and individual camera power requirements
• Automatic PoE port priority allocation
• Over current shut down protection if allocated PoE budget is exceeded
• Type tested to RFC 2544 TCP/IP network bandwidth packet transmission standards
• Hardened tested for -30°C to +75°C operating temperature range
• Complies with major IEEE standards and RFC network protocols for UTP, TCP/IP, HTTP/HTTPS
• Provides full Layer 2 network switch functionality
