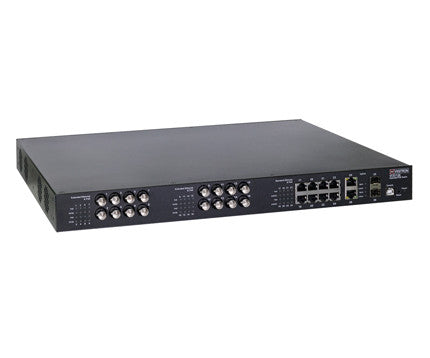

Vigitron Vi32126 26-Port MaxiiHybrid 10/100 PoE Switch, 16-Port

Vigitron’s Vi32126 is the next generation L2 managed switch designed for PoE+ and high bandwidth network applications, providing a

• High Power PoE Budget: Total 685W power supply with 550W PoE budget providing 24-ports at full 15.4 W (802.3af), 18-ports at full 30W (802.3at) with 15 ports at 36W and 65W at four non extended ports simultaneously
• With programmable PoE power up to 36W for extended coax ports and up to 65W up to standard ports, additional power is provided to handle camera surges and high powered PTZ domes with heaters and blowers
• Transient Protect™ determines the difference between the need from additional PoE power and potential damaging shorts providing extra power when required or shutting down port PoE to protect connected devices
• The 9Gbps switch fabric assures all required bandwidth, even with all ports at their maximum bandwidth to keep video and data quality
• Automatic connection, re-connection, and port monitoring with PoE application for more reliable start-ups and reducing downtime potentials
• Programmable multicasting for compatibility and performance with largest IP video network systems
• Programmable Rapid Spanning Tree for redundant network configuration assuring maintenance of network communication using multiple paths
• Automatic MAC address detection for connected devices for easy connection verification and security programming
• Programmable and auto detect MAC address binding limiting access for potential hacking
• Layer 2 network switch compliance
• Web filtering and MAC address binding provide a two stage protection against hacking
• SecurPortTM provides complete protection against ghosting when attempts are made to connect unauthorized devices by copying device MAC and IP addresses

Features

• Perfect, cost effective solution for converting existing analog systems to IP or adding UTP IP camera cable runs to existing analog systems
• 16 extended Coax ports/8 ports standard UTP and 2 uplink ports
• Provides 24 port high power PoE
• Transmit Data/Video and PoE up to distances of 2,000 feet (609m)
• 24 ports at 10/100Mbps, 2 shared fiber/copper Uplink ports @ 1000Mbps
• Two 1000Mbps indepdent Uplink ports allow for full use of all 24 ports
• SNMP for communicating error messaging to local computers
• Automatic IP and and PoE connection and reconnection
• Automatic programmable MAC identification for all connected devices
• Individual port MAC detection and binding for port security
• 685W total power supply, 550W PoE budget
• Programmable Web Access Filtering (WAF) to prevent unauthorized access
• Transient ProtectTM intelligent PoE sensing to prevent damage from short
• Intelligent Power Limit - automatically determines actual PoE power requirements
• Individual port and main power supply over current, over voltage, over temperature and short protection with automatic recovery
• Up to 36W per port for extended ports
• Provides 9G bytes fabric switching rate for handling largest megapixels IP cameras
• Programmable PoE up to 65W per port for non extended ports
• Programmable PoE up to 36W per port to handle camera start-up and power surge
• Individual port over current protection, monitoring and auto restart
• SecurPortTM provides individual port and complete switch protection against hacking and ghosting
