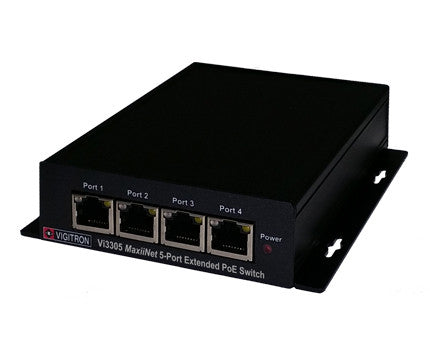

Vigitron Vi3305 5-Port MaxiiNet Extended UTP PoE Switch

Vigitron’s MaxiiNet™ Vi3305 fixed managed five port extended UTP PoE switch brings new performance standards to the growing need for high speed transmission of high speed Ethernet. It eliminates the need for local power for the cameras connected to its 4 ports at extended distances. The Vi3305 provides a 10/100Base-T and an SFP socket for fiber optic uplink.

The Vi3305 is powered locally by the Vi1120 to supply 802.3at to each port, providing up to 37W (more than 802.3at) to each port or up to 74W for two combined ports compensating for surge conditions and requirements for high powered PoE PTZ domes.The Vi3305 can operate over UTP at extended distances up to 3,000 feet (909m) when combined with the Vi2301A or Vi2300A.

With an operating temperature range of -30°C to 75°C, the Vi3305 is the perfect solution for data and power transmission for warehouses, parking lots, campuses, casinos, and many more. The Vi3305 is MegaPixel Certified (MPC™), type tested to network packet performance standards, and major manufacturer compatibility tested to assure you error free, quality operations. Fixed managed L2 functions include 802.1p Qos, support of 2k MAC addressing, learning, aging, and a non-blocking switch fabric.

Installation cost savings, proven performance, and major camera manufacturer compatibility all go into making Vigitron’s MaxiiNet™ Vi3305 an ideal solution for standard distance data and power transmission.

Features

• 5-port extended distance Ethernet over UTP Layer 2 PoE switch
• 4 extended UTP ports with PoE and IP video at distances up to 3,000 ft. (909m)
• Provides PoE power to the remote camera at extended distances when used with Vi2301A or Vi2300A and eliminates the need for local power source or power supplies
• Provides up to 37W PoE per port, capable of combing each 2-ports for up to 74W
• Provides MSA compliant SFP fiber output port for integration to existing fiber infrastructures and extreme long distance up to 80Km
• Provides PoE over current shut down protection
• Certified (MPC™) high data rate for virtual loss free transmission of cameras
• Type tested to RFC 2544 TCP/IP network bandwidth packet transmission standards
• Type tested for -30°C to +75°C operating temperature range
• Complies with major IEEE standards and RFC network protocols for UTP, TCP/IP, HTTP/HTTPS
• Provides full Layer 2 network switch functionality
