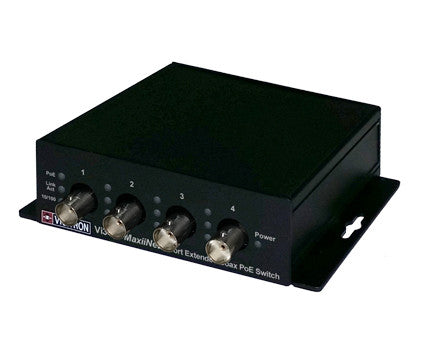

Vigitron Vi3405 5-Port MaxiiNet Extended Coax PoE Switch

Vigitron’s MaxiiNet™ Vi3405 fixed managed five port extended Coax PoE switch brings new performance standards to the growing need for high speed transmission of high speed Ethernet. It eliminates the need for local power for the cameras connected to its 4 ports at extended distances. The Vi3405 provides a 100Base-T and an SFP socket for fiber optic uplink.

The Vi3405 is powered locally by the Vi1120 to supply 802.3at to each port, providing up to 37W (802.3at) to each port. The Vi3405 can operate over Coax cables at extended distances up to 1,800 feet (548m) when combined with the Vi2401A or Vi2400A.

With an operating temperature range of -30°C to 75°C, the Vi3405 is the perfect solution for data and power transmission for warehouses, parking lots, campuses, casinos, and many more. The Vi3405 is MegaPixel Certified (MPC™), type tested to network packet performance standards, and major manufacturer compatibility tested to assure you error free, quality operations. Fixed managed L2 functions include 802.1p Qos, support of 2k MAC addressing, learning, aging, and a non-blocking switch fabric.

Installation cost savings, proven performance, and major camera manufacturer compatibility all go into making Vigitron’s MaxiiNet™ Vi3405 an ideal solution for standard distance data and power transmission.

Features

• 5-port extended distance Ethernet over coax Layer 2 PoE switch
• 4 extended Coax ports with PoE and IP video at extend distances up to 1800 ft. (548m)
• Provides PoE power at the camera site without the need for local power source or power supply at extended distances when used with Vi2401A or Vi2400A
• Provides up to 37W PoE per port
• Provides MSA compliant SFP fiber output port for integration to existing fiber infrastructures and extreme long distance up to 80Km
• Automatic PoE port priority allocation and power management
• Provides over current shut down protection
• Certified (MPC™) high data rate for virtual loss free transmission of cameras
• Type tested to RFC 2544 TCP/IP network bandwidth packet transmission standards
• Type tested for -30°C to +75°C operating temperature range
• Complies with major IEEE standards and RFC network protocols for UTP, TCP/IP, HTTP/HTTPS
• Provides full Layer 2 network switch functionality
