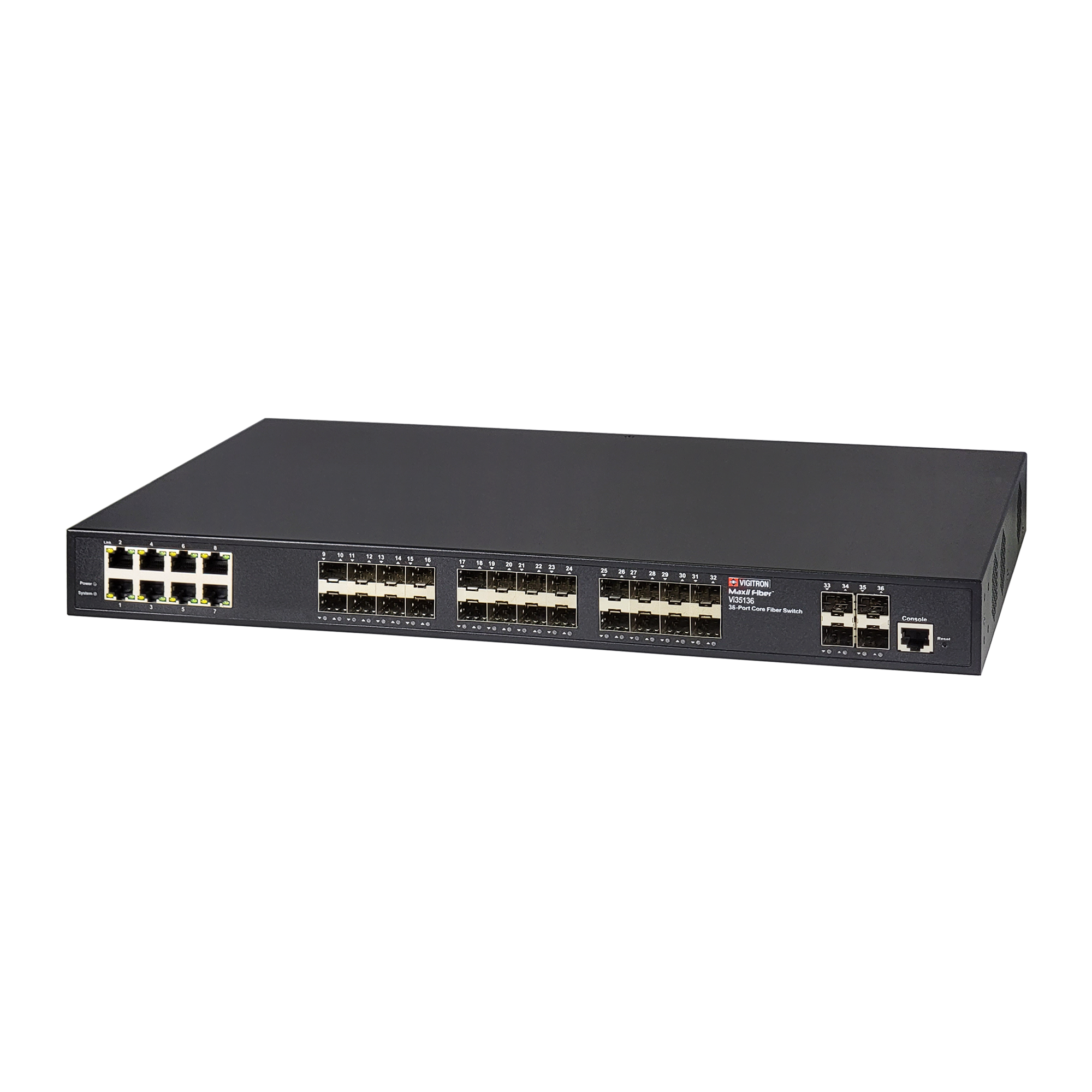

Vigitron Vi35136 36-Port MaxiiNet™ L2+/L3 Hybrid Fiber Network Switch, 24x1G Fiber, 8x1G UTP Ports, 4x1G/2.5G/10G fiber uplink

• Hybrid Ethernet Copper and Fiber connections.
• (8) 10/100/1000Mbps RJ45 Copper ports.
• (24) 100/10000Mbps Fiber SFP Ports.
• (4) 1G/2.5G/10G SFP uplink ports.
• 36 independent ports.
• Dual AC power input for built in back up.
• Full Layer 2+ and Layer 3 lite static routing.
• Jumbo Frame handling up to 10,240 bytes, even at 100Mbps.
• G.8032 V1/V2 standard ring protocol.
• Wide band 144Gbps switch fabric.
• Thermal protection port temperature settings.
• Individual port +/-8kV contact discharge and +/-15KV air discharge.
• Uses MSA compliant standard SFP to any fiber configuration.
• Easy to use GUI for set-up and operations.
• Port security with limit control configuration.

Vigitron’s Vi35136 is a next-generation enterprise-level fiber switch providing 24 MSA-compliant fiber ports with 4 combination fiber/copper ports. Focusing on the network and port security, Layer 2+ provides all of the features required for Vigitron’s Vi35136 is a next-generation enterprise-level hybrid copper and fiber core switch providing 24 MSA compliant fiber ports, 8 ports of10/100/1000Mbps UTP copper, and 4 ports of fiber 1G/2.5G/10G. Individual copper ports have built-in surge protection. Focusing on the network and port security, Layer 2+ provides all of the features required for network operation while each port is programmed with an individual MAC address, allowing for secured Layer 3 signal routing without any exposure to outside unsecured access. Jumbo frames can be programmed at 100Mbps for direct connection to the cameras and most IP security devices, reducing the potential for data loss while providing the ability to handle the largest megapixel cameras. Each port can be configured for individual and different subnet VLANs. The system Syslog provides detailed performance data. The Vi35136 is the perfect hybrid UTP/Fiber core switch solution for connecting up to 24 fiber network cables to a single location.

The Vi35136 is designed to meet the growing requirements for higher bandwidth for IP security cameras by providing reliability and connectivity with the ability to locate and identify network system problems:

• Layer 3 lite operations for operations across different subnets while maintaining network security
• Programmable video/data packet transmission up to the Jumbo Frame limit of 10240 bytes for transmitting the highest megapixel cameras at 100Mbps, 1, 2.5G, and 10G port speeds
• Wide 144 Gbps switch fabric assuring all required bandwidth, even with all ports at their maximum bandwidth assuring video and data quality
• Dual AC power input for lossless backup
• Programmable G.8032 standard ring protocol
• Programmable multicasting for compatibility and performance with the largest IP video network systems
• Programmable Rapid Spanning Tree for redundant network configuration assuring maintenance of network communication using multiple paths
• Ability to use ICMP, TCP, and UDP packet transmission to test network connectivity through multiple hops
• Automatic MAC address detection for connected devices for easy connection verification and security hops
• Complete SFP read-out for units containing DDMI capacity
