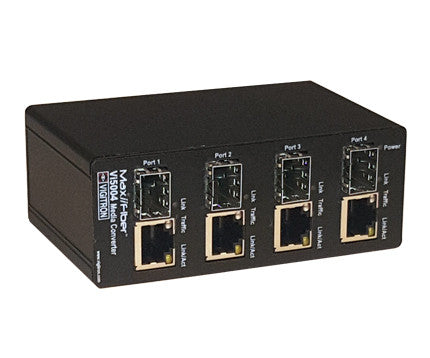

Vigitron Vi5004 4-Port MaxiiFiber 10/100 Ethernet Media Converter,

Vigitron’s Vi5004 is a 4-port media convertor that enables Ethernet signals to be transmitted over fiber optic cables. It uses SFP fiber modules that results in compatibility with all major single and multimode fiber optics cables. When connected to the Vi5001 with appropriate power supply such as Vi0017, up to 30W PoE can be provided to the cameras.

The Vi5004 is an ideal solution for converting existing analog fiber infrastructures to IP systems. It provides a unique, reliable, and cost effective solution to meet a wide variety of application requirements.

The Vi5000R is a rackmount adapter that can fit up to four Vi5004s to provide a 16-port rackmount media converter.

Features

• Provides 4 channels in a single chassis for easy installation
• Convert network switch copper ports to fiber
• Simple method for increasing the capacity of network switches to provide additional fiber ports
• Single +12V power supply to simply installation
• Interfaces with all MSA compliant SFP most commonly installed fiber
• Transmits Jumbo Frames up to 9,600 bytes for handling the largest Megapixel cameras
• Extended temperature operation up to -30°C to +85°C
• Combine with Vi5000R for up to 16 channels rack mounting
• Combine with Vi3005 to create a 4 channel layer 2 fiber switch
