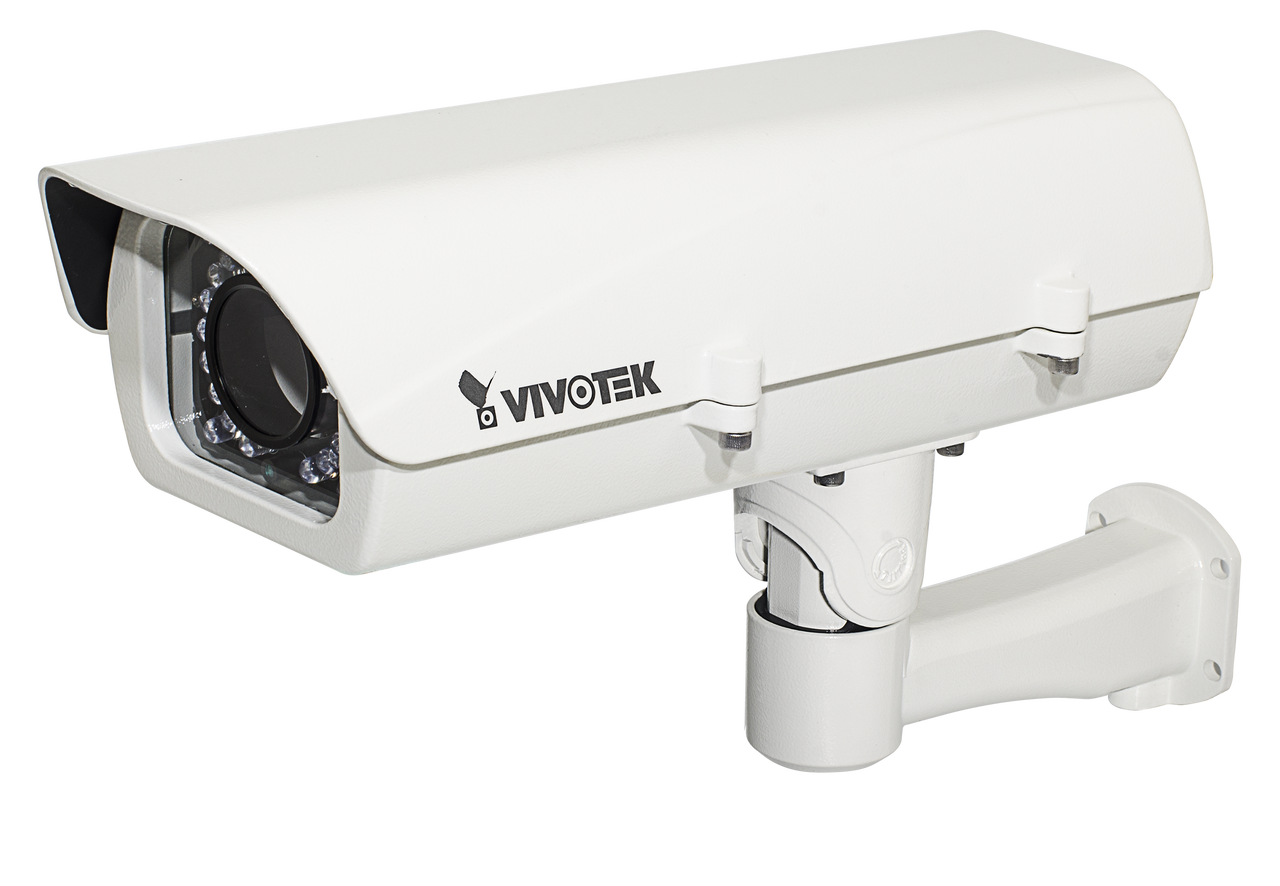

Vivotek AE-242 Camera Enclosure with Internal IR and UPoE Module
Discontinued - Recommended Replacement: N/A
Vivotek AE-242 Camera Enclosure with Internal IR and UPoE Module
- Supported Models IP8155HP, IP8165HP, IP816A-HP
- Viewing Window Tempered glass
- Construction Die Casting Al-alloy
- Latch Dual side locking by screw
- Camera Mounting Removable camera metal sled
- IR 15° 50M
- Window Heater Always on
- Double Heater 15°C on, 25°C Off
- Fan On/Off 35°C On, 25°C Off
- Camera Power On Double heater is on at -40°C, and the camera is powered on when temperature reaches -10°C
- Coating White epoxy powder coating
- Casing Weather-proof IP66-rated housing
- Vandal-proof IK10-rated metal housing
- Operating Temperature -40°C ~ 50°C (-40°F ~ 122°F)
- External Dimensions 462.7 (L) x 171 (W) x 256 (H) mm
- Weight Net: 2800g (with bracket)
- Included Accessories: Wall bracket, installation guide, screw kit
- Power Input: 60W UPoE (Power supply not included. We recommend the AW-IHU-0100, available separately)
- Non-returnable and Non-cancellable once the order is placed
- ETA up to 4 weeks, item ships directly from Vivotek
Vivotek AE-242 Camera Enclosure Overview
VIVOTEK AE-242 is an outdoor enclosure with UPoE power input, allowing single-cable installation with the PoE camera for a maximum 60 W power supply. In addition, built-in IR LEDs enable it to provide enough illumination for clear viewing up to 50 meters, even in completely dark environments. What's more, the AE-242 supports the active temperature control, allowing the cameras to start up even at -40 °C (-40 °F), extremely cold weather. Featureing IP66-rated weatherproof and IK10-rated vandal-proof housing protect the enclosure to withstand rain and dust and vandal act and impact.
