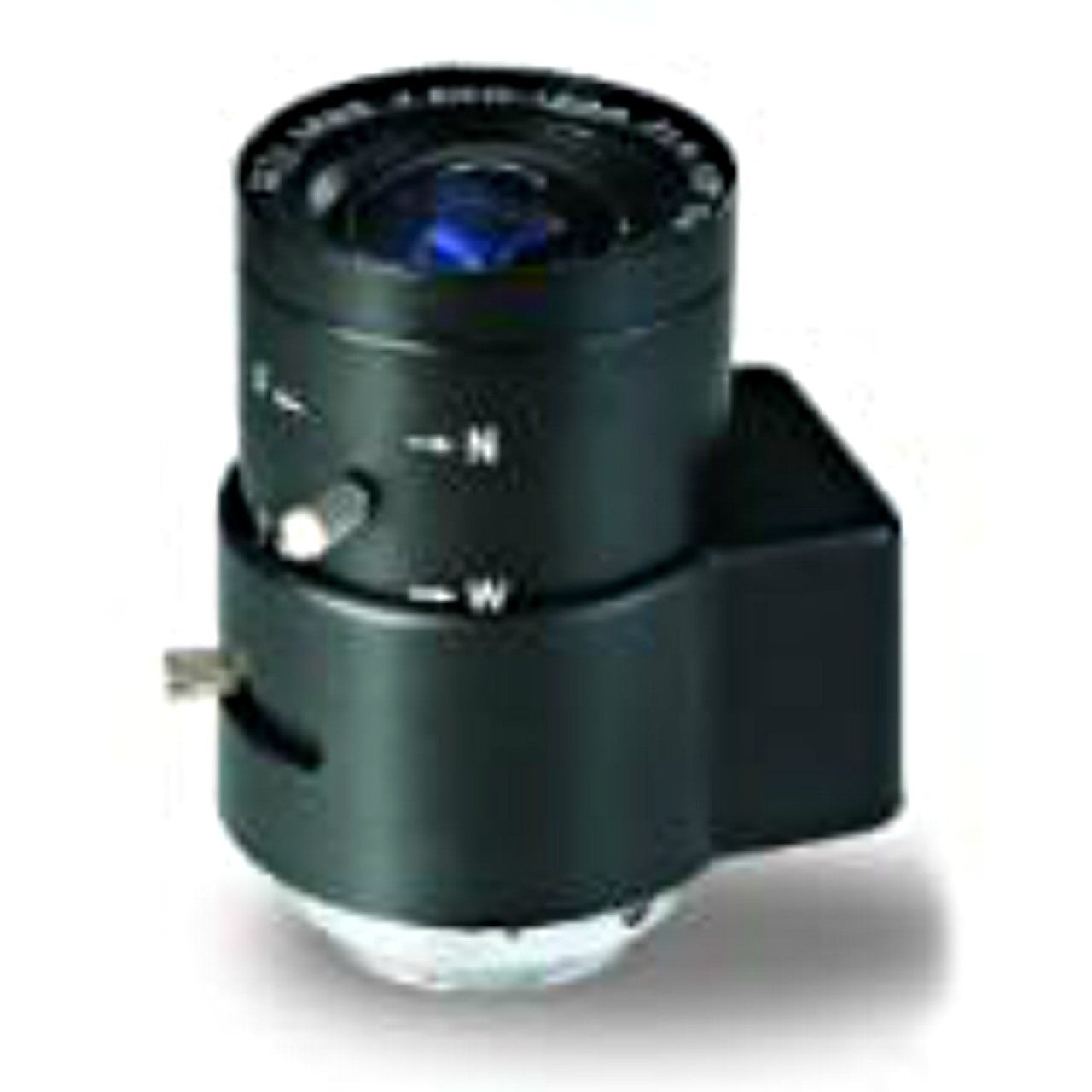

Vivotek AL-241 3.1-8m P-Iris Varifocal Lens
Vivotek AL-241 3.1-8m P-Iris Varifocal Lens

Vivotek

Vivotek AL-241 3.1-8m P-Iris Varifocal Lens

Sale price$0.00
Discontinued
SKU: AL-241

Contact

Vivotek AL-241 Features

  • Inner dimension: Ø: 37 Length: 60 (mm)
  • Format: 1/2.7"
  • Mount Type: CS
  • P-Iris
  • Focal Length; 3.1 mm ~ 8 mm
  • Back Focus(in air): 7.8 mm
  • Angel of View: 1/2.7type(16:9) - 123.1°~48.3°(D) 105.4°~42.2°(H) 57.9°~23.8°(V) 1/2.7type(4:3) - 123.1°~48.3°(D) 95.9°~38.7°(H) 71.0°~29.1°(V), 1/3type(4:3) - 110.3°~43.9°(D) 86.7°~35.2°(H) 64.4°~26.5°(V)
  • F number: F1.2 ~ F16C
  • Max.Image Format: 5.8mm x 3.2mm (Ø 6.6mm)
  • Min.Objective Distance: 30cm from front Lens
  • Flange Back Length: 12.5mm
  • Effective Lens Aperture: Front Ø 20.9mm & Rear Ø 10.5mm
  • Optical compensation design: 2.0mm
  • Weight: 57 g
