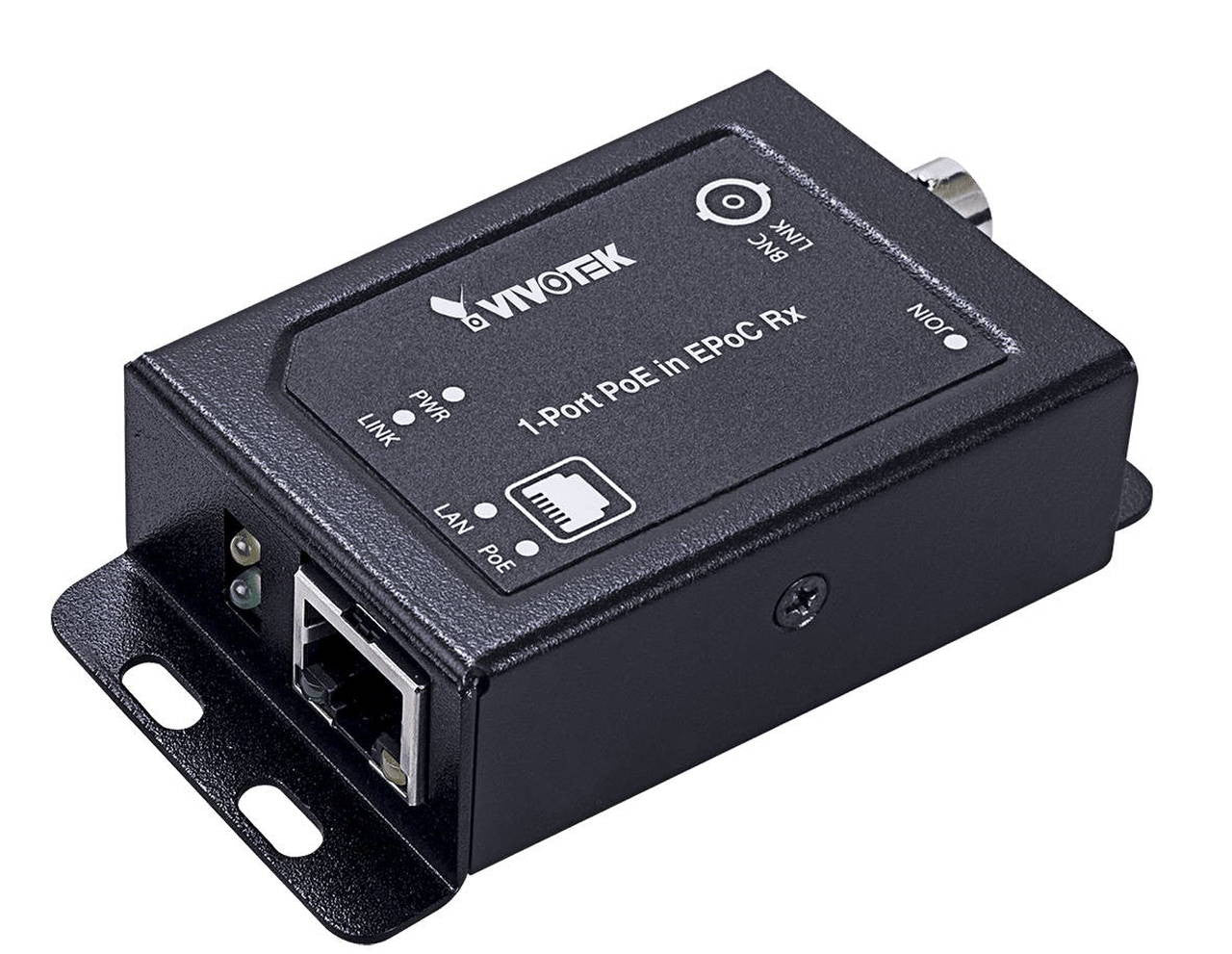

Vivotek AP-FEX-0100-R 1 Port EPoC PoE in Rx Module
Discontinued - Recommended Replacement: AP-FEX-0105-R
Vivotek AP-FEX-0100-R Features
Model: AP-FEX-0100-R
Product Description: 1 Port EPoC PoE in Rx Module
BNC Port (75Ω): 1
Ethernet Port: 1 x 10/100Mbps RJ45
Transmission Mode: Rx
Max. PoE Distance (RG6): 1.2km/8W
Max. Ethernet Distance (RG6): 2.4 km
Power Input: PoE input up to 95w
Power Consumption: 2W
PoE Standard: 802.3 at/af
Dimensions: 85.4 (D) x 47.1 (W) x 23 (H) mm
Weight: 0.2kg (0.44lb)
Operating Temperature: -20˚C ~ 60˚C ( -4˚F ~ 140˚F)
Storage Temperature: -20˚C ~ 85˚C ( -4˚F ~ 185˚F)
Operating Humidity: 5% ~ 95% non-condensing
Safety Certifications: CE, FCC, VCCI, LVD
Note: VIVOTEK's EPoC Rx modules are only compatible with EPoC Tx modules.
Vivotek AP-FEX-0100-R Overview
The EPoC (Ethernet & Power over Coaxial) line is a long-range solution providing Fast Ethernet and Power over RG6 coaxial cables up to 1200m for IP cameras. This product line is the best solution for transforming CCTV to IP cameras without needing to change legacy RG59 cables, thereby saving on wiring costs.
Additionally, EPoC transmits both power and data to IP cameras whereas fiber solutions only provide data.
