Vivotek AP-FEX-0105-T 1 Port EPoC Rx Module
Network Camera Store is an Authorized Vivotek Reseller
EPoC Solution Kit

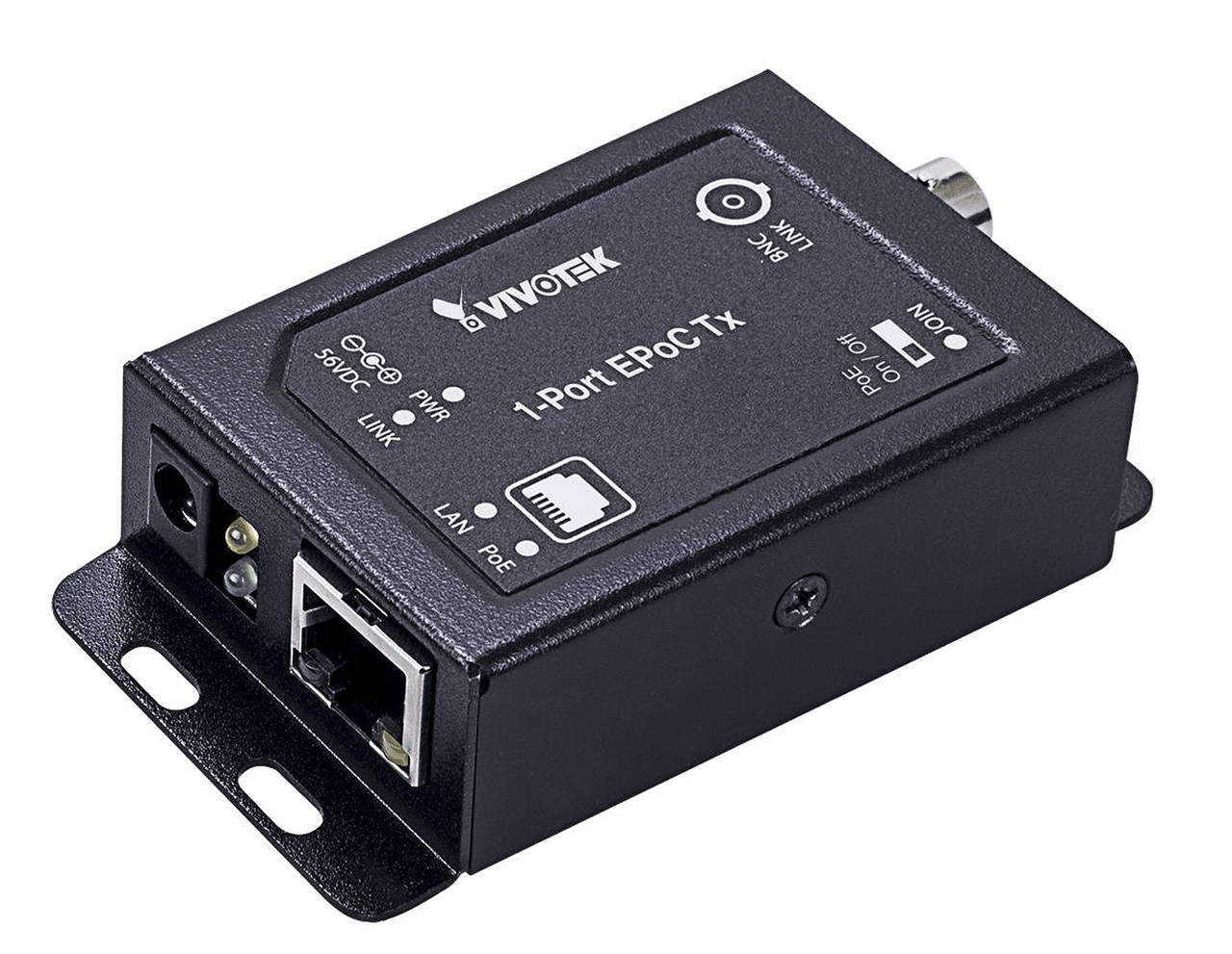

Vivotek AP-FEX-0105-T 1 Port EPoC Tx Module

Vivotek

Vivotek AP-FEX-0105-T 1 Port EPoC Tx Module

Sale price$150.00
Discontinued
SKU: AP-FEX-0105-T

Contact

Discontinued - Suggested Replacement AP-FEX-0106-T

Vivotek AP-FEX-0105-T Features

Model: AP-FEX-0105-T
Product Description: 1 Port EPoC Tx Module
BNC Port (75Ω): 1
Ethernet Port: 1 x 10/100Mbps RJ45
DC Jack: 1
PoE on/off switch: 1
Transmission Mode: Tx
Max. PoE Distance (RG6): 1.2km/8W
Max. Ethernet Distance (RG6): 2.4 km
Power Input: DC 56V
Power Consumption: 2W
PoE Standard: 802.3 at/af
Dimensions: 85.4 (D) x 47.1 (W) x 23 (H) mm
Weight: 0.2kg (0.44lb)
Operating Temperature: -20˚C ~ 60˚C ( -4˚F ~ 140˚F)
Storage Temperature: -20˚C ~ 85˚C ( -4˚F ~ 185˚F)
Operating Humidity: 5% ~ 95% non-condensing
Safety Certifications: CE, FCC, VCCI, LVD

Note: VIVOTEK's EPoC Rx modules are only compatible with EPoC Tx modules.

Vivotek AP-FEX-0105-T Overview

The EPoC (Ethernet & Power over Coaxial) line is a long-range solution providing Fast Ethernet and Power over RG6 coaxial cables up to 1200m for IP cameras. This product line is the best solution for transforming CCTV to IP cameras without needing to change legacy RG59 cables, thereby saving on wiring costs.
Additionally, EPoC transmits both power and data to IP cameras whereas fiber solutions only provide data.
