Vivotek

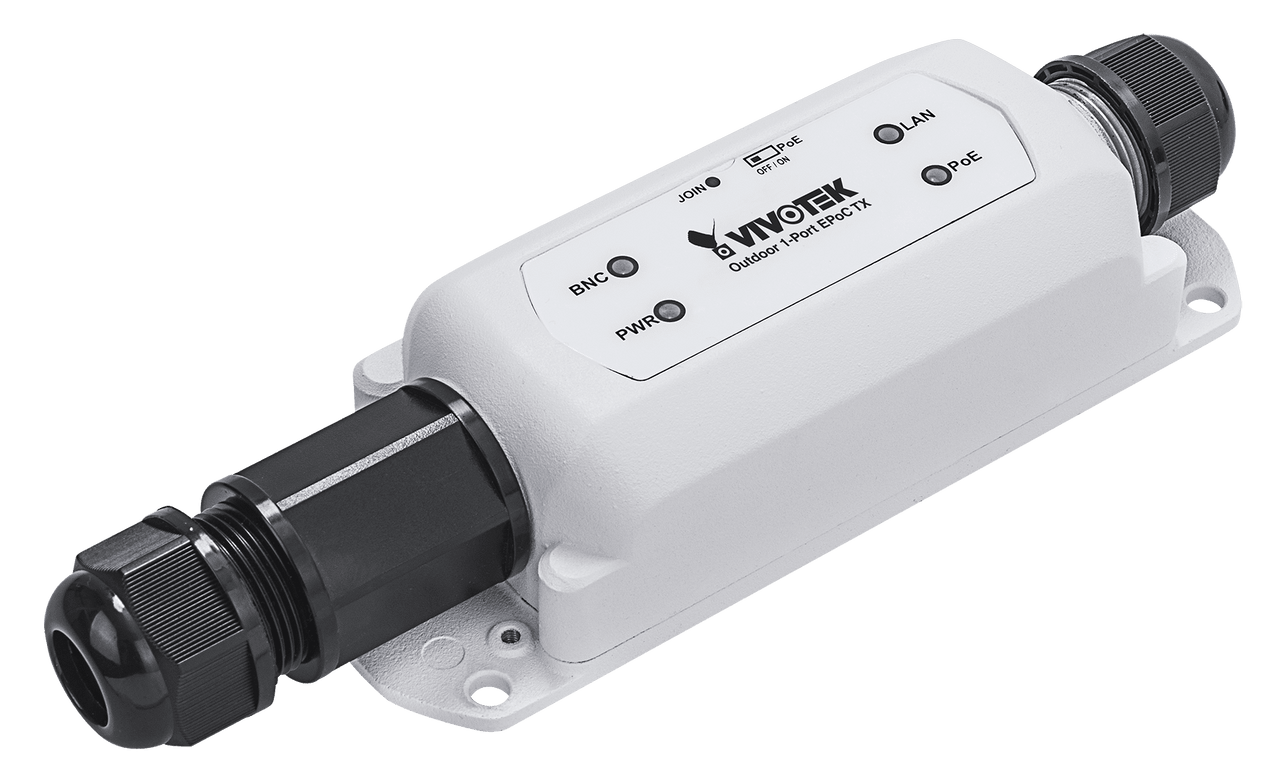

Vivotek AP-FEX-0150-T Outdoor 1 Port EPoC Tx Module
Discontinued - Recommended Replacement: N/A
Vivotek AP-FEX-0150-T Features
Model: AP-FEX-0150-T
Product Description: Outdoor 1 Port EPoC Tx Module
BNC Port (75Ω): 1
Ethernet Port: 1
PoE on/off switch: 1
Transmission Mode: Tx
Max. PoE Distance (RG6): 1.2 km/7.5W
Max. Ethernet Distance (RG6): 2.4 km
Power Input: DC 56V
Power Consumption: 3W
PoE Standard: 802.3 at/af
BNC Surge Protection: 6KV
Water Proof: IP67
Vandal Proof: IK10
Dimensions: 194 (D) x 56 (W) x 40 (H) mm
Weight: 0.3 kg (0.66lb)
Operating Temperature: -30˚C ~ 60˚C ( -22˚F ~ 140˚F)
Storage Temperature: -40˚C ~ 85˚C ( -40˚F ~ 185˚F)
Operating Humidity: 5% ~ 95% non-condensing
Safety Certifications: CE, FCC, VCCI
Vivotek AP-FEX-0150-T Overview
The EPoC (Ethernet & Power over Coaxial) line is a long-range solution providing Fast Ethernet and Power over RG6 coaxial cables up to 1200m for IP cameras. This outdoor product line is the best solution for transforming CCTV to IP cameras without needing to change legacy RG59 cables, thereby saving on wiring costs. Additionally, EPoC transmits both power and data to IP cameras whereas fiber solutions only provide data.
