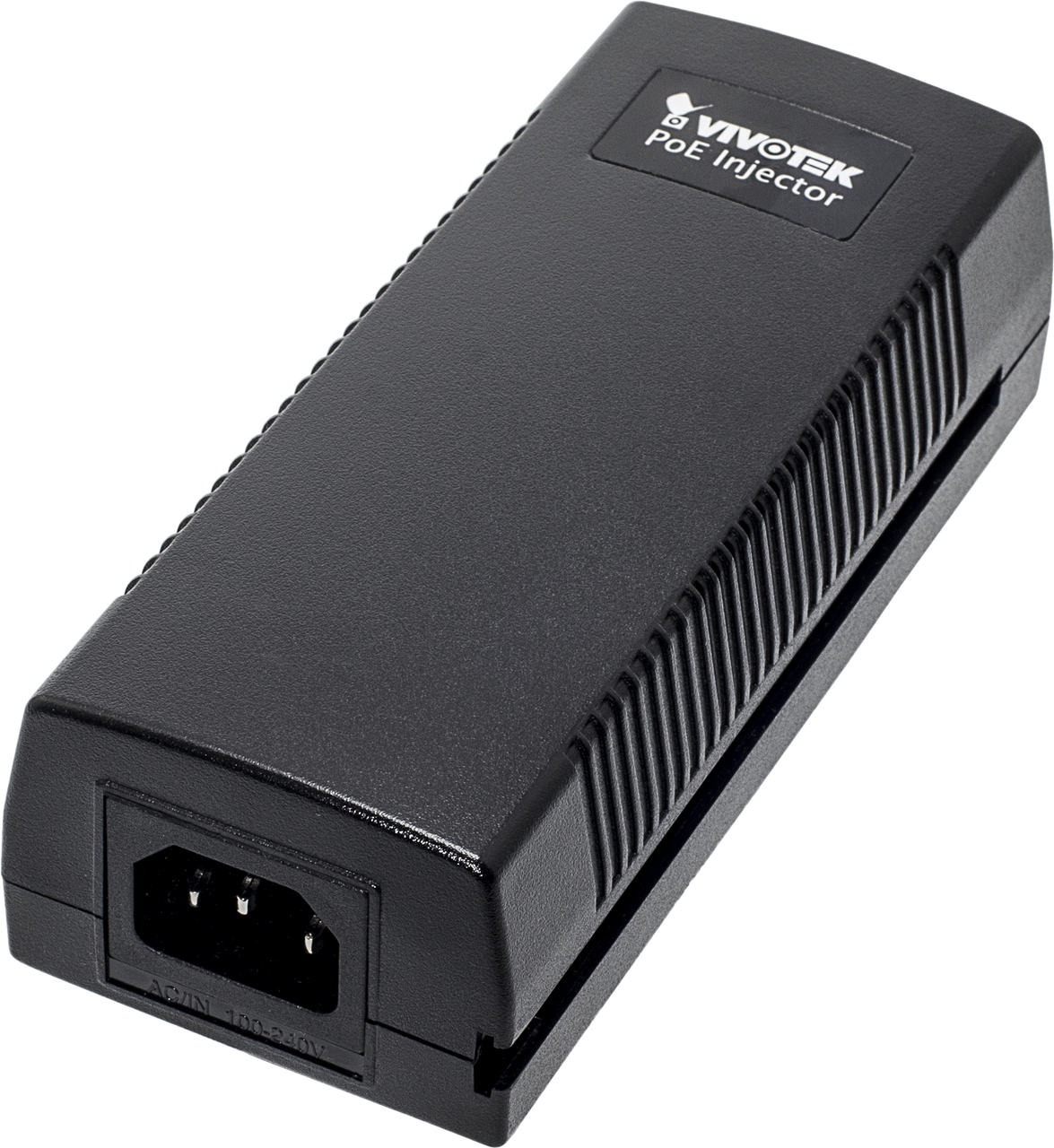

Vivotek AP-FIC-010A-015 1xFE IEEE802.3af PoE Injector
Vivotek AP-FIC-010A-015 1xFE IEEE802.3af PoE Injector

Vivotek

Vivotek AP-FIC-010A-015 1xFE IEEE802.3af PoE Injector

$35.00
Discontinued
SKU: AP-FIC-010A-015

Discontinued - Recommended Replacement: N/A

Link to Manufacturer's Page

Contact

Vivotek AW-FED-0500-065 Features

Hardware Specifications

  • Ethernet Ports: 1 x Fast Ethernet (RJ45)
  • PoE Ports: 1
  • Resolution: Megapixel/D1/VGA
  • Compression: MJPEG/MPEG-4/H.264/H.265
  • Compatible Cameras: VIVOTEK Network Cameras
  • Power Requirement: 100~240VAC / 50~60Hz
  • Power Consumption: 19W
  • Dimensions: 146 (L) x 64 (W) x 42 (H) mm
  • Weight: 0.2 kg
  • Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) with 10~90% RH (Non-condensing)
  • What's Included: Power cord, power adapter, QIG
  • Warranty: 2 years

Power over Ethernet Specifications

  • Filtering/Forwarding Rates: 10Mbps/100Mbps
  • Per Port PoE Power Output: 54VDC/15.4W
  • Total PoE Power Budget: 54VDC/15.4W
  • Power Pin Assignments: 1/2(+), 3/6(-
  • Regulation Compliance: CE, C-Tick, FCC, VCCI, LVD
  • Standards Compliance: IEEE 802.3 10-BASE-T (Ethernet), IEEE 802.3u 100-BASE-TX (Fast Ethernet), IEEE 802.3af Power over Ethernet
