Vivotek AP-FXC-0100

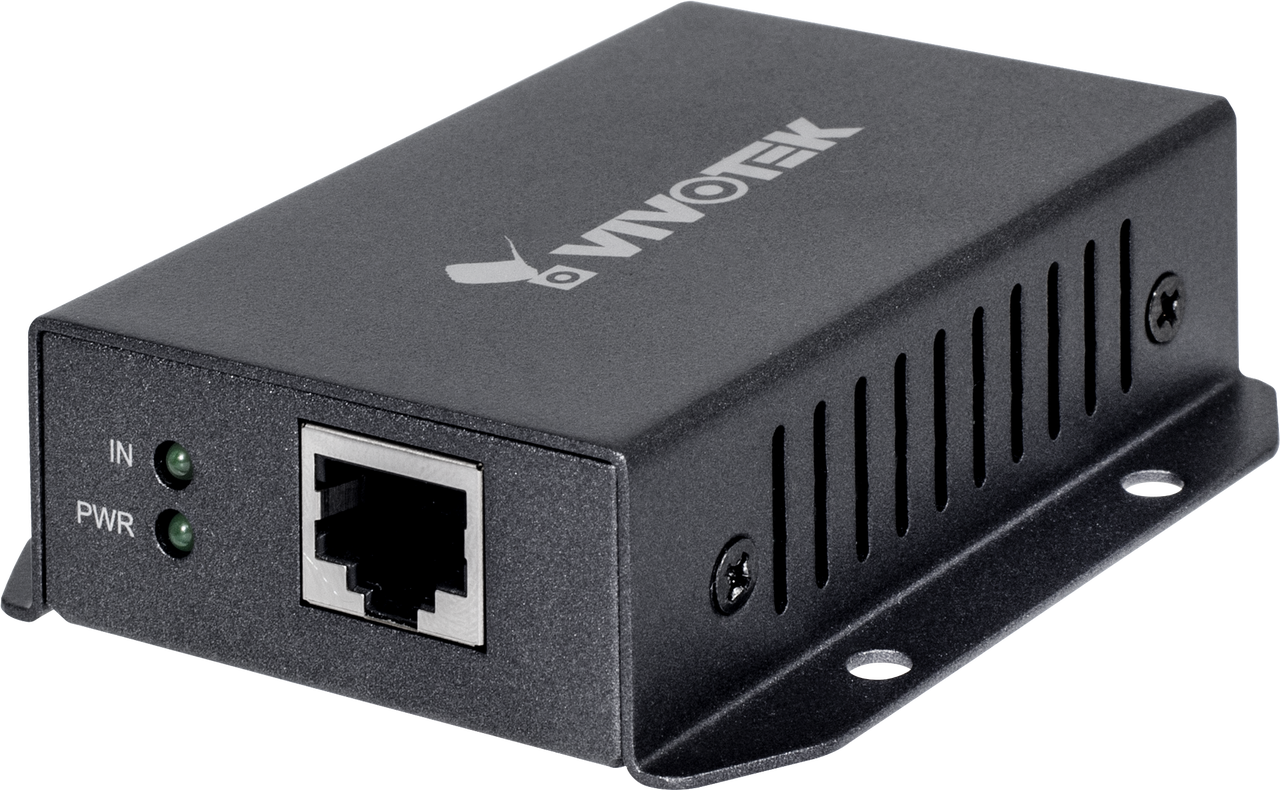

Vivotek AP-FXC-0100 1 Port PoE Extender

Vivotek

Vivotek AP-FXC-0100 1 Port PoE Extender

$90.00
Discontinued
SKU: AP-FXC-0100

Discontinued - Recommended Replacement: AP-FXC-0110

Link to Manufacturer's Page

Contact

Vivotek AP-FXC-0100 Features

Hardware Specifications

  • Ethernet Ports: 2 x RJ45 Fast Ethernet Ports
  • PoE Ports: 2
  • Resolution: Megapixel/D1/VGA
  • Compression: MJPEG/MPEG-4/H.264/H.265
  • Compatible Cameras: VIVOTEK IEEE 802.3af Network Cameras (FD8381-EV, IB8381-E, FE8181/81V, FE8391 excluded)
  • Power Requirement: N/A
  • Power Consumption: N/A
  • LED Display: Power, IN, OUT
  • Dimensions: 80 (L) x 52 (W) x 23 (H) mm
  • Weight: .16 kg (.35 lbs)
  • Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) with 10~90% RH (Non-condensing)
  • What's Included: QIG, screw
  • Warranty: 2 Years

Power over Ethernet Specifications

  • Filtering/Forwarding Rates: 10Mbps, 100Mbps
  • Switch Throughput: N/A
  • PoE Power Output: 12-48W
  • Total PoE Power Budget: N/A
  • Transmission Method: Store & forward
  • PoE Power Supply Type: N/A
  • Power Pin Assignments: 4/5(+), 7/8(-)
  • Regulation Compliance: CE, C-Tick, FCC, VCCI
  • Standards Compliance: IEEE 802.3 10-BASE-T (Ethernet), IEEE 802.3u 100-BASE-TX (Fast Ethernet), IEEE 802.3x Flow Control (Full-Duplex Flow Control), IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus
