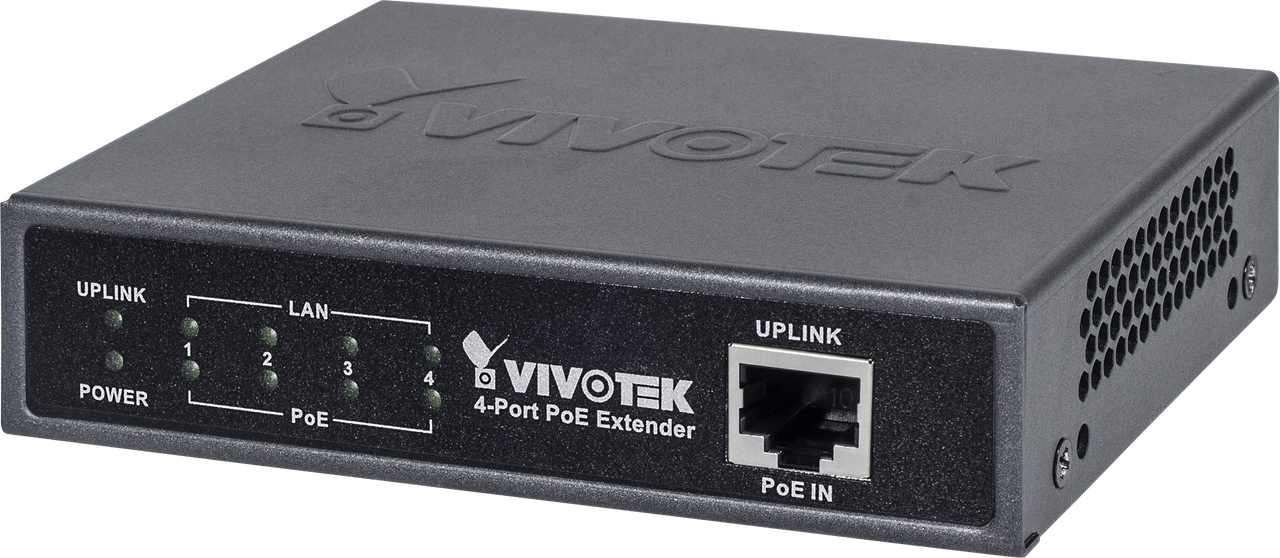

Vivotek AP-FXC-0400 4-Port PoE Extender

Vivotek AP-FXC-0400 Features

Hardware Specifications

• Ethernet Ports: 5 x RJ45 Fast Ethernet Ports
• PoE Ports: 4

• Resolution: Megapixel/D1/VGA
• Compression: MJPEG/MPEG-4/H.264/H.265
• Compatible Cameras: VIVOTEK IEEE 802.3af Network Cameras

• Power Requirement: N/A
• Power Consumption: N/A

• LED Display: Power, PoE PD IN, PoEx4, LAN x4
• Dimensions: 120 (L) x 90 (W) x 28 (H) mm
• Weight: .4 kg (.88 lbs)
• Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) with 10~90% (Non-condensing)
• What's Included: QIG, screw
• Warranty: 2 Years

Power over Ethernet Specifications

• Filtering/Forwarding Rates: 10Mbps, 100Mbps
• Switch Throughput: N/A
• PoE Power Output: 45-55VDC
• Total PoE Power Budget: N/A
• Transmission Method: Store & forward
• PoE Power Supply Type: N/A

• Power Pin Assignments: 1/2 (+), 3/6 (-)
• Regulation Compliance: CE, C-Tick, FCC, VCCI
• Standards Compliance: IEEE 802.3 10-BASE-T (Ethernet), IEEE 802.3u 100-BASE-TX (Fast Ethernet), IEEE 802.3x Flow Control (Full-Duplex Flow Control), IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus
