Vivotek AP-GIC-010A-095

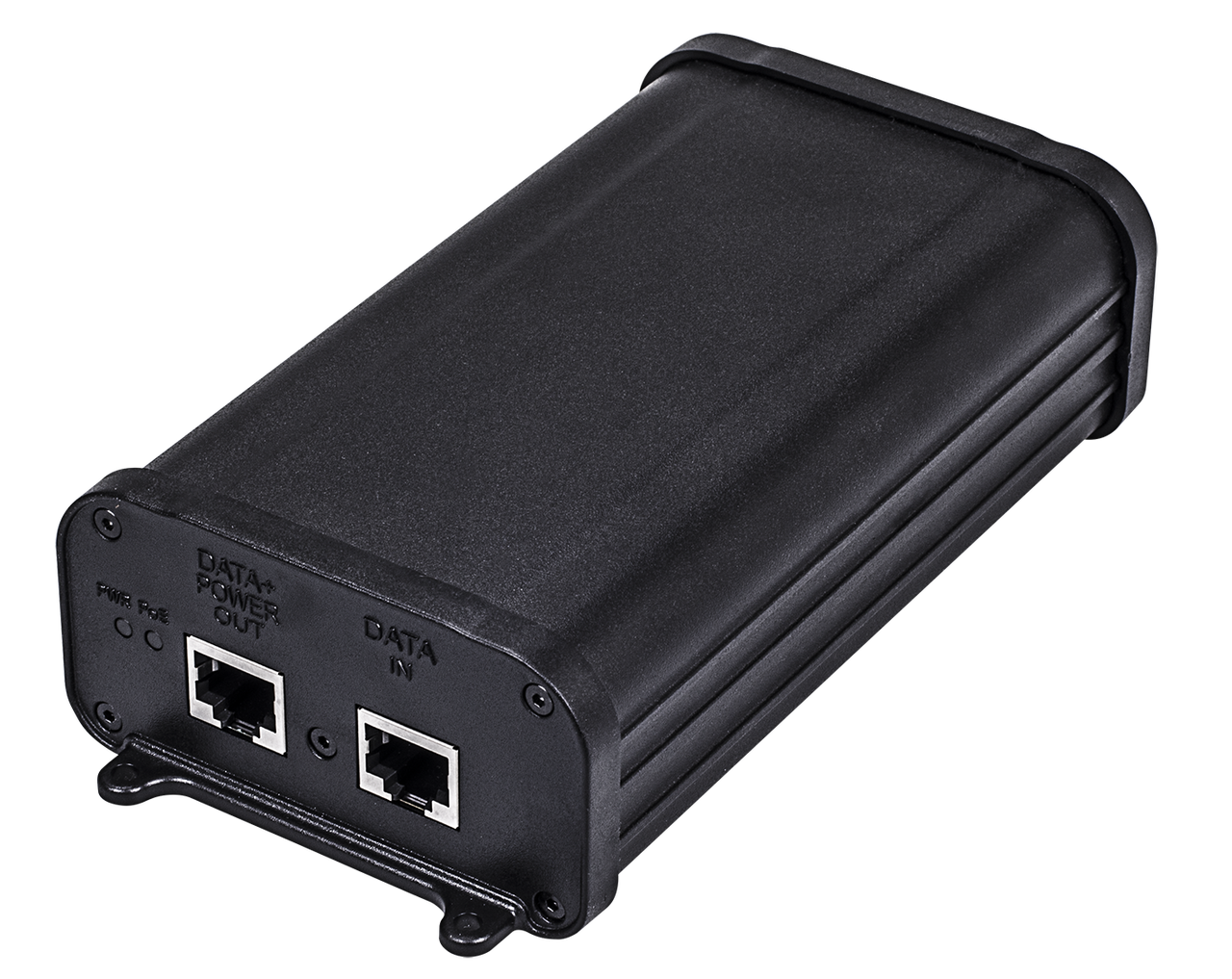

Vivotek AP-GIC-010A-095 1xGE 95W PoH/PoE Injector

Vivotek

Vivotek AP-GIC-010A-095 1xGE 95W PoH/PoE Injector

$147.00
Discontinued
SKU: AP-GIC-010A-095
Link to Manufacturer's Page

Contact

Discontinued; replaced by the AP-GIC-011A-095.

Vivotek AP-GIC-010A-095 Features

Hardware Specifications

  • Ethernet Ports: 1 x Gigabit Ethernet (RJ45)
  • PoE Ports: 1
  • Resolution: Megapixel/D1/VGA
  • Compression: MJPEG/MPEG-4/H.264/H.265
  • Compatible Cameras: Outdoor Enclosures: AE-241, AE-242; VIVOTEK IEEE 802.3at / 60W UPoE / 95W PoH/ PoE Network Cameras
  • Power Requirement: 100~240VAC / 50~60Hz
  • Power Consumption: 100W
  • Dimensions: 153 (L) x 84 (W) x 44 (H) mm
  • Weight: 0.4 kg
  • Operating Temperature: -20°C ~ 30°C (-4°F ~ 86°F) @ 95W, -20°C ~ 40°C (-4°F ~ 104°F) @ 80W, -20°C ~ 50°C (-4°F ~ 122°F) @ 70W; 10~90% (Non-condensing)
  • What's Included: Power cord, QIG
  • Warranty: 2 years

Power over Ethernet Specifications

  • Filtering/Forwarding Rates: 10Mbps/100Mbps/1000Mbps
  • Per Port PoE Power Output: 54VDC/95W
  • Total PoE Power Budget: 54VDC/95W
  • Power Pin Assignments: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • Regulation Compliance: CE, C-Tick, FCC, VCCI, LVD
  • Standards Compliance: IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet), IEEE 802.3 10-BASE-T (Ethernet), IEEE 802.3u 100-BASE-TX (Fast Ethernet), IEEE 802.3at Power over Ethernet
