Vivotek AP-GIC-011A-095

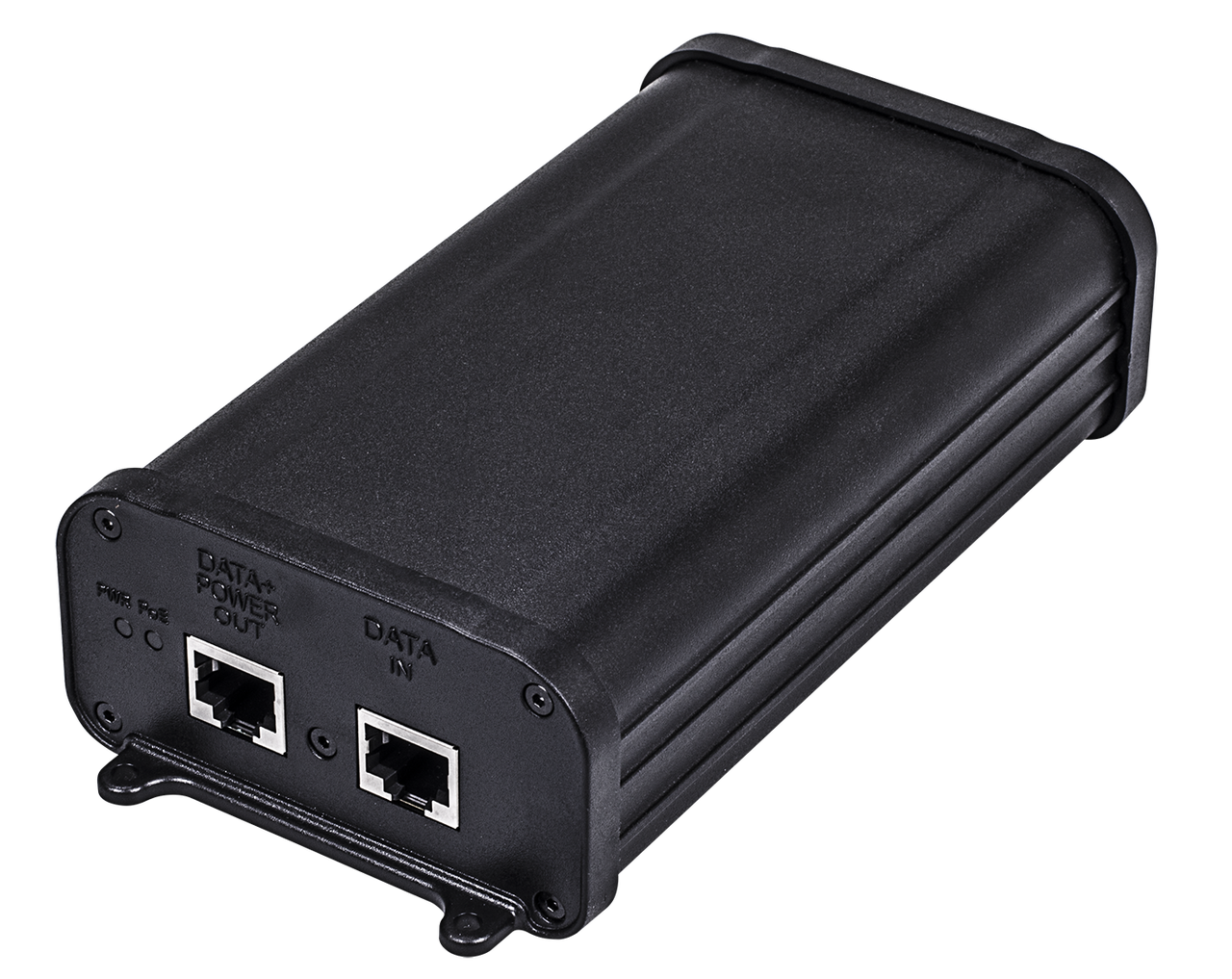

Vivotek AP-GIC-011A-095 Indoor 95W PoH/PoE Injector with Surge Protection

Vivotek

Vivotek AP-GIC-011A-095 Indoor 95W PoH/PoE Injector with Surge Protection

Sale price$147.00
Discontinued
SKU: AP-GIC-011A-095

Discontinued - Recommended Replacement: AP-GIC-011B-095

Contact

Discontinued - Replaced with AP-GIC-011B-090

Vivotek AP-GIC-011A-095 Features

  • Ethernet
    Gigabit Ethernet 10/100/1000Mbps (RJ45) 1
  • Standards
    IEEE 802.3 10-BASE-T (Ethernet) Supported
    IEEE 802.3u 100-BASE-TX (Fast Ethernet) Supported
    IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet) Supported
    IEEE 802.3at Power over Ethernet Supported
  • Transmission Media
    10Base T Cat. 3, 4, 5 UTP/STP
    100Base TX Cat. 5, 5e UTP/STP
    1000Base T Cat. 5e, 6, 7 UTP/STP
  • PoE Function
    Number of PoE Out Ports 1
    Max. PoE Output Power/ per Port 54VDC/95W
    802.3at Standard Compatible Yes
    Over Current Protection Supported
    Circuit Shorting Protection Supported
    Total PoE Power Budget 95W
    Power Pin Assignment 1/2(-), 3/6(+), 4/5(+), 7/8(-)
    PoE PD Auto Detection Supported
  • General
    LED Indicators Power, PoE
    Power Input 100~240VAC/50~60Hz
    Power Consumption 100W
    Surge Protection Data/PoE port 12KV
    Surge Protection AC Power 4KV
    Dimensions 182 (L) x 78.6 (W) x 41.9 (H) mm
    Weight 0.58 kg
    Operating Temperature -20°C ~ 30°C (-4°F ~ 86°F) @ 95W, -20°C ~ 40°C (-4°F ~ 104°F) @ 80W, -20°C ~ 50°C (-4°F ~ 122°F) @ 70W
    Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
    Humidity Operating: 10~90% (Non-condensing)
    Storage: 10~90% (Non-condensing)
    Safety Certifications CE, C-Tick, FCC, VCCI, LVD
  • Accessory
    Included Accessories Power cord, QIG
