Technical Specifications
- Model

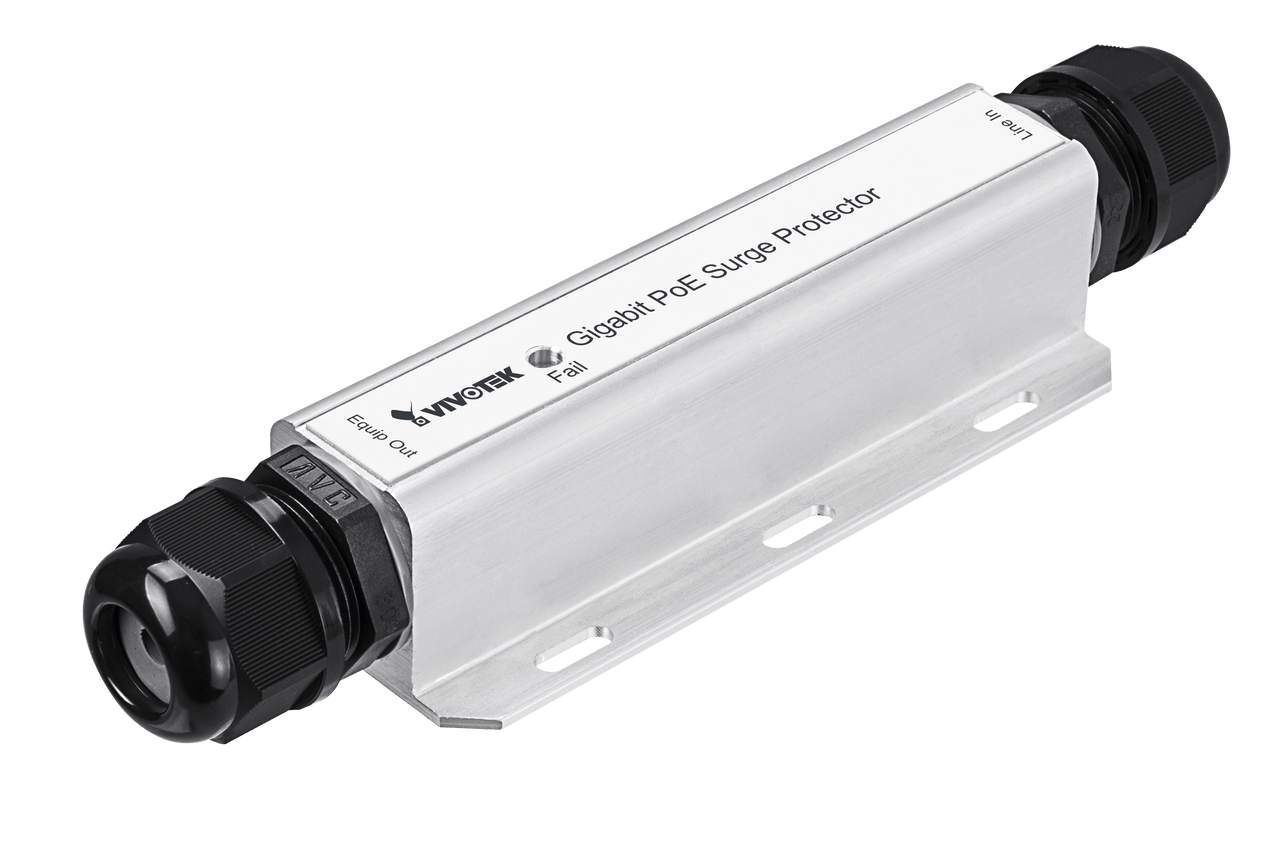

- AP-PSP-050
- Number of Ports
- 2
- Pass Through Data Rates
- 10/100/1000 Mbps
- Max Discharge Current (8/20us, 1KA per Line)
- 8KA, 16KV
- Maximum Operation DC Voltage
- 60VDC
- Maximum Operation DC Current
- 1A for 2 pair, 2A for 4 pair, Max. 95W
- Common Mode Protection Level (10/700us)
- 20KV
- Differential Mode Protection Level (10/700us)
- 4KV
- Clamping Voltage (Line to GND)
- 600V
- Clamping Voltage (Line to Line)
- 20V
- Insertion Loss @ 10MHz/100MHz
- 1 dB
- Return Loss @ 10MHz/100MHz
- -20 dB
- Response Time
- 5ns
