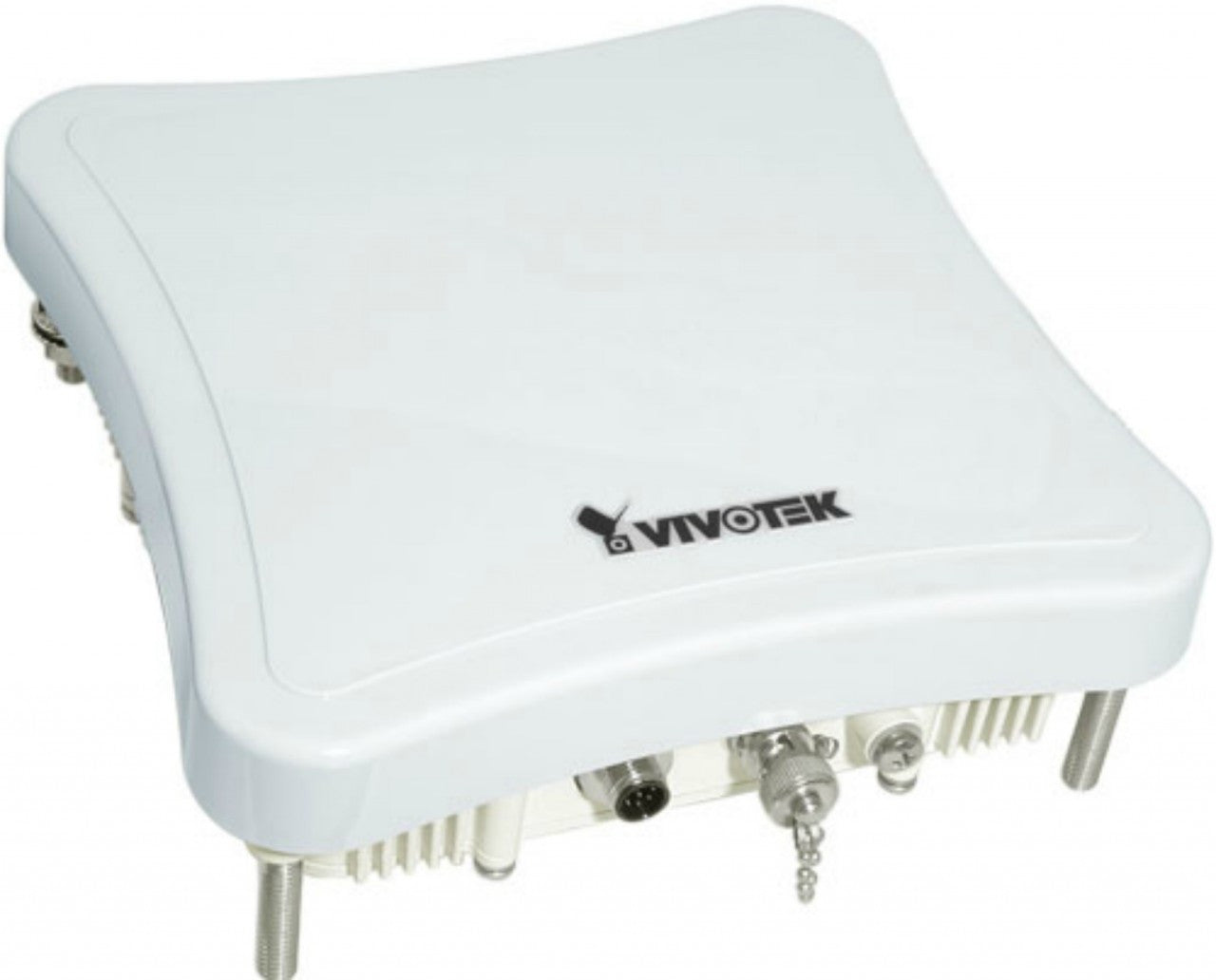

Vivotek AP5822-5-TW-2P1 Outdoor Weather-Proof Dual Band Wireless Access Point
Vivotek AP5822-5-TW-2P1 Outdoor Weather-Proof Dual Band Wireless Access Point

Vivotek

Vivotek AP5822-5-TW-2P1 Outdoor Weather-Proof Dual Band Wireless Access Point

Sale price$995.00
Discontinued
SKU: AP5822-5-TW-2P1

Contact

Discontinued

Vivotek AP5822-5-TW-2P1 Features
  • Built for severe weather conditions
  • Outdoor Weatherproof Wireless Bridge/Access Point
  • Bridge Mode: 802.11a; AP Mode(Wi-Fi): 802.11b/g
  • 5.8 GHz up to 3 mile range in Brdige mode
  • PoE Power
  • Color: White
  • Compatible with any Vivotek Camera
Vivotek AP5822-5-TW-2P1 Specifications
  • Model - AP5822-5-TW-2P1 ( P/N: 900003500Z )
  • Package Dimension - 19.7" x 11.8" x 6.7" ( L x W x H )
  • Package Weight - 13.2 lbs
  • Operating Band - Bridge mode: 5.150GHz to 5.350GHz, 5.50GHz to 5.70GHz, 5.725GHz to 5.825GHz & AP mode: 2.4GHz to 2.4835GHz
  • Operating Channels - Bridge mode: 9 non-overlapping channels; AP mode: 3 non-overlapping channels
  • Trnasmit Output Power - Bridge mode: 6 ~ 18 Mbps+20dBm, 24 ~ 36 Mbps+18dBm, 48 ~ 54 Mbps+16dBm & AP mode: 6 ~ 36 Mbps+20dBm, 48 Mbps+19dBm, 54 Mbps+18dBm
  • Receive Sensitivity - Bridge mode: 6 Mbps-88dBm, 9 Mbps-87dBm, 12 Mbps-86dBm, 18 Mbps-84dBm, 24 Mbps-81dBm, 36 Mbps-7 & AP mode: 6 Mbps-88dBm, 9 Mbps-87dBm, 12 Mbps-86dBm, 18 Mbps-84dBm, 24 Mbps-81dBm, 36 Mbps-7
  • Antenna - Bridge mode: Built-in +17 dBi flat panel antenna; AP mode: Extenal + 8 dBi omni antenna
  • Security - Bridge mode: 64/128/152-bit WEP; AP mode: 64/128/152-bit WEP, 802.1X, WPA
  • Management - Bridge mode: Remote web-based GUI; AP mode: Remote web-based GUI
  • Software Upgradeable - FTP, Web-Based
  • Standard Compliance - FCC, CE, IEEE 802.11b/g
  • Altitude - 15,000 Feet
  • Lightning Protection - Built-in surge protection
  • Interfaces - 10/ 100 Ethernet Port
  • Power Supply - Input: PoE, 48V DC, 20W Max
  • Operating Temperature - Ambient: -33 ~ 55 C, Case: -33 ~ 70 C
  • Storage Temperature - -40 ~ 80 C
  • Humidity - 0 ~ 95 %, non-condensing
  • Outer Dimension (L x W x H) - 7.79" x 7.79" x 2.48"
