Vivotek AT-PSP-001
Network Camera Store is an Authorized Vivotek Reseller

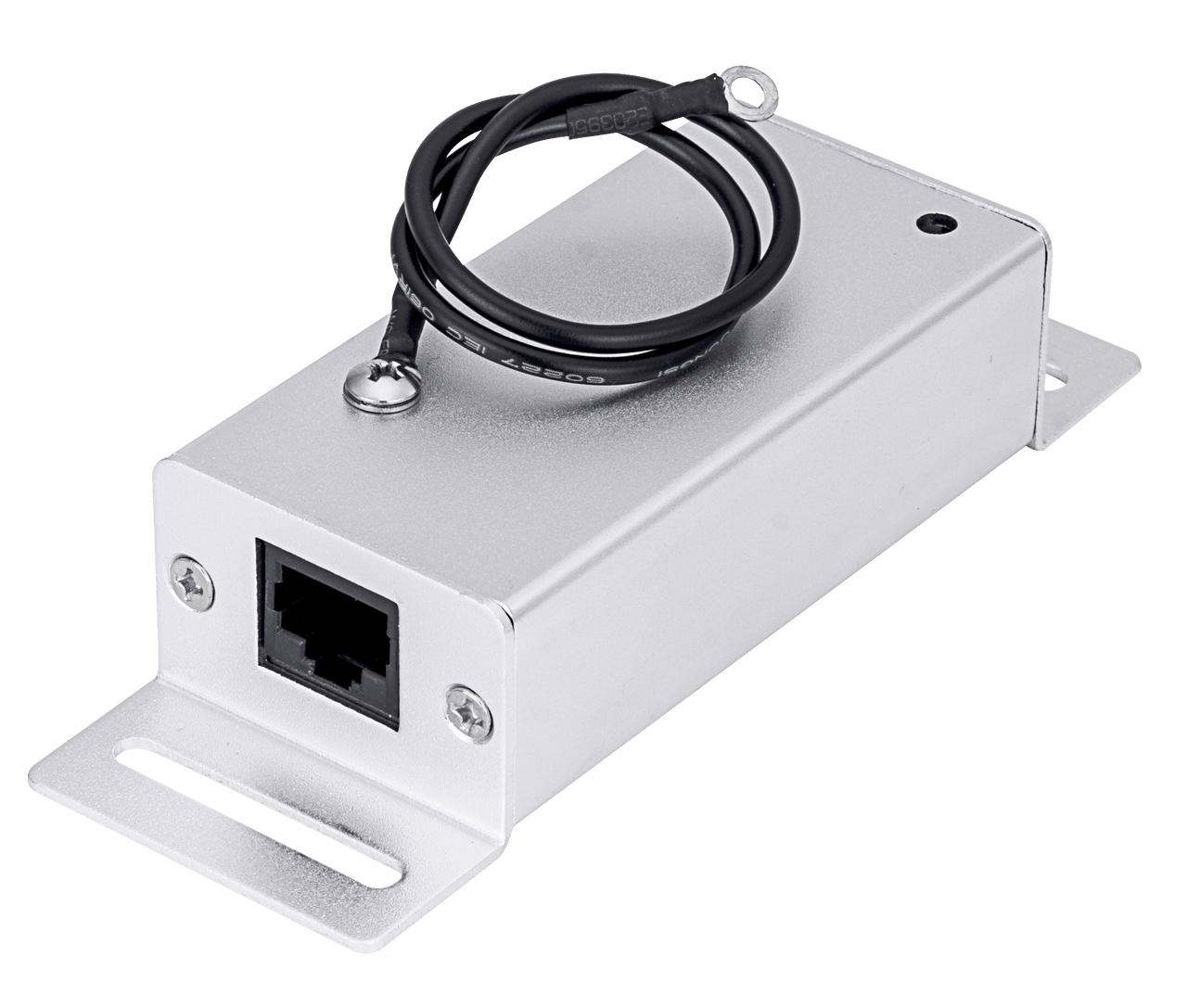

Vivotek AT-PSP-001 Surge Protector against Lightning or Transient Voltage

Vivotek

Vivotek AT-PSP-001 Surge Protector against Lightning or Transient Voltage

$56.70
SKU: AT-PSP-001
Quantity:
Link to Manufacturer's Page

Contact

Vivotek AT-PSP-001 Features

Technical Specifications
  • Maximum Operation DC Voltage 60V
  • Maximum Operation DC Current 1A for 2 pair, 2A for 4 pair
  • Common Mode Protection Level (10/700us) 20KV
  • Differential Mode Protection Level (10/700us) 4KV
  • Clamping Voltage (Line to GND) 600V
  • Clamping Voltage (Line to Line) 20V
  • Insertion Loss @ 10MHz/100MHz 1dB
  • Return Loss @ 10MHz/100MHz 20dB
Mechanical Specifications
  • Dimensions 25 x 40 x 80 mm
Environmental Specifications
  • Operating Temperature -40 °C ~ 85 °C (-40°F ~ 185°F)
