Vivotek

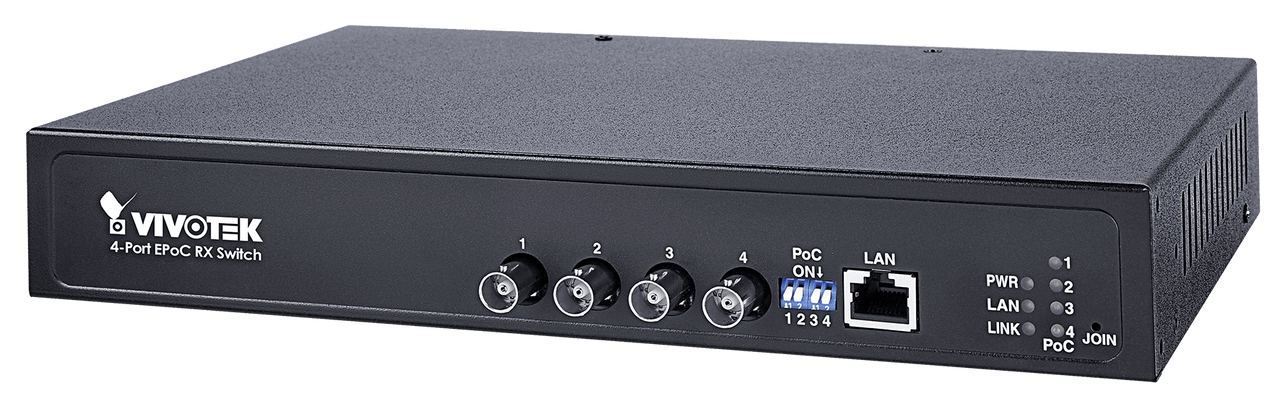

Vivotek AW-FCT-050A-250 4 Ports Unmanaged EPoC Switch
Discontinued - Recommended Replacement: N/A
Vivotek AW-FCT-050A-250 Features
Model: AW-FCT-050A-250
Product Description: 4 Port Unmanaged EPoC Rx Switch
BNC Port: (75Ω) 4xFE
Ethernet Port: 1xGE
PoE on/off Switch: 4
Transmission Mode: Rx
Max. PoE Distance (RG6): 1.2 km/7.5w per port
Max. Ethernet Distance (RG6): 2.4 km per port
Power input: 100VAC ~ 240VAC 56 VDC
PoE Standard: 802.3at/af
BNC Surge Protection: 6KV
Dimension: 280 (D) x 180 (W) x 44 (H) mm
Weight: 1 kg (2.20 lb)
Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
Storage Temperature: -20°C ~ 85°C (-4°F ~ 185°F)
Operating Humidity: 5% ~ 95% non-condensing
Safety Certification: CE, FCC, VCCI, LVD
Vivotek AW-FCT-050A-250 Overview
The EPoC (Ethernet Power over Coaxial) switch is the best networking solution for transferring power over analog to IP cameras. This product line combines the PoE switch and EPoC Rx module into one device, reducing costs and providing ethernet and power over coax. By adopting VIVOTEK EPoC switches, customers now can deploy IP surveillance up to 1200m away without changing their legacy coaxial cable.
