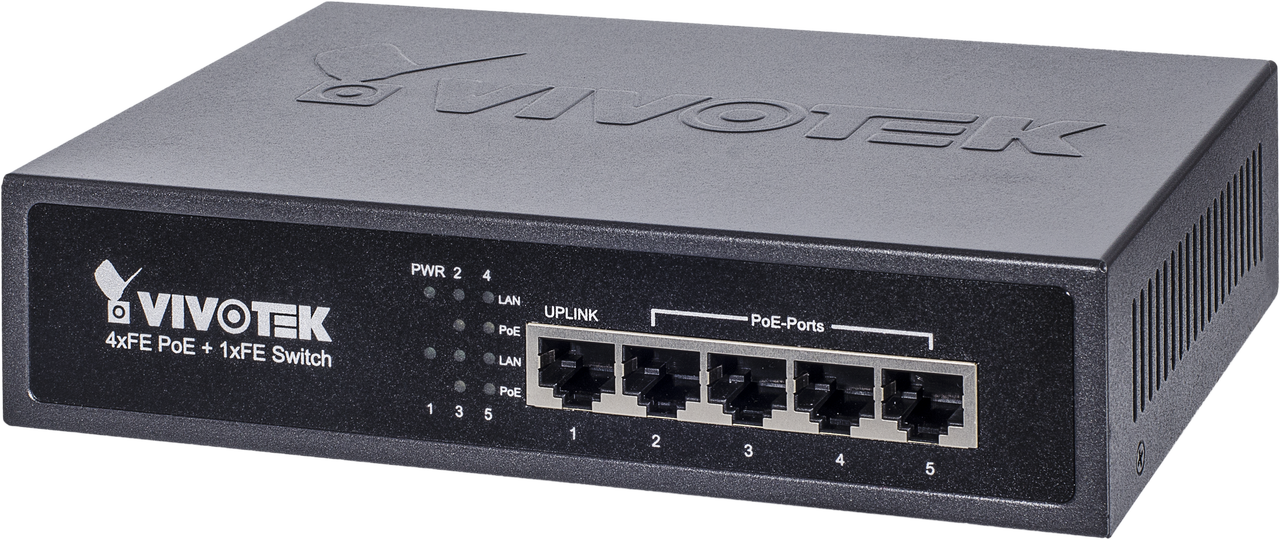

Vivotek AW-FET-050A-065 Unmanaged 4 Port PoE Switch

Vivotek AW-FET-050A-065 Features

IP Camera Compatibility

• Video Resolution Megapixel/D1/VGA
• Video Compression MJPEG/MPEG-4/H.264/H.265
• Compatible Camera List VIVOTEK Network Cameras

Ethernet

• Fast Ethernet (RJ45) 5

Standards

• IEEE 802.3 10-BASE-T (Ethernet) Supported
• IEEE 802.3u 100-BASE-TX (Fast Ethernet) Supported
• IEEE 802.3x Flow Control (Full-Duplex Flow Control) Supported
• IEEE 802.3af Power over Ethernet Supported
• IEEE 802.3at Power over Ethernet Plus Supported

Ethernet Performance

• MAC Address 1 K
• Buffer Memory 48 KB
• Transmission Method Store and Forward
• Backplane 1 Gbps
• Auto-MDI/MDI-X, Auto-Negotiation Supported

Filtering/Forwarding Rates

• 10Mbps 14,880 pps
• 100Mbps 148,000 pps

Transmission Media

• 10Base T Cat. 3, 4, 5 UTP/STP
• 100Base TX Cat. 5, 5e UTP/STP
• *It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard.

PoE Function

• Number of PoE Out Ports 4
• PoE Output Power Per Port 56VDC, Max. 30W
• Total PoE Power Budget 60 W
• 802.3at/af Standard Compatible Yes
• Over Current Protection Supported
• Circuit Shorting Protection Supported
• Power Pin Assignment 1/2(+), 3/6(-)
• PoE PD Auto Detection Yes

General

• LED Indicators Power, Uplink, LAN ports x4, PoE ports x4
• Power Input 100~240V AC / 50~60Hz
• Power Consumption 65 W
• Dimensions 160 (L) x 123 (W) x 44 (H) mm
• Weight 0.8 kg
• Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)
• Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
• Humidity Operating: 10~90% (Non-condensing)
• Storage: 10~90% (Non-condensing)
• Safety Certifications CE, C-Tick, FCC, LVD, VCCI

Accessory

• Included Accessories Power cord, QIG
