Vivotek AW-FET-060C-065
Network Camera Store is an Authorized Vivotek Reseller

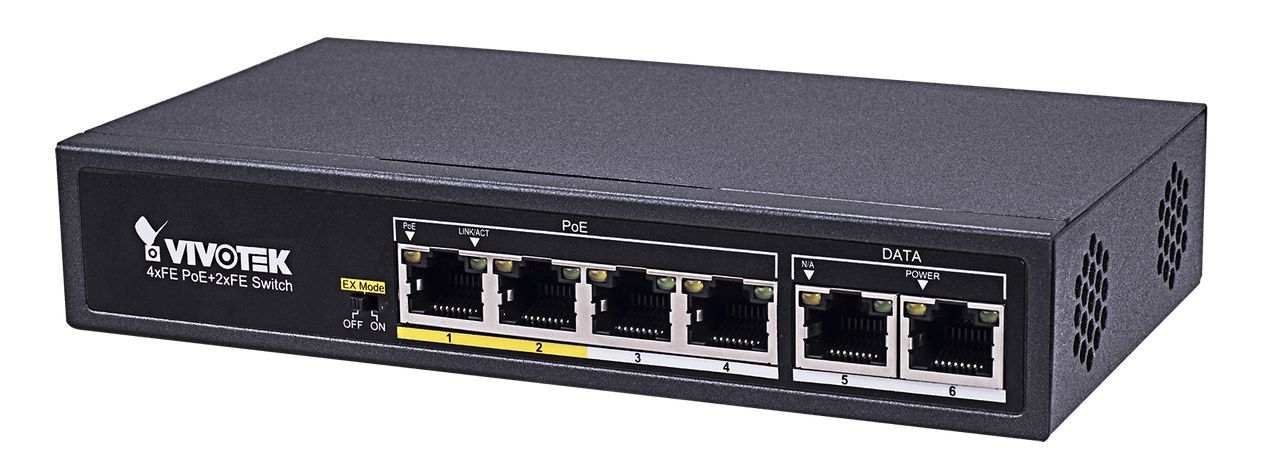

Vivotek AW-FET-060C-065 Unmanaged 4xFE PoE + 2xFE UTP Switch

Vivotek

Vivotek AW-FET-060C-065 Unmanaged 4xFE PoE + 2xFE UTP Switch

Sale price$73.50
SKU: AW-FET-060C-065
Quantity:

Contact

Vivotek AW-FET-060C-065 Features

Networking Specifications
  • 10/100Mbps RJ45 PoE Port -
  • 10/100Mbps RJ45 Port 2
  • 10/100/1000Mbps RJ45 Port -
  • Gigabit SFP Slot -
  • Gigabit RJ45/SFP Combo Ports -
  • EX Mode PoE (200M@10Mbps) 2
  • VLAN Mode -
Ethernet Performance
  • Switching Capacity 1.2 Gbps
  • Mac Table 2 K
  • Jumbo Frame 1536 Bytes
  • Auto-MDI/MDI-X, Auto-Negotiation Supported
Power Specifications
  • Power Input Voltage 100VAC ~ 240VAC
  • Max. PoE Output Power Per Port 54VDC, Max. 30W
  • Total PoE Power Budget 60W
  • IEEE 802.3af/at Supported
  • Power Pin Assignment 1/2(+), 3/6(-)
  • PoE PD Auto Detection Supported
  • Surge Protection/Each PoE Port 4 KV
  • Surge Protection for AC Power 4 KV
General
  • Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)
  • Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
  • Operating Humidity 10% ~ 90% non-condensing
  • Dimensions 168 (L) x 94.1 (W) x 32 (H) mm
  • Weight 0.5 kg
Certifications
  • EMC CE, FCC, VCCI, C-Tick Class A
  • Safety EN60950-1, IEC60950-1
