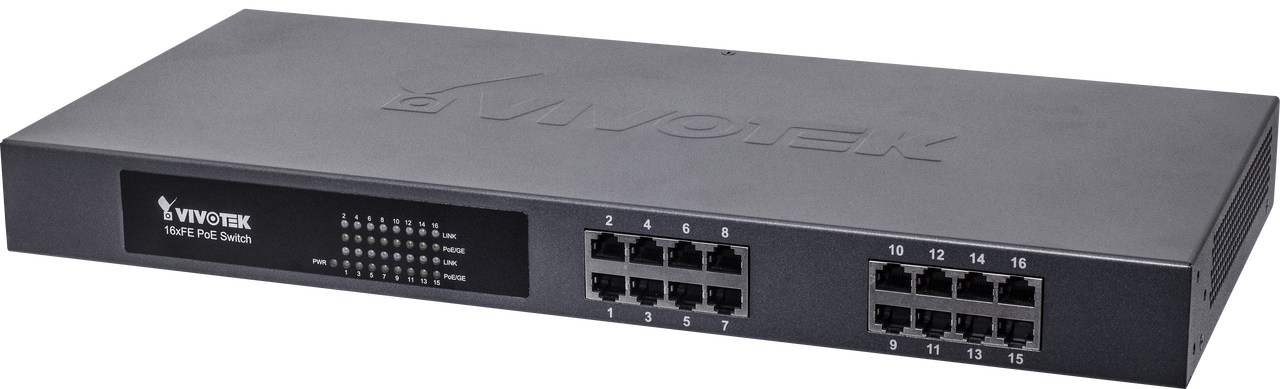

Vivotek AW-FET-160A-250 Unmanaged 16-Port PoE Switch

Discontinued - Recommended Replacement AW-FGT-180D-250

Vivotek AW-FET-160A-250 Features

Hardware Specifications

• Ethernet Ports: 16 x RJ45 Fast Ethernet Ports
• PoE Ports: 16 (no dedicated uplink port)

• Resolution: Megapixel/D1/VGA
• Compression: MJPEG/MPEG-4/H.264/H.265
• Compatible Cameras: VIVOTEK Network Cameras
• Power Requirement: 100~240VAC / 50~60Hz
• Power Consumption: 250W
• LED Display: Power, LAN port x16, PoE port x16
• Dimensions: 440 (L) x 200 (W) x 44 (H) mm
• Weight: 2.85 kg (6.28 lbs)
• Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) with 10~90% RH (Non-condensing)
  What's Included: Power cord, QIG, 19" rack mount kit
• Warranty: 2 Years

Power over Ethernet Specifications

• Filtering/Forwarding Rates: 10Mbps, 100Mbps
• Switch Throughput: N/A
• Per Port PoE Power Output: 30W Max
• Total PoE Power Budget: 240W
• Transmission Method: Store & forward
• PoE Power Supply Type: End-Span
• Power Pin Assignments: 1/2(+), 3/6(-)
• Regulation Compliance: CE, C-Tick, FCC, LVD, VCCI
• Standards Compliance: IEEE 802.3 10-BASE-T (Ethernet), IEEE 802.3u 100-BASE-TX (Fast Ethernet), IEEE 802.3x Flow Control (Full-Duplex Flow Control), IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus
