Vivotek

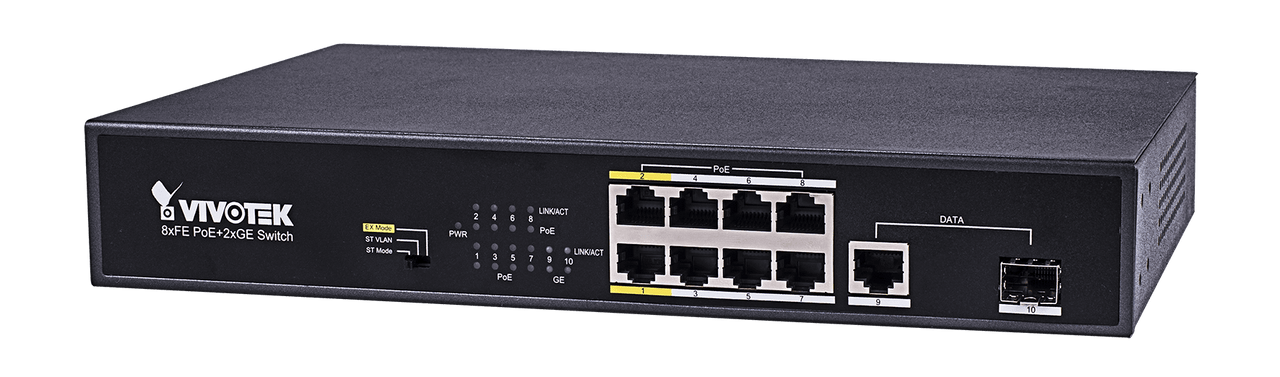

Vivotek AW-FGT-100C-120 Unmanaged 8xFE PoE + 1xGE UTP + 1xGE SFP Switch
Discontinued - Recommended Replacement: AW-FGT-100D-120
Discontinued Recommended Replacement:
AW-FGT-100D-120
Vivotek AW-FGT-100C-120 Features
Networking Specifications
- 10/100Mbps RJ45 PoE Port 8
- 10/100Mbps RJ45 Port -
- 10/100/1000Mbps RJ45 Port 1
- Gigabit SFP Slot 1
- Gigabit RJ45/SFP Combo Ports -
- EX Mode PoE (200M@10Mbps) 2
- VLAN Mode Supported
- Switching Capacity 5.6 Gbps
- Mac Table 4 K
- Jumbo Frame 1536 Bytes
- Auto-MDI/MDI-X, Auto-Negotiation Supported
- Power Input Voltage 100VAC ~ 240VAC
- Max. PoE Output Power Per Port 54VDC, Max. 30W
- Total PoE Power Budget 120W
- IEEE 802.3af/at Supported
- Power Pin Assignment 1/2(+), 3/6(-)
- PoE PD Auto Detection Supported
- Surge Protection/Each PoE Port 4 KV
- Surge Protection for AC Power 4 KV
- Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)
- Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
- Operating Humidity 10% ~ 90% non-condensing
- Dimensions 280 (L) x 180 (W) x 44 (H) mm
- Weight 1.54 kg
- EMC CE, FCC, VCCI, C-Tick Class A
- Safety EN60950-1, IEC60950-1
