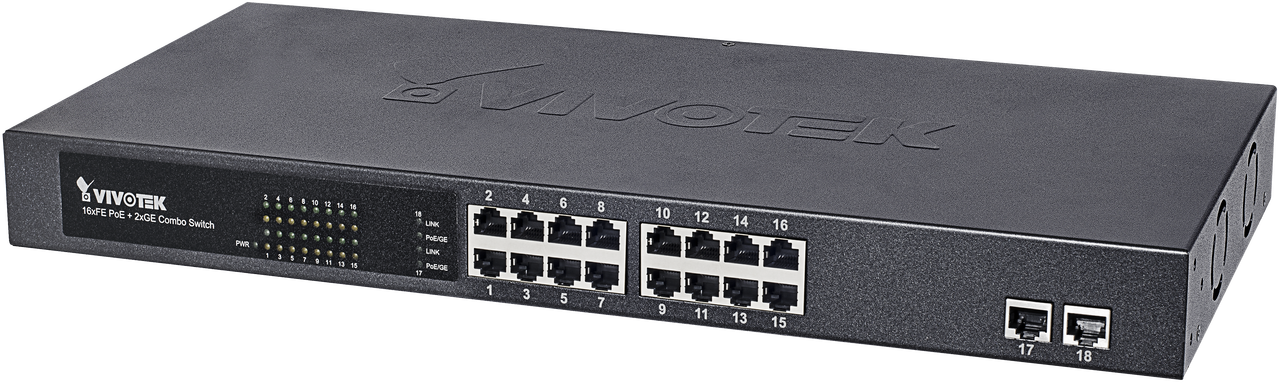

Vivotek AW-FGT-180A-250 Unmanaged 16 Port PoE Switch

Vivotek AW-FGT-180A-250 Features

Hardware Specifications

• Ethernet Ports: 16 x RJ45 Fast Ethernet Ports, 2 x Combo Gigabit Ethernet (RJ45/SFP)
• PoE Ports: 16

• Resolution: Megapixel/D1/VGA
• Compression: MJPEG/MPEG-4/H.264/H.265
• Compatible Cameras: VIVOTEK Network Cameras
• Power Requirement: 100~240VAC / 50~60Hz
• Power Consumption: 250W
• LED Display: Power, LAN ports x16, PoE ports x16, GE ports x4
• Dimensions: 440 (L) x 200 (W) x 44 (H) mm
• Weight: 3.6 kg (7.94 lbs)
• Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) with 10~90% RH (Non-condensing)
  What's Included: Power cord, QIG, 19" rack mount kit
• Warranty: 2 Years

Power over Ethernet Specifications

• Filtering/Forwarding Rates: 10Mbps, 100Mbps, 1000Mbps
• Switch Throughput: N/A
• Per Port PoE Power Output: 30W Max
• Total PoE Power Budget: 240W
• Transmission Method: Store & forward
• PoE Power Supply Type: N/A

• Power Pin Assignments: 1/2(+), 3/6(-)
• Regulation Compliance: CE, C-Tick, FCC, LVD, VCCI
• Standards Compliance: IEEE 802.3 10-BASE-T (Ethernet), IEEE 802.3u 100-BASE-TX (Fast Ethernet), IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet), IEEE 802.3x Flow Control, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus
