Vivotek

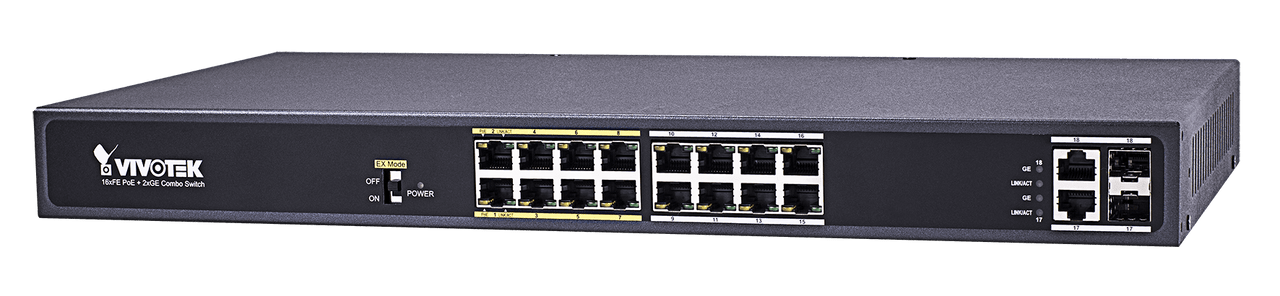

Vivotek AW-FGT-180C-250 Unmanaged 16xFE PoE + 2xGE Combo Switch
Discontinued - Recommended Replacement: AW-FGT-180D-250
Replaced by the AW-FGT-180D-250
Vivotek AW-FGT-180C-250 Features
Networking Specifications
- 10/100Mbps RJ45 PoE Port 16
- 10/100Mbps RJ45 Port -
- 10/100/1000Mbps RJ45 Port -
- Gigabit SFP Slot -
- Gigabit RJ45/SFP Combo Ports 2
- EX Mode PoE (200M@10Mbps) 8
- VLAN Mode -
- Switching Capacity 7.2 Gbps
- Mac Table 16 K
- Jumbo Frame 1536 Bytes
- Auto-MDI/MDI-X, Auto-Negotiation Supported
- Power Input Voltage 100VAC ~ 240VAC
- Max. PoE Output Power Per Port 54VDC, Max. 30W
- Total PoE Power Budget 240W
- IEEE 802.3af/at Supported
- Power Pin Assignment 1/2(+), 3/6(-), 4/5(+), 7/8(-)
- PoE PD Auto Detection Supported
- Surge Protection/Each PoE Port 12 KV
- Surge Protection for AC Power 4 KV
- Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)
- Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
- Operating Humidity 10% ~ 90% non-condensing
- Dimensions 440 (L) x 200 (W) x 44 (H) mm
- Weight 3.6 kg
- EMC CE, FCC, VCCI, C-Tick Class A
- Safety EN60950-1, IEC60950-1
