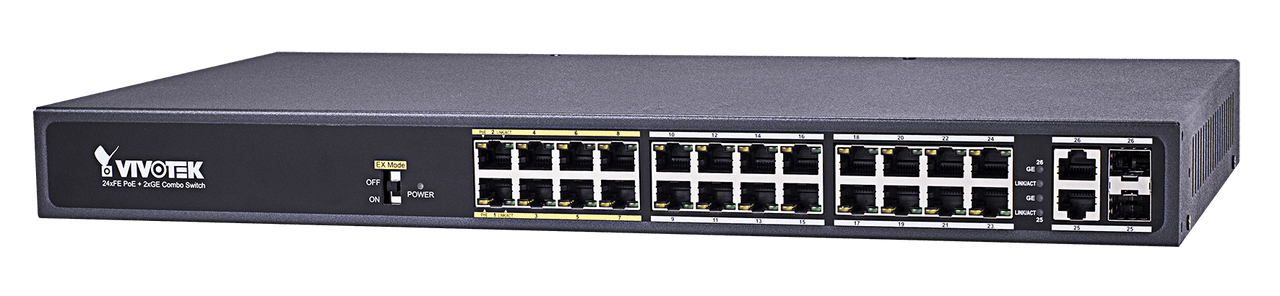

Vivotek AW-FGT-260C-380 Unmanaged 24xFE PoE + 2xGE Combo Switch

Replaced by the AW-FGT-260D-380

Vivotek AW-FGT-260C-380 Features

Networking Specifications

• 10/100Mbps RJ45 PoE Port 24
• 10/100Mbps RJ45 Port -
• 10/100/1000Mbps RJ45 Port -
• Gigabit SFP Slot -
• Gigabit RJ45/SFP Combo Ports 2
• EX Mode PoE (200M@10Mbps) 8
• VLAN Mode -

Ethernet Performance

• Switching Capacity 8.8 Gbps
• Mac Table 16 K
• Jumbo Frame 1536 Bytes
• Auto-MDI/MDI-X, Auto-Negotiation Supported

Power Specifications

• Power Input Voltage 100VAC ~ 240VAC
• Max. PoE Output Power Per Port 54VDC, Max. 30W
• Total PoE Power Budget 370W
• IEEE 802.3af/at Supported
• Power Pin Assignment 1/2(+), 3/6(-), 4/5(+), 7/8(-)
• PoE PD Auto Detection Supported
• Surge Protection/Each PoE Port 12 KV
• Surge Protection for AC Power 4 KV

General

• Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)
• Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
• Operating Humidity 10% ~ 90% non-condensing
• Dimensions 440 (L) x 200 (W) x 44 (H) mm
• Weight 3.8 kg

Certifications

• EMC CE, FCC, VCCI, C-Tick Class A
• Safety EN60950-1, IEC60950-1
