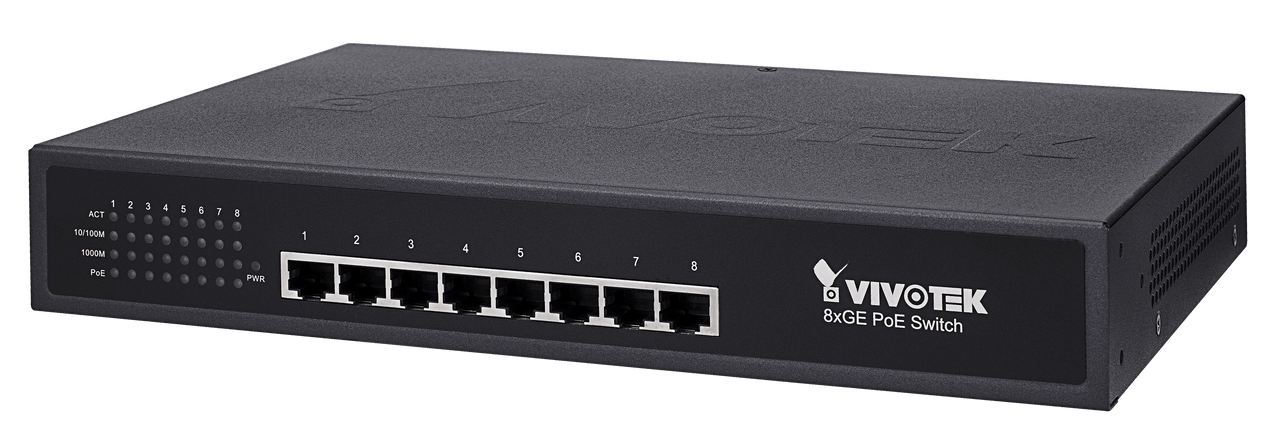

Vivotek AW-GET-080A-120 Unmanaged 8xGE PoE Switch

Vivotek AW-GET-080A-120 Features

IP Camera Compatibility

• Video Resolution Megapixel/D1/VGA
• Video Compression MJPEG/MPEG-4/H.264/H.265
• Compatible Camera List VIVOTEK Network Cameras

Ethernet

• Gigabit Ethernet (RJ45) 8 Standards
• IEEE 802.3 10-BASE-T (Ethernet) Supported
• IEEE 802.3u 100-BASE-TX (Fast Ethernet) Supported
• IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet) Supported
• IEEE 802.3x Flow Control (Full-Duplex Flow Control) Supported
• IEEE 802.3af Power over Ethernet Supported
• IEEE 802.3at Power over Ethernet Plus Supported
• IEEE 802.3az Energy-Efficient Ethernet Supported

Ethernet Performance

• MAC Address 8 K
• Buffer Memory 104 KB
• Transmission Method Store and Forward
• Backplane 16 Gbps
• Jumbo Frame 9 K
• Auto-MDI/MDI-X, Auto-Negotiation Supported

Filtering/Forwarding Rates

• 10Mbps 14,880 pps
• 100Mbps 148,000 pps
• 1000Mbps 1,488,000 pps

Transmission Media

• 10Base T Cat. 3, 4, 5 UTP/STP
• 100Base TX Cat. 5, 5e UTP/STP
• 1000Base T Cat. 5e, 6, 7 UTP/STP

PoE Function

• Number of PoE Out Ports 8
• PoE Power Output Per Port 56VDC, Max. 30W
• Total PoE Power Budget 115 W
• 802.3at/af Standard Compatible Yes
• Over Current Protection Supported
• Circuit Shorting Protection Supported
• Power Pin Assignment 1/2(+), 3/6(-)
• PoE PD Auto Detection Yes

General

• LED Indicators Power, Act x8, 100Mx8, 1000Mx8, PoE ports x8
• Power Input 100~240V AC / 50~60Hz
• Power Consumption 120 W
• Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)
• Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
• Operating Humidity 10~90% (Non-condensing)
• Dimensions 280 (L) x 182 (W) x 44 (H) mm
• Weight 1.6 kg
• Safety Certifications CE, C-Tick, FCC, LVD, VCCI

Accessories

• Included Accessories Power cord, QIG, 19 rack mount kit
