Vivotek AW-GET-094A-130

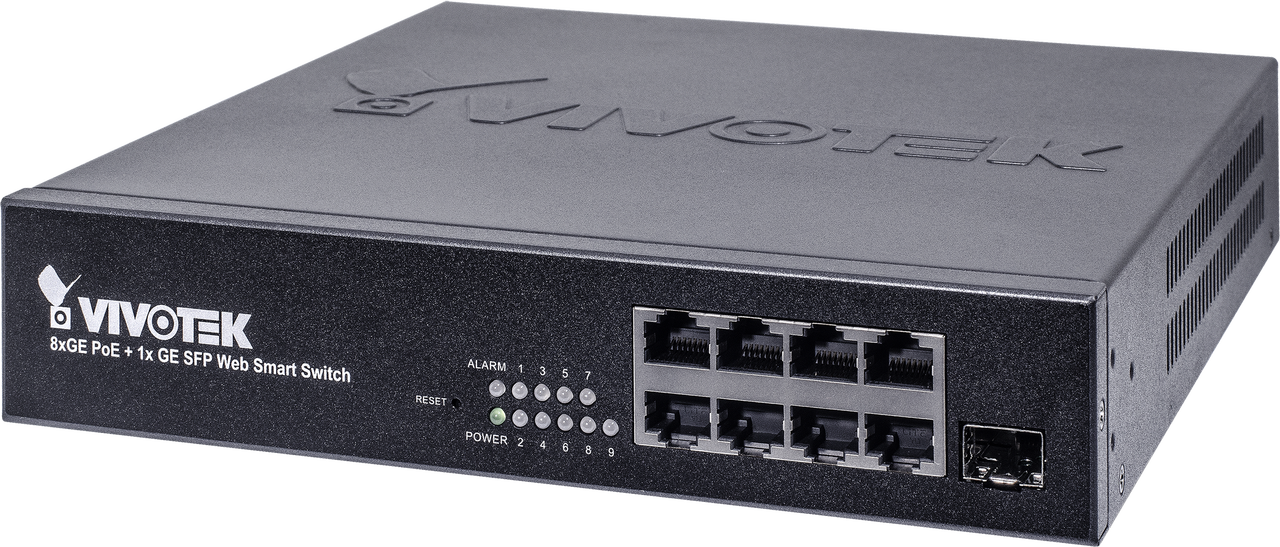

Vivotek AW-GET-094A-130 Web Smart 8 Port PoE Switch

Vivotek

Vivotek AW-GET-094A-130 Web Smart 8 Port PoE Switch

$330.00
Discontinued
SKU: AW-GET-094A-130

Discontinued - Recommended Replacement: AW-GEV-104B-130

Link to Manufacturer's Page

Contact

Vivotek AW-GET-094A-130 Features

Hardware Specifications

  • Ethernet Ports: 8 x RJ45 Fast Ethernet Ports, 1 x Gigabit Ethernet (SFP)
  • PoE Ports: 8
  • Resolution: Megapixel/D1/VGA
  • Compression: MJPEG/MPEG-4/H.264/H.265
  • Compatible Cameras: VIVOTEK Network Cameras
  • Power Requirement: 100~240VAC / 50~60Hz
  • Power Consumption: N/A
  • LED Display: N/A
  • Dimensions: 220 (L) x 242 (W) x 44 (H) mm
  • Weight: 1.98 kg (4.37 lbs)
  • Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) with 10~90% RH (Non-condensing)
    What's Included:     Power Cord, QIG, CD Manual, Rack Mount Kit
  • Warranty: 2 Years

Power over Ethernet Specifications

  • Filtering/Forwarding Rates: 10Mbps, 100Mbps, 1000Mbps
  • Switch Throughput: N/A
  • Per Port PoE Power Output: 30W Max
  • Total PoE Power Budget: 130W
  • Transmission Method: N/A
  • PoE Power Supply Type: End-Span
  • Power Pin Assignments: 1/2(+), 3/6(-)
  • Regulation Compliance: CE, C-Tick, FCC, LVD, VCCI
  • Standards Compliance: IEEE 802.3 10-BASE-T (Ethernet), IEEE 802.3u 100-BASE-TX (Fast Ethernet), IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet), IEEE 802.1p Quality of Service (QoS), IEEE 802.1Q Virtual LANs (VLANs), IEEE 802.3x Flow Control (Full-Duplex Flow Control), IEEE 802.1d/w (STP/RSTP), IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus S
