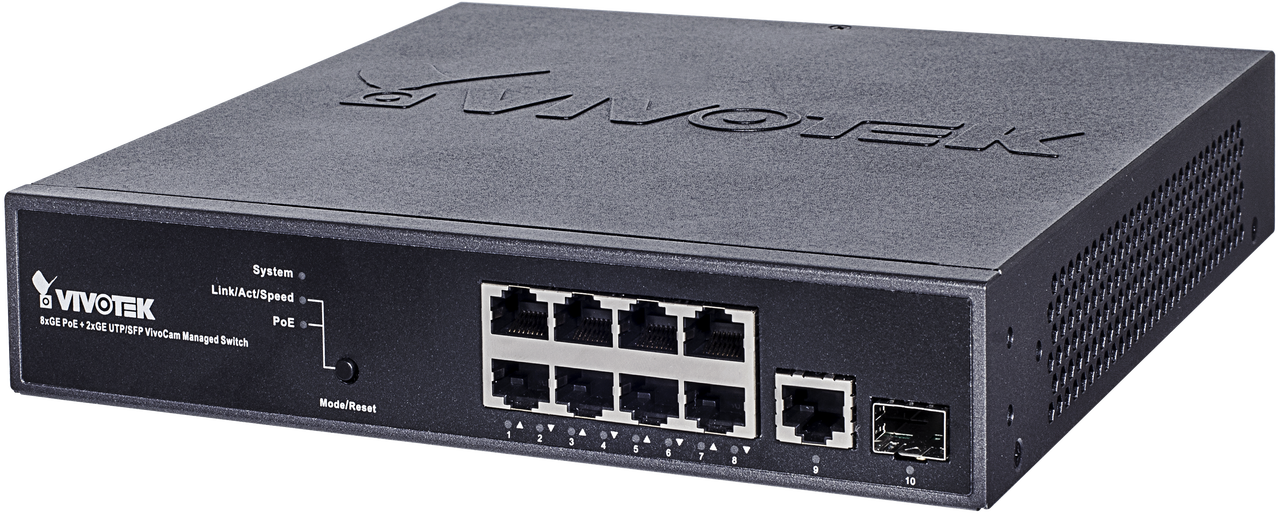

Vivotek AW-GEV-104A-130 VivoCam Managed 8-Port PoE Switch

Vivotek AW-GEV-104A-130 Features

Hardware Specifications

• Ethernet Ports: 8 x Gigabit Ethernet 10/100/1000Mbps (RJ45), 1xGE UTP + 1xGE SFP
• PoE Ports: 8

• Resolution: Megapixel/D1/VGA
• Compression: MJPEG/MPEG-4/H.264/H.265
• Compatible Cameras: VIVOTEK Network Cameras
• Power Requirement: 100~240VAC / 50~60Hz
• Power Consumption: NA

• LED Display: Power, Link/Active/Speed x10, PoEx8
• Dimensions: 44 (H) x 220 (W) x 242.4 (D) mm
• Weight: 2 kg
• Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) with 10~90% RH (Non-condensing)
  What's Included: Power Cord, QIG, CD Manual, Rack Mount Kit
• Warranty: 2 Years

Power over Ethernet Specifications

• Filtering/Forwarding Rates: 10Mbps, 100Mbps, 1000Mbps
• Switch Throughput: N/A
• Per Port PoE Power Output: 30W Max
• Total PoE Power Budget: 130W
• Transmission Method: Store & Forward
• PoE Power Supply Type: End-Span
• Power Pin Assignments: 1/2(+), 3/6(-)
• Regulation Compliance: CE, C-Tick, FCC, LVD, VCCI

Vivotek AW-GEV-104A-130 Overview

The VIVOTEK AW-GEV series, referred to as VivoCam PoE switch, is the world’s first PoE switch with IP surveillance management functions. This switch is not only a standard L2 PoE switch, but also able to set up and configure VIVOTEK IP cameras, NVR and CMS. With single AW-GEV series, the VivoCam PoE switch allows users to find all VIVOTEK devices and deploy a surveillance network system automatically. The AW-GEV series also features Graphic View, such as Topology/Map view for controlling and understanding network structure and device situation, and Google Map integration to view system situation status for outdoor applications. It not only features surveillance network environment set up functions, but troubleshooting and traffic monitoring functions also help users to clarify and troubleshoot any connection or device issue. In addition, users can also back up their IP camera configuration files, and batch re-boot/re-store camera device through the VivoCam PoE switch. With all of these features and more, the AW-GEV series is the best PoE solution to install and manage your VIVOTEK devices.
