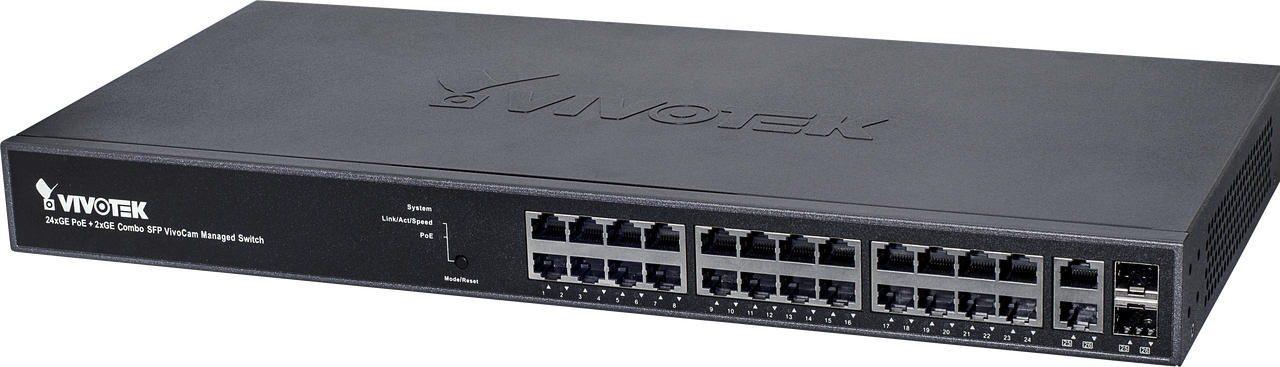

Vivotek AW-GEV-264A-185 VivoCam Managed 24 Port PoE Switch

Vivotek AW-GEV-264A-185 Features

Hardware Specifications

• Ethernet Ports: 26 x Gigabit Ethernet 10/100/1000Mbps (RJ45), 2x Gigabit Ethernet 100/1000Mbps (SFP)
• PoE Ports: 24

• Resolution: Megapixel/D1/VGA
• Compression: MJPEG/MPEG-4/H.264/H.265
• Compatible Cameras: VIVOTEK Network Cameras
• Power Requirement: 100~240VAC / 50~60Hz
• Power Consumption: 240W

• LED Display: Power, Link/Active/Speed x26, PoEx24
• Dimensions: 442 (L) x 211 (W) x 44 (H) mm
• Weight: 2.5 kg (5.51 lbs)
• Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) with 10~90% RH (Non-condensing)
  What's Included: Power Cord, QIG, CD Manual, Rack Mount Kit
• Warranty: 2 Years

Power over Ethernet Specifications

• Filtering/Forwarding Rates: 10Mbps, 100Mbps, 1000Mbps
• Switch Throughput: N/A
• Per Port PoE Power Output: 30W Max
• Total PoE Power Budget: 185W
• Transmission Method: Store & Forward
• PoE Power Supply Type: End-Span
• Power Pin Assignments: 1/2(+), 3/6(-)
• Regulation Compliance: CE, C-Tick, FCC, LVD, VCCI
• Standards Compliance: IEEE 802.3 10-BASE-T Ethernet, IEEE 802.3u 100-BASE-TX Fast Ethernet, IEEE 802.3ab 1000-BASE-TX Gigabit Ethernet, IEEE 802.1p Quality of Service, IEEE 802.1Q Virtual LANs, IEEE 802.3x Flow Control, IEEE 802.1d/w/S STP/RSTP/MSTP, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.1X Authorization, IEEE802.3az Energy Efficient Ethernet, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus

Vivotek AW-GEV-264A-185 Overview

The VIVOTEK AW-GEV-264A series, referred to as VivoCam PoE switch, is the world’s first PoE switch with IP surveillance management functions. This switch is not only a standard L2 PoE switch, but also able to set up and configure VIVOTEK IP cameras, NVR and CMS. With single AW-GEV-264A series, the VivoCam PoE switch allows users to find all VIVOTEK devices and deploy a surveillance network system automatically. The AW-GEV-264A series also features Graphic Monitoring, such as Topology/Map view for controlling and understanding network structure and device situation, and Google Map integration to view system situation status for outdoor applications. It not only features surveillance network environment set up functions, but troubleshooting and traffic monitoring functions also help users to clarify and troubleshoot any connection or device issue. In addition, users can also back up their IP camera configuration files, and batch re-boot/re-store camera device through the VivoCam PoE switch. With all of these features and more, the AW-GEV-264A series is the best PoE solution to install and manage your VIVOTEK devices.
