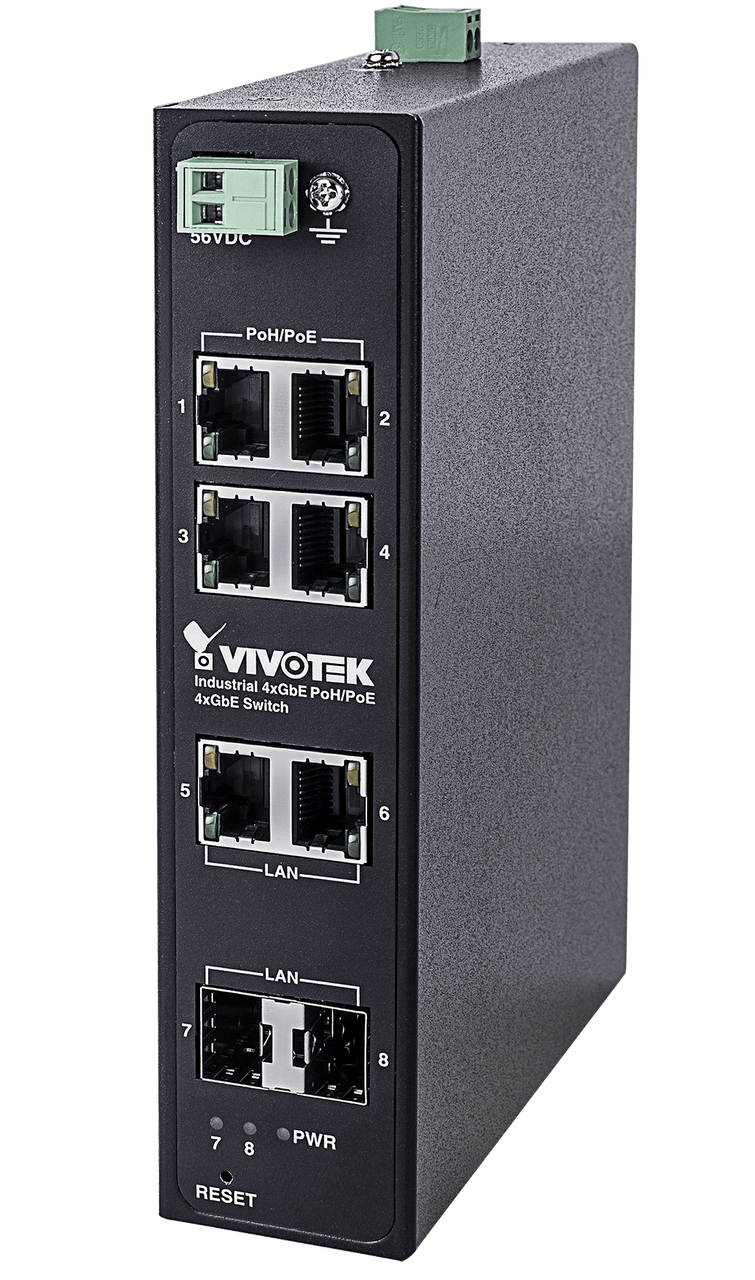

Vivotek AW-IHH-0800 Industrial 4xGE 95W PoH/PoE + 2xGE UTP + 2xGE SFP Switch

Vivotek AW-IHH-0800 Features

Networking Specifications

• Gigabit Ethernet RJ45 PoE Port 4
• Gigabit Ethernet RJ45 port 2
• Gigabit SFP Port 2

Ethernet Performance

• Switching Bandwidth 16 Gbps
• MAC Address 4 K
• Buffer Memory 128 KB
• Forwarding Capacity 11.904 Mpps
• Jumbo Frame 9 KB
• Transmission Method Store and Forward
• Auto-MDI/MDI-X, Auto-Negotiation Supported

Standards

• IEEE 802.3 10-BASE-T (Ethernet) Supported
• IEEE 802.3u 100-BASE-TX (Fast Ethernet) Supported
• IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet) Supported
• IEEE 802.3z 1000-BASE-X (Gigabit Ethernet) Supported
• IEEE 802.3x Flow Control (Full-Duplex Flow Control) Supported
• IEEE 802.3af Power over Ethernet SupporteD
• IEEE 802.3at Power over Ethernet Plus Supported

Power Specifications

• Power Input Voltage PW1: 54 ~ 56VDC, PW2: 54 ~ 56VDC, Redundant Power Backup
• Max. PoE Output Power /Per PoE Port 56VDC, Max. 95W
• Total PoE Power Budget 240W
• IEEE 802.3af/at Supported
• Power Pin Assignment 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE PD Auto Detection Supported
• Surge Protection/Per PoE Port 12KV

General

• Dimensions 39 (W) x 172 (H) x 147 (D) mm
• Weight 0.7 kg
• Operating Temperature -40°C ~ 75°C (-40°F ~ 167°F)
• Storage Temperature -40°C ~ 85°C (-40°F ~ 185°F)
• Operating Humidity 5% ~ 95% non-condensing

Certifications

• EMS EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-5 Surge, EN61000-4-6 CS, EN61000-4-8 PFMF
• EMI FCC Part 15 Class A
• Safety CE, LVD, VCCI
• Vibration IEC 60068-2-6
• Shock IEC 60068-2-27
• Freefall IEC 60068-2-32
