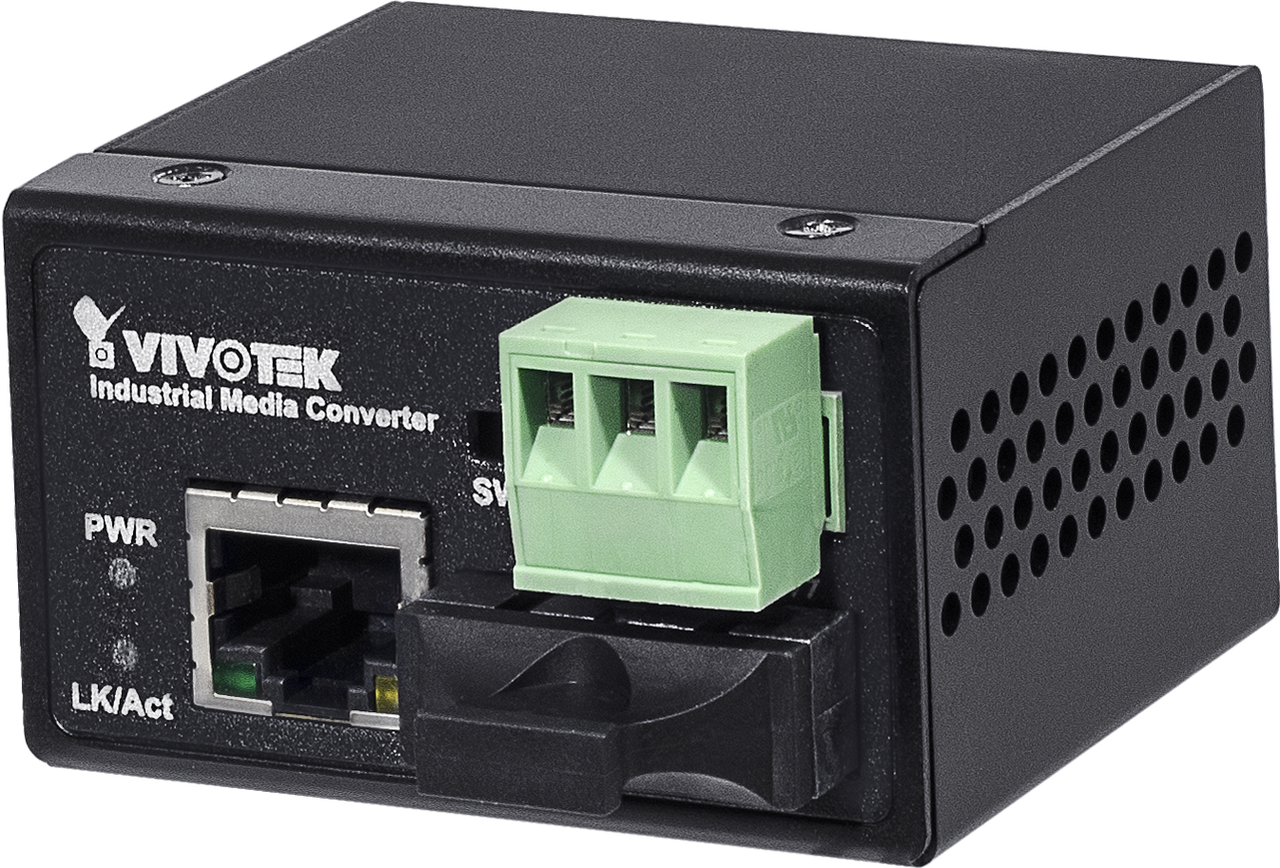

Vivotek AW-IHS-0201 Single Mode 30KM Industrial Media Converter

Vivotek AW-IHS-0201 Features

Hardware Specifications

• Ethernet Ports: 1 x Fast Ethernet 10/100Mbps (RJ45)
• PoE Ports: 0

• Resolution: Megapixel/D1/VGA
• Compression: MJPEG/MPEG-4/H.264/H.265
• Compatible Cameras: N/A
• Power Requirement: 18V-36VAC or 12V-60VDC Power Input, Removable Terminal Block
• Power Consumption: 2W

• LED Display: Power, LAN, Speed
• Dimensions: 59 (L) x 49 (W) x 36 (H) mm
• Weight: 0.08 kg (0.17 lbs)
• Operating Temperature: -40°C ~ 75°C (-40°F ~ 167°F) with 5~95% (Non-condensing)
  What's Included: QIG, Terminal Block, DIN-rail Brackets, Wall Mount Kit
• Warranty: 2 Years

Power over Ethernet Specifications

• Filtering/Forwarding Rates: 10Mbps, 100Mbps
• Switch Throughput: N/A
• Per Port PoE Power Output: N/A
• Total PoE Power Budget: N/A
• Transmission Method: Store & Forward
• PoE Power Supply Type: N/A

• Power Pin Assignments: 1/2(+), 3/6(-)
• Regulation Compliance: CE, C-Tick, FCC, LVD, VCCI
• Standards Compliance: IEEE 802.3 10-BASE-T Ethernet, IEEE 802.3u 100-BASE-TX Fast Ethernet, IEEE 802.3x Flow Control
