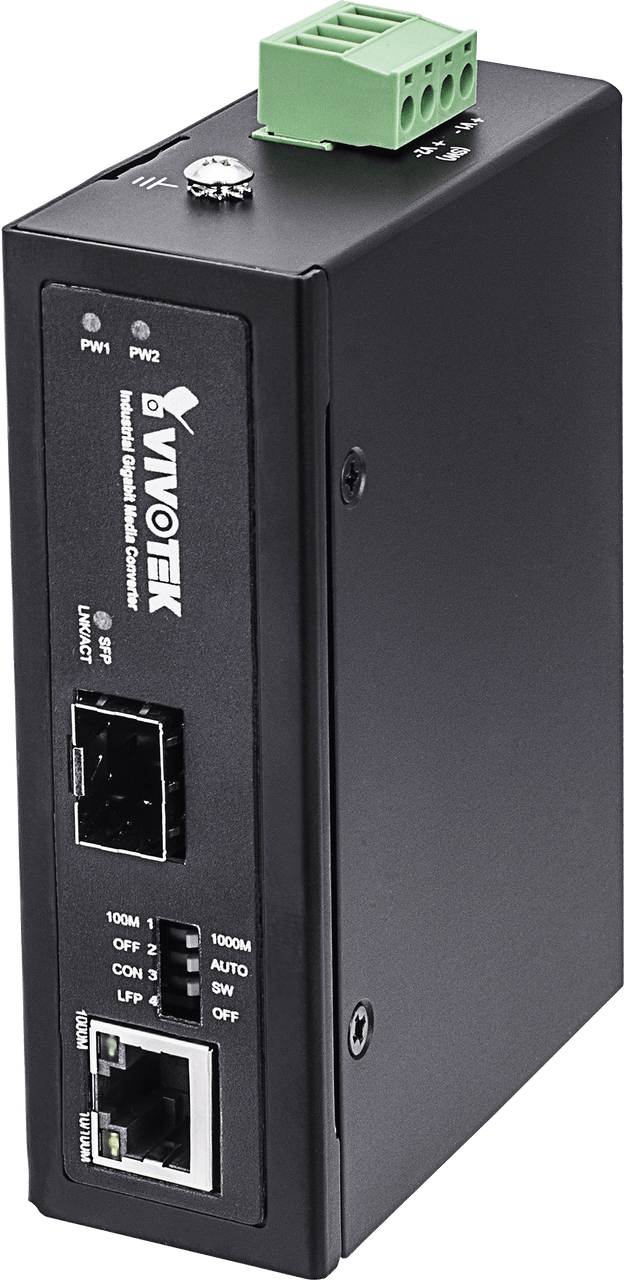

Vivotek AW-IHS-0203 Industrial 1xGE + 1xGE SFP Media Converter
Discontinued - Recommended Replacement: N/A
Vivotek AW-IHS-0203 Features
IP Camera Compatibility
- Video Resolution Megapixel/D1/VGA
- Video Compression MJPEG/MPEG-4/H.264/H.265
- Compatible Camera List VIVOTEK Network Cameras
- Gigabit Ethernet (RJ45) 1
- Gigabit Ethernet (SFP) 1
Standards
- IEEE 802.3 10-BASE-T (Ethernet) Supported
- IEEE 802.3u 100-BASE-TX (Fast Ethernet) Supported
- IEEE 802.3x Flow Control (Full-Duplex Flow Control) Supported
- IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet) Supported
- IEEE 802.3z 1000-BASE-X (Gigabit Ethernet) Supported
Ethernet Performance
- MAC Address 1 K
- Buffer Memory 128 KB
- Transmission Method Store and Forward
- Jumbo Frame 9 KB
- Auto-MDI/MDI-X, Auto-Negotiation Supported
Filtering/Forwarding Rates
- 10Mbps 14,880 pps
- 100Mbps 148,000 pps
- 1000Mbps 1,488,000 pps
Transmission Media
- 10Base T Cat. 3, 4, 5 UTP/STP
- 100Base TX Cat. 5, 5e UTP/STP
- 1000Base T Cat. 5e, 6, 7 UTP/STP
General
- LED Indicators Power, LAN, SFP
- Power Input Redundant Dual 18V-36VAC or 12V-56VDC Power Input, Removable Terminal Block (Not include power supply)
- Power Consumption 3W
- Housing IP30 Design, High Graded Aluminum
- Installation DIN-rail Mounting and Wall Mounting
- Dimensions 103.5 (L) x 31.8 (W) x 90.5 (H) mm
- Weight 0.14 kg
- Operating Temperature -40°C ~ 75°C (-40°F ~ 167°F)
- Storage Temperature -40°C ~ 85°C (-40°F ~ 185°F)
- Humidity Operating: 5~95% (Non-condensing), Storage: 5~95% (Non-condensing)
- Safety Certifications CE, C-Tick, FCC, VCCI, LVD
Accessories
- Included Accessories QIG, Terminal Block, DIN-rail Brackets, Wall Mount Kit
- Optional Accessories Industrial SFP Transceiver: SFP-1000-MM85-X5I: MMF, 0.5 km, -40°C ~ 85°C, SFP-1000-MM13-02I: MMF, 2 km, -40°C ~ 85°C, SFP-1000-SM13-10I: SMF, 10 km, -40°C ~ 85°C, SFP-1000-SM13-40I: SMF, 40 km, -40°C ~ 85°C
- Optional Power Supply Din Rail Power Supply: MDR-10-12: 85 ~ 264VAC In, 12VDC/10W Out, -20°C ~ 70°C
