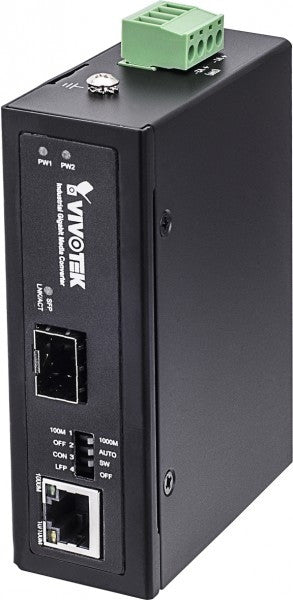

Vivotek AW-IHS-0203 Industrial Gigabit Media Converter SFP
Vivotek AW-IHS-0203 Industrial Gigabit Media Converter SFP

Vivotek

Vivotek AW-IHS-0203 Industrial Gigabit Media Converter SFP

Sale price$165.00
Discontinued
SKU: AW-IHS-0203

Discontinued - Recommended Replacement: N/A

Contact

Vivotek AW-IHS-0203 Features

Hardware Specifications

  • Ethernet Ports: 1 x Gigabit Ethernet (RJ45) & 1 x Gigabit Ethernet (SFP)
  • PoE Ports: 0
  • Resolution: Megapixel/D1/VGA
  • Compression: MJPEG/MPEG-4/H.264/H.265
  • Compatible Cameras: VIVOTEK Network Cameras
  • Power Requirement: Redundant Dual 18V-36VAC or 12V-56VDC Power Input, Removable Terminal Block (Not include power supply)
  • Power Consumption: 3W
  • LED Display: Power, LAN, SFP
  • Dimensions: 103.5 (L) x 31.8 (W) x 90.5 (H) mm
  • Weight: 0.14 kg
  • Operating Temperature: -40°C ~ 75°C (-40°F ~ 167°F) with 5~95% (Non-condensing)
    What's Included:
    QIG, Terminal Block, DIN-rail Brackets, Wall Mount Kit
  • Warranty: 2 Years

Power over Ethernet Specifications

  • Filtering/Forwarding Rates: 10Mbps, 100Mbps, & 1000Mbps
  • Switch Throughput: N/A
  • Per Port PoE Power Output: N/A
  • Total PoE Power Budget: N/A
  • Transmission Method: Store & Forward
  • PoE Power Supply Type: N/A
  • Power Pin Assignments: NA
  • Regulation Compliance: CE, C-Tick, FCC, VCCI, LVD
  • Standards Compliance: IEEE 802.3 10-BASE-T Ethernet, IEEE 802.3u 100-BASE-TX Fast Ethernet, IEEE 802.3x Flow Control, & IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet)
