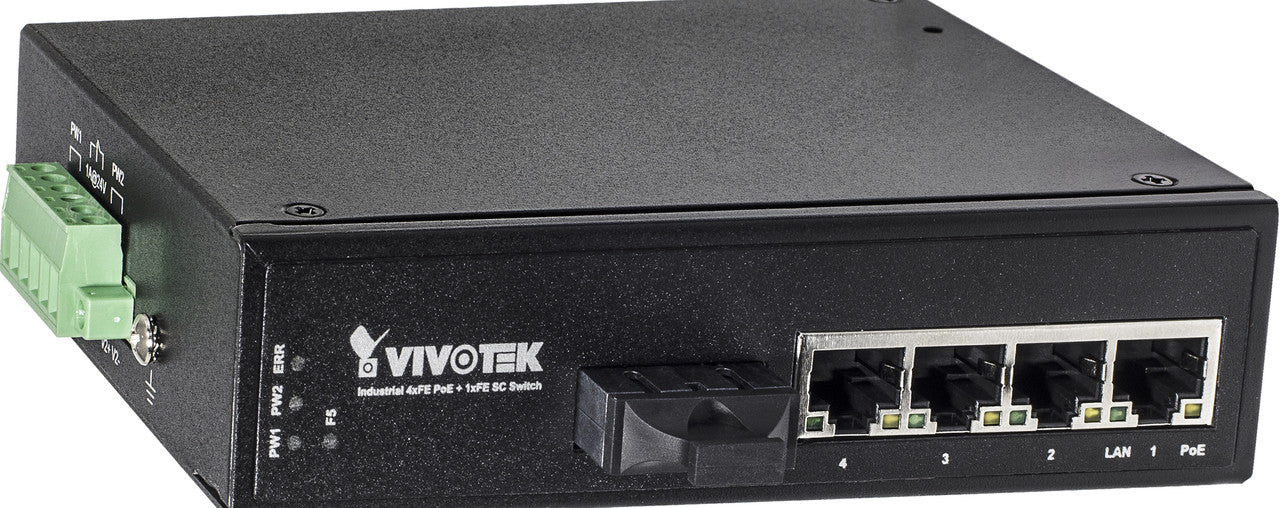

Vivotek AW-IHT-0501 4-Port Industrial PoE + Multi-Mode 2KM Switch

Discontinued - Recommended Replacement:

AW-IHT-0800

Vivotek AW-IHT-0501 Features

Hardware Specifications

• Ethernet Ports: 4 x Fast Ethernet (RJ45), SC Multi-mode 2 km Fast Ethernet (Fiber)
• PoE Ports: 4

• Resolution: Megapixel/D1/VGA
• Compression: MJPEG/MPEG-4/H.264/H.265
• Compatible Cameras: VIVOTEK Network Cameras
• Power Requirement: Redundant Dual 44V-56VDC Power Input Removable Terminal Block
• Power Consumption: 126W

• LED Display: Power, Relay, LAN, PoE
• Dimensions: 142 (L) x 105 (W) x 36.2 (H) mm
• Weight: 0.48 kg (1.06 lbs)
• Operating Temperature: -40°C ~ 75°C (-40°F ~ 167°F) with 5~95% (Non-condensing)
  What's Included: QIG, Terminal Block, DIN-rail Brackets, Wall Mount Kit
• Warranty: 2 Years

Power over Ethernet Specifications

• Filtering/Forwarding Rates: 10Mbps, 100Mbps
• Switch Throughput: N/A
• Per Port PoE Power Output: 30W Max
• Total PoE Power Budget: 120W
• Transmission Method: Store & Forward
• PoE Power Supply Type: End-Span
• Power Pin Assignments: 1/2(+), 3/6(-)
• Regulation Compliance: CE, C-Tick, FCC, LVD, VCCI
• Standards Compliance: IEEE 802.3 10-BASE-T Ethernet, IEEE 802.3u 100-BASE-TX Fast Ethernet, IEEE 802.3x Flow Control, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus
