Vivotek AW-IHT-0502
Network Camera Store is an Authorized Vivotek Reseller

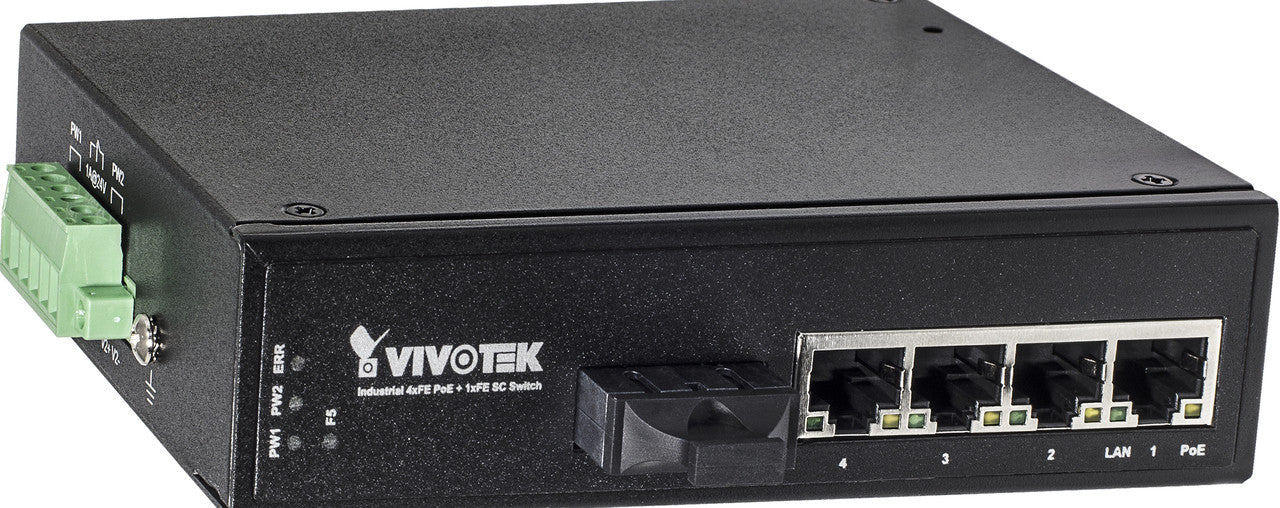

Vivotek AW-IHT-0502 4-Port Industrial PoE + Single-Mode 30KM Switch

Vivotek

Vivotek AW-IHT-0502 4-Port Industrial PoE + Single-Mode 30KM Switch

$291.60
SKU: AW-IHT-0502
Quantity:
Link to Manufacturer's Page

Contact

Vivotek AW-IHT-0502 Features

Hardware Specifications

  • Ethernet Ports: 4 x Fast Ethernet (RJ45), SC Single-mode 30 km Fast Ethernet (Fiber)
  • PoE Ports: 4
  • Resolution: Megapixel/D1/VGA
  • Compression: MJPEG/MPEG-4/H.264/H.265
  • Compatible Cameras: VIVOTEK Network Cameras
  • Power Requirement: Redundant Dual 44V-56VDC Power Input Removable Terminal Block
  • Power Consumption: 126W
  • LED Display: Power, Relay, LAN, PoE
  • Dimensions: 142 (L) x 105 (W) x 36.2 (H) mm
  • Weight: 0.48 kg (1.06 lbs)
  • Operating Temperature: -40°C ~ 75°C (-40°F ~ 167°F) with 5~95% (Non-condensing)
    What's Included:     QIG, Terminal Block, DIN-rail Brackets, Wall Mount Kit
  • Warranty: 2 Years

Power over Ethernet Specifications

  • Filtering/Forwarding Rates: 10Mbps, 100Mbps
  • Switch Throughput: N/A
  • Per Port PoE Power Output: 30W Max
  • Total PoE Power Budget: 120W
  • Transmission Method: Store & Forward
  • PoE Power Supply Type: End-Span
  • Power Pin Assignments: 1/2(+), 3/6(-)
  • Regulation Compliance: CE, C-Tick, FCC, LVD, VCCI
  • Standards Compliance: IEEE 802.3 10-BASE-T Ethernet, IEEE 802.3u 100-BASE-TX Fast Ethernet, IEEE 802.3x Flow Control, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus
