Vivotek AW-IHT-0800
Network Camera Store is an Authorized Vivotek Reseller

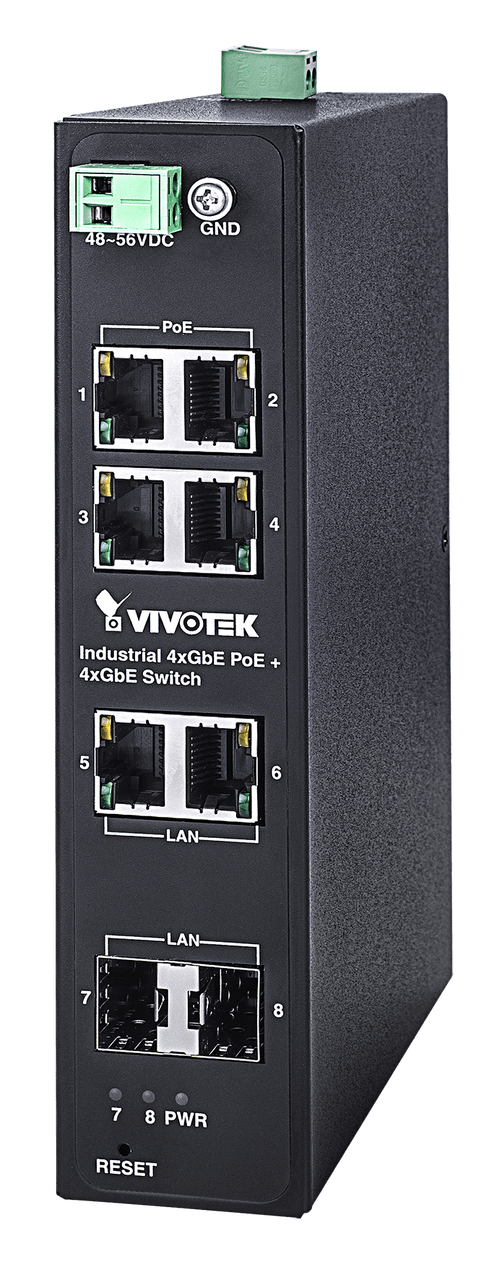

Vivotek AW-IHT-0800 Industrial 4xGE PoE + 2xGE UTP + 2xGE SFP Switch

Vivotek

Vivotek AW-IHT-0800 Industrial 4xGE PoE + 2xGE UTP + 2xGE SFP Switch

Sale price$324.00
SKU: AW-IHT-0800
Quantity:

Contact

Vivotek AW-IHT-0800 Features

Networking Specifications

  • Gigabit Ethernet RJ45 PoE Port 4
  • Gigabit Ethernet RJ45 port 2
  • Gigabit SFP Port 2

Ethernet Performance

  • Switching Bandwidth 16 Gbps
  • MAC Address 4 K
  • Buffer Memory 128 KB
  • Jumbo Frame 9 KB
  • Transmission Method Store and Forward
  • Auto-MDI/MDI-X, Auto-Negotiation Supported

Standards

  • IEEE 802.3 10-BASE-T (Ethernet) Supported
  • IEEE 802.3u 100-BASE-TX (Fast Ethernet) Supported
  • IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet) Supported
  • IEEE 802.3z 1000-BASE-X (Gigabit Ethernet) Supported
  • IEEE 802.3x Flow Control (Full-Duplex Flow Control) Supported
  • IEEE 802.3af Power over Ethernet Supported
  • IEEE 802.3at Power over Ethernet Plus Supported

Power Specifications

  • Power Input Voltage PW1: 48 ~ 56VDC, PW2: 48 ~ 56VDC, Redundant Power Backup
  • Max. PoE Output Power /Per PoE Port 54VDC, Max. 30W
  • Total PoE Power Budget 120W
  • IEEE 802.3af/at Supported
  • Power Pin Assignment 1/2(+), 3/6(-)
  • PoE PD Auto Detection Supported
  • Surge Protection/Per PoE Port 12KV

General

  • Dimensions 172 (L) x 132 (W) x 39 (H) mm
  • Weight 0.7 kg
  • Operating Temperature -40°C ~ 75°C (-40°F ~ 167°F)
  • Storage Temperature -40°C ~ 85°C (-40°F ~ 185°F)
  • Operating Humidity 5% ~ 95% non-condensing

Certifications

  • EMS EN55024, IEC 61000-4-2(ESD), IEC 61000-4-3(RS), IEC 61000-4-4(EFT), IEC 61000-4-5(Surge), IEC 61000-4-6(CS), IEC 61000-4-8(PFMF), IEC 61000-4-11(DIP)
  • EMI EN 55032, EN 61000-3-2, EN 61000-3-3, AS/NZS CISPR 32, FCC Part15 Class A, VCCI
  • Safety LVD, EN60950
  • Vibration IEC 60068-2-6
  • Shock IEC 60068-2-27
  • Freefall IEC 60068-2-32
