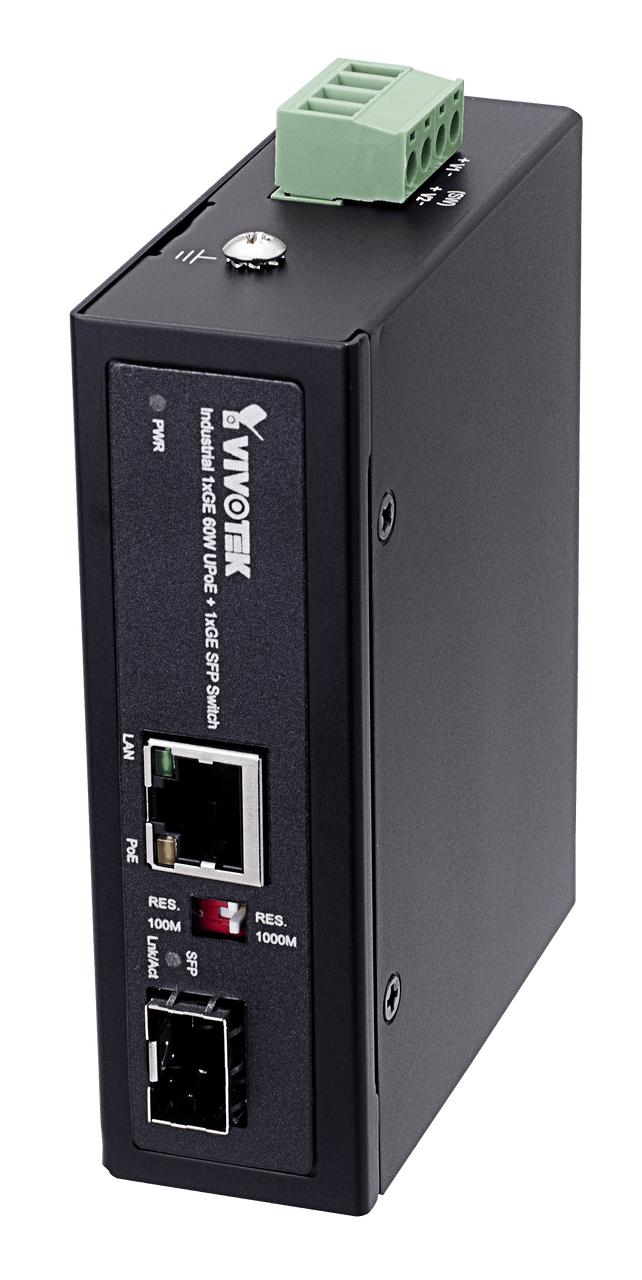

Vivotek AW-IHU-0200 Industrial 1xGE 60W UPoE + 1xGE SFP Switch
Quantity:
Vivotek AW-IHU-0200 Features
IP Camera Compatibility
- Video Resolution Megapixel/D1/VGA
- Video Compression MJPEG/MPEG-4/H.264/H.265
- Compatible Camera List VIVOTEK IEEE 802.3at / UPoE Network Cameras
- Gigabit Ethernet (RJ45) 1
- Gigabit Ethernet (SFP) 1
- MAC Address 2 K
- Buffer Memory 128 KB
- Jumbo Frame 9 KB
- Transmission Method Store and Forward
- Backplane 2 Gbps
- Auto-MDI/MDI-X, Auto-Negotiation Supported
- IEEE 802.3 10-BASE-T (Ethernet) Supported
- IEEE 802.3u 100-BASE-TX (Fast Ethernet) Supported
- IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet) Supported
- IEEE 802.3z 1000-BASE-X (Gigabit Ethernet) Supported
- IEEE 802.3x Flow Control (Full-Duplex Flow Control) Supported
- IEEE 802.3at Power over Ethernet Plus Supported
- 10Mbps 14,880 pps
- 100Mbps 148,000 pps
- 1000Mbps 1,488,000 pps
- 10Base T Cat. 3, 4, 5 UTP/STP
- 100Base TX Cat. 5, 5e UTP/STP
- 1000Base T Cat. 5e,6,7 UTP/STP
- Number of PoE Out Ports 1
- PoE Power Output Per Port 56VDC, Max. 60W
- 802.3at Standard Compatible Yes
- Over Current Protection Supported
- Circuit Shorting Protection Supported
- Total PoE Power Budget 60 W
- Power Pin Assignment 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE PD Auto Detection Yes
- LED Indicators Power, PoE, SFP, LAN
- Power Input 50 ~ 56VDC
- Power Consumption 72W
- Alarm Relay Contact Relay outputs with current carrying capacity of 1A @ 24VDC
- Housing Rugged Metal, IP30 Protection
- Installation DIN-rail Mounting and Wall Mounting
- Dimensions 103.5 (L) x 81.5 (W) x 32 (H) mm
- Weight 0.14 kg
- Operating Temperature -40°C ~ 75°C (-40°F ~ 167°F)
- Storage Temperature -40°C ~ 85°C (-40°F ~ 185°F)
- Humidity Operating: 5~95% (Non-condensing), Storage: 5~95% (Non-condensing)
- Safety Certifications CE, C-Tick, FCC, VCCI, LVD
- Stability Testing EN 55022/2, EN 55011, EN 60068-2-6, EN 60068-2-27
- Included Accessories QIG, Terminal Block, DIN-rail Brackets, Wall Mount Kit
- Optional Accessories
- Industrial SFP Transceiver:
- SFP-1000-MM85-X5I: MMF, 0.5 km, -40°C ~ 85°C
- SFP-1000-MM13-02I: MMF, 2 km, -40°C ~ 85°C
- SFP-1000-SM13-10I: SMF, 10 km, -40°C ~ 85°C
- SFP-1000-SM13-40I: SMF, 40 km, -40°C ~ 85°C
- Optional Power Supply
- Din Rail Power Supply:
- NDR-75-48: 90~264VAC In, 48VDC/75W Out, -20°C~70°C
- Wall Mount Power Supply:
- HLG-80H-54: 90~305VAC In, 54VDC/80W Out, -40°C~70°C
