Vivotek CC8130 (HS)
Vivotek CC8130 (HS) Covert Network Camera

Vivotek

Vivotek CC8130 (HS) Covert Network Camera

$300.00
Discontinued
SKU: CC8130 (HS)
Link to Manufacturer's Page

Contact

Discontinued; replaced by the CC8160(HS).

Vivotek CC8130 (HS) Features

  • Max Resolution: 1280 x 800
  • Image Sensor: 1/4" Progressive CMOS
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: 0.4 Lux @ F1.8 (Color)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fixed-Focal
  • Focal Length: f = 1.3 mm, F1.8
  • Zoom: ePTZ: 4x digital zoom IE plug-in
  • Iris: Fixed Iris
  • Focus: Auto
  • Field of View: 180° (Horizontal), 100° (Vertical), 180° (Diagonal)
  • Compression Styles: H.264 & MJPEG
  • Frame Rate: 30 fps at 1280 x 800 in both compression styles
  • WDR Technology: No
  • Image Settings: Adjustable image size, quality and bit rate Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, Scheduled profile settings
  • Privacy Mask: Yes
  • Built-in Microphone: Yes
  • Audio Capabilities: Listening only via built-in microphone
  • Alarm/Event Management: Triple-window video motion detection, manual trigger, periodical trigger, system boot, recording notify, Event notification using HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Users: Live view for up to 10 users
  • On-board Storage: No
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: None
  • Dimensions: 27.66 (D) x 49.3 (W) x 866.4 (H) mm
  • Weight: 94 g
  • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
  • Power: IEEE 802.3af PoE Class 1, Max. 3.8W
  • Warranty: 2 Year
  • What's Included: Camera & height stick, Quick installation guide, warranty card, camera stand, screw pack, CD (User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software)
  • Please Note: Black back housing can be ordered; please contact us for information.

Vivotek CC8130 (HS) Overview

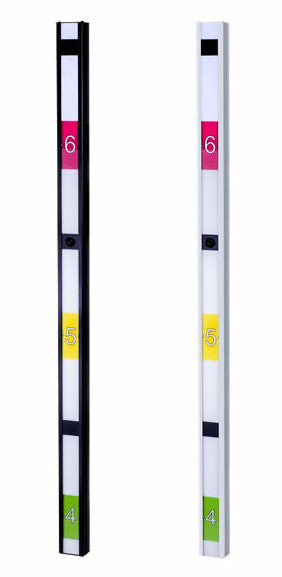

The VIVOTEK CC8130(HS) is a height-strip network camera equipped with a 180 degree wide-angle lens, delivering clear images for reliable facial recognition. An ideal installation height of 170cm (5.5 ft) allows the CC8130(HS) to capture clear facial images at eye view, even when the subject is wearing a hat or hood. In addition, the plug and play design makes the CC8130(HS) installation simple and rapid. Combining low-profile and high- level features, the CC8130(HS) is ideal for discreet indoor applications, such as retail, banks, restaurants, small businesses and particularly in cashier areas. To dramatically reduce file sizes and conserve valuable network bandwidth, the CC8130(HS) supports the industry-standard H.264 compression technology. Combined with the ST7501 multi-lingual 32-channel recording software, users can quickly and easily set up an IP surveillance system that's simple to operate but hard to beat.
