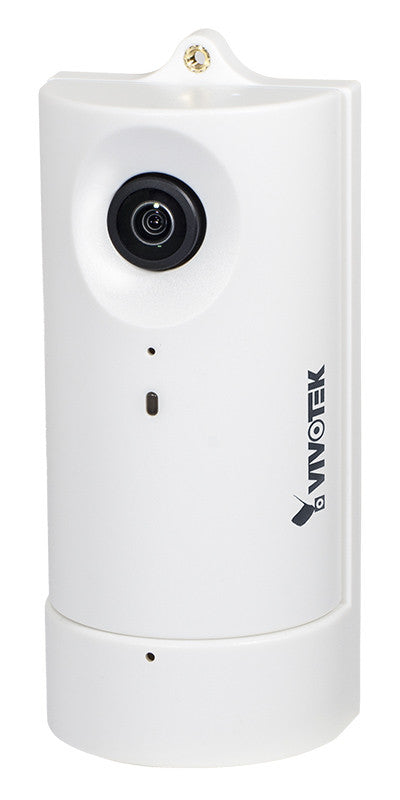

Vivotek CC8130 Product view
Vivotek CC8130 camera view coverage
Vivotek CC8130 Connecting ethernet cable
Vivotek CC8130 banner
Network Camera Store is an Authorized Vivotek Reseller
H.264 compression
Tamper detection
180 Panoramic View
Vivotek CC8130 Panoramic Compact Network Camera

Vivotek

Vivotek CC8130 Panoramic Compact Network Camera

Sale price$200.00
Discontinued
SKU: CC8130

Vivotek CC8130 Features

  • Max Resolution: 1280 x 800
  • Image Sensor: 1/4" Progressive CMOS
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: 0.47 Lux, 50 IRE (color)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Fixed-Focal
  • Focal Length: 1.3mm, F1.8
  • Zoom: ePTZ: 4x digital zoom (IE plug-in)
  • Iris: N/A
  • Focus: Auto
  • Field of View: 180° both Horizontal & Diagonal, 100° Vertical
  • Frame Rate: 30 fps at 1280x800 in bot compression styles
  • Image Settings: Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, Adjustable resolution, quality and bit rate
  • Privacy Mask: Yes
  • Built-in Microphone: Yes, effective up to 5m
  • Audio Capabilities: One-way via built-in microphone
  • Alarm/Event Management: Triple-window video motion detection, manual trigger, periodical trigger, system boot, recording notify, Event notification using HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Users: Live viewing for up to 10 clients
  • On-board Storage: No
  • Indoor/Outdoor: Indoor Only
  • Housing/Enclosure Rating: N/A
  • Dimensions: 28mm (D) x 50mm (W) x 88mm (H) (Body Only); 35mm (D) x 53mm(W) x 118mm (H) (Flat Mount); 40mm (D) x 58mm (W) x 127mm (H) (Tilt Mount)
  • Weight: 94 g
  • Operating Temperature: 0°C ~ 40°C (32°F ~ 122°F)
  • Power: IEEE 802.3af PoE Class 1, Max. 3.8W
  • Warranty: 2 Years
  • What's Included: CC8130, Mount Bracket (flat mount/tilt mount), Screws, Quick Installation Guid, Software CD, & Warranty Card
  • Please note: It is recommended to use an Ethernet cable that comes without the strain relief boot. You can remove the boot if your cable comes with one

Vivotek CC8130 Overview

VIVOTEK CC8130 is a compact cube camera especially designed for indoor surveillance. The unique design makes it the best choice for boutique, department or convenience stores. The ability to view at a wide angle at 180 degrees provides complete video security with no dead angles. The unique mounting design facilitates easy installation on a wall or desktop, capturing faces at eye level. A built-in microphone further increases the level of surveillance while recording sound within a 5 meter radius. The CC8130 supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. Together with the ST7501 multi-lingual 32-channel recording software, users can set up an easy-to-use IP surveillance system with ease. The CC8130 is also PoE compliant making installation a breeze.
