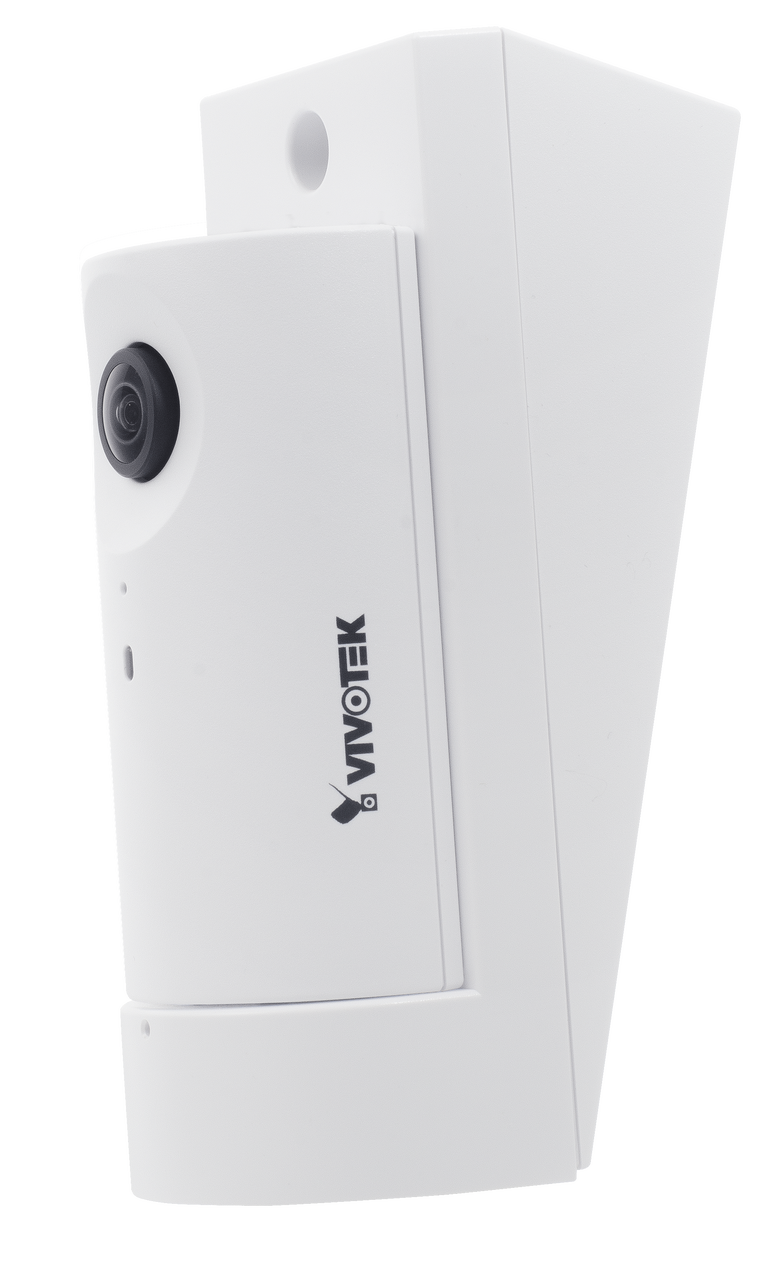

Vivotek CC8160 2MP Indoor Panoramic Network Camera

Discontinued Recommended Replacement:

CC8370-HV or CC9180

Vivotek CC8160 Features

• Image Sensor: 1/2.9" Progressive CMOS
• Maximum Resolution: 1920x1080
• Lens Type: Fixed-focal
• Focal Length: f = 1.66 mm
• Aperture: F1.95
• Field of View: 180° (Horizontal), 100° (Vertical), 180° (Diagonal)
• WDR Technology: WDR Enhanced
• Minimum Illumination: 0.22 Lux @ F1.66 (Color)
• ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)
• Compression: H.264 & MJPEG
• Maximum Frame Rate: H.264: 30 fps @ 1920x1080; MJPEG: 30 fps @ 1920x1080
• Image Settings: Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings
• Audio Capability: One-way audio via Built-in Microphone
• Effective Range: 5 meters
• Users: Live viewing for up to 10 clients
• ONVIF: Yes
• Alarm Events & Management: Five-window video motion detection, VCA (Line crossing detection, field detection, loitering detection, Available per project request), manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
• Power / Consumption: IEEE 802.3af PoE Class 2 / Max. 4.5 W
• Dimensions: 28 mm (D) x 50 mm (W) x 88 mm (H) (Body only); 40 mm (D) x 58 mm(W) x 127 mm (H) (Tilt Mount)
• Weight Net: 66.7 g
• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
• Humidity: 90%
• Warranty: 24 months
• Included Accessories: Quick installation guide, warranty card, camera stand, screw pack

Vivotek CC8160 Overview

VIVOTEK's CC8160 is a low profile network camera especially designed for 180° panoramic indoor surveillance. The unique design makes it a great choice for retail, convenience stores, hotels, classrooms, and offices. The 180° panoramic view in 1080P provides amazing situational surveillance coverage. The unique mounting design facilitates easy installation on a wall, or counter to capture faces at eye level. A built-in microphone further increases the level of surveillance while recording sound within a 5 meter radius.

The CC8160 supports industry-standard H.264 compression technology, reducing file sizes and conserving valuable network bandwidth. Together with the VAST multi-lingual 32-channel recording software, users can set up an easy-to-use IP surveillance system with ease.
