Vivotek CC8160(HS) - available in white or black

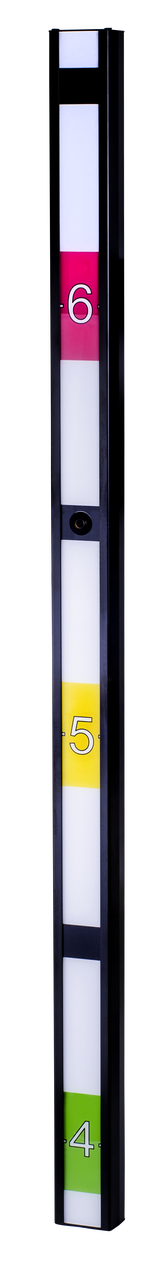

Vivotek CC8160(HS) - Black

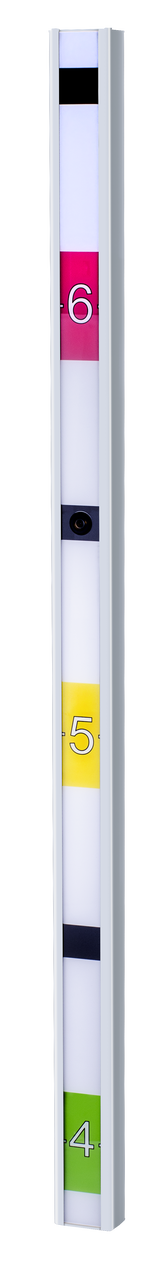

Vivotek CC8160(HS) - White
Vivotek CC8160(HS) banner
Network Camera Store is an Authorized Vivotek Reseller
180° Panoramic View

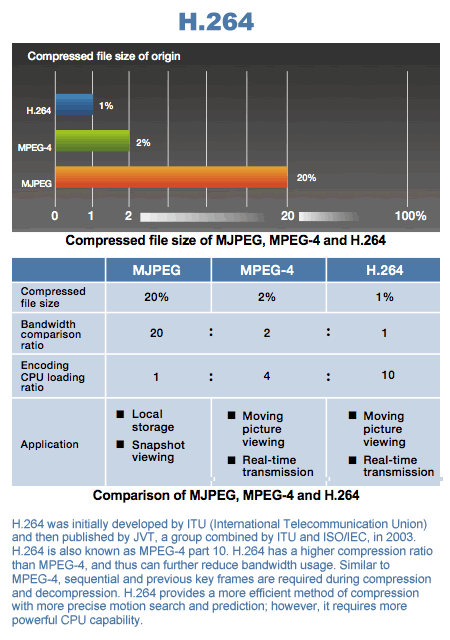

H.264 compression

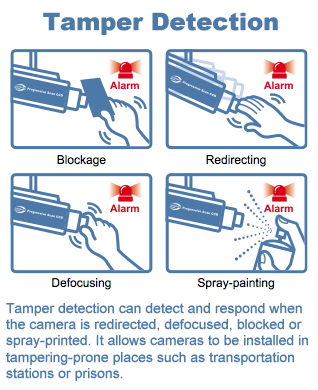

Tamper detection
Vivotek CC8160(HS) 2MP Height Stick Covert Panoramic Network Camera

Vivotek

Vivotek CC8160(HS) 2MP Height Stick Covert Panoramic Network Camera

$0.00
Discontinued
Housing Color:Default Title
Link to Manufacturer's Page

Contact

Discontinued - Recommended Replacement: CC9160(HS)

Vivotek CC8160(HS) Features

  • Maximum Resolution: 1920x1080
  • Image Sensor: 1/2.9" Progressive CMOS
  • Day/Night: No
  • Mechanical IR Cut Filter: No
  • Minimum Illumination: 0.22 Lux @ F1.66 (Color)
  • IR Illuminators: Yes
  • IR Illuminator Range: 8m (26 ft)
  • Lens Type: Fixed-focal
  • Focal Length: f = 1.66 mm / F1.95
  • Zoom: 48x digital zoom (4x on IE plug-in, 12x built in)
  • Iris: N/A
  • Focus: Fixed
  • Field of View: 180° (Horizontal), 100° (Vertical), 180° (Diagonal)
  • Compression: H.264 & MJPEG
  • Maximum Frame Rate: H.264: 30 fps @ 1920x1080; MJPEG: 30 fps @ 1920x1080
  • WDR Technology: WDR Enhanced
  • Image Settings: Adjustable resolution, quality and bitrate, Smart Stream II, Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings
  • Audio Capability: None
  • Users: Live viewing for up to 10 clients
  • ONVIF: Yes
  • Alarm Events & Management: Five-window video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, Event notification using HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server
  • ONVIF: Yes
  • Users: Live viewing for up to 10 clients
  • On-board storage: No
  • Housing/Enclosure Rating: Indoor
  • Dimensions: 27.7 (D) x 49.3 (W) x 866.4 (H) mm
  • Weight: 94 g (.21 lb)
  • Operating Temperature: -10°C ~ 40°C (14°F ~ 104°F)
  • Humidity: 90%
  • Power / Consumption: IEEE 802.3af PoE Class 1 / Max. 2.01 W
  • Warranty: 3 years
  • Included Accessories: Quick installation guide, warranty card, camera stand, screw pack

Vivotek CC8160(HS) Overview

VIVOTEK's CC8160(HS) is a 2MP height-strip network camera equipped with a 180 degree wide-angle lens, delivering clear images for reliable facial recognition. An ideal installation height of 170cm (5.5 ft) allows the CC8160(HS) to capture clear facial images at eye view, even when the subject is wearing a hat or covered with a hood. In addition, the plug and play design makes the CC8160(HS) installation simple and efficient. Combining a low-profile design with high-end features, the CC8160(HS) is ideal for discreet indoor applications, such as retail, banking, restaurants, and small businesses.
