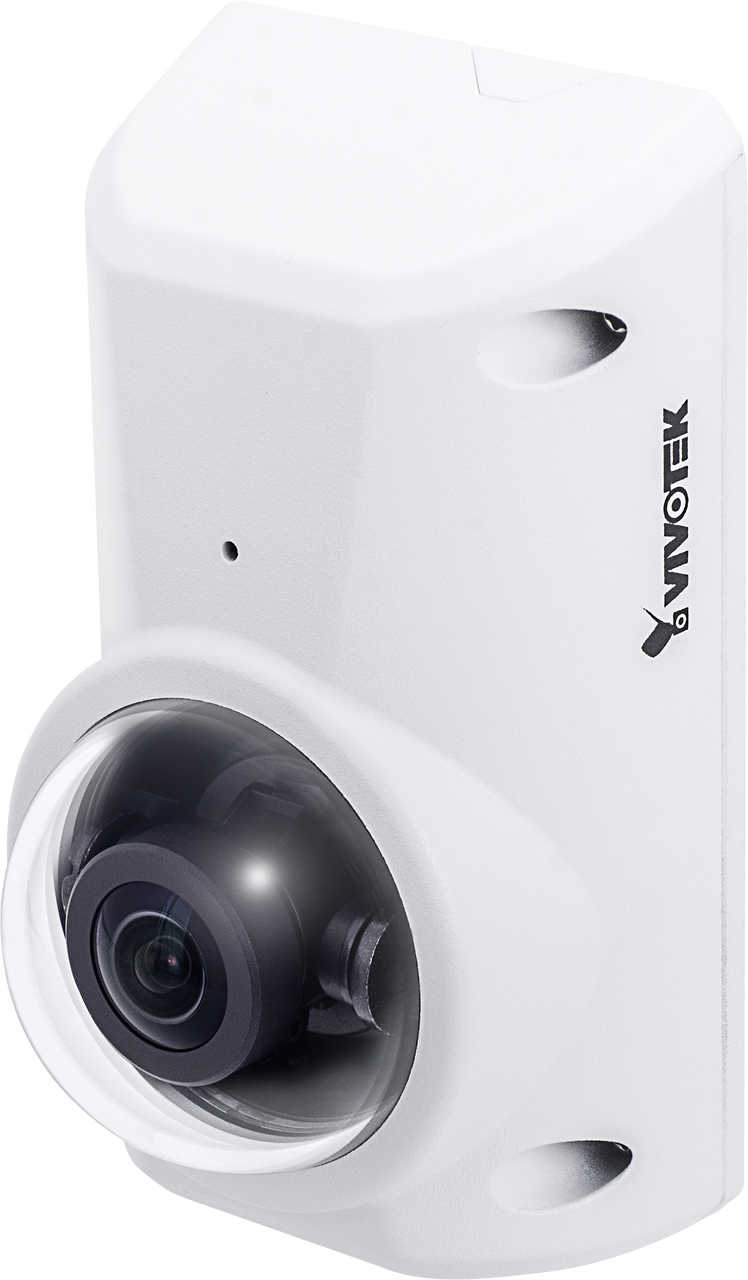

Vivotek CC8370-HV 3MP Panoramic Compact Network Camera

Discontinued - Suggested Replacement: CC9380-HV

Vivotek CC8370-HV Features

• Max Resolution: 2048x1536
• Image Sensor: 1/3 Progressive CMOS
• Day/Night: No
• Mechanical IR Cut Filter: No
• Minimum Illumination: 0.05 Lux @ F2.0 (Color)
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Fixed-Focal
• Focal Length: 1.6mm / F2/0
• Zoom: ePTZ: 4x digital zoom (IE plug-in)
• Iris: N/A
• Focus: Auto
• Field of View: 180° (horizontal), 130° (vertical), 180° (diagonal)
• Compression Styles: H.264 & MJPEG
• Frame Rate: 30fps @ 2048x1536
• WDR Technology: WDR Pro, 100dB
• Image Settings: Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror & rotate; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings
• Privacy Mask: Yes
• Built-in Microphone: Yes, effective up to 5m
• Audio Capabilities: One-way via built-in microphone
• Alarm/Event Management: Five-window video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, event notification using HTTP, SMTP, FTP, NAS server and SD Card, file upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Users: Live viewing for up to 10 clients
• On-board Storage: MicroSD/SDHC/SDXC card slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
• Dimensions: 115 (D) x 65 (W) x 59 (H) mm
• Weight: 331g
• Operating Temperature: -10°C ~ 50°C (14°F~ 122°F)
• Power: IEEE 802.3af PoE Class 1, Max. 4.9W
• Warranty: 2 Years
• What's Included: Camera, Dessicant bag, Screw packs, Waterproof Ethernet cable housing, Mount bracket for junction box, Quick Installation Guide & alignment sticker

Vivotek CC8370-HV Overview

VIVOTEK's CC8370-HV is a vandal-proof cube network camera offering up to 30 fps at 3-Megapixel resolution. Featuring 180° horizontal panoramic views with adjustable tilt angle, the camera allows users amazing flexibility of viewing angles and options. The camera's compact size makes it an ideal choice for boutique, department and convenience stores, and its unique anti-ligature design and inconspicuous appearance mean that the CC8370-HV is also ideal for schools, police stations and prisons. The CC8370-HV can view at a wide angle of 180 degrees, providing complete video security with no dead angles. Featuring WDR Pro, the camera captures both the dark and bright areas of an image and combines the differences to create a highly realistic representation of the original scene. Further, with added SNV technology, high-quality full-color surveillance video becomes possible even under low-light conditions. These combined features enable the camera to provide video quality remarkably close to the capabilities of the human eye. When installing the unit, the unique mounting design facilitates easy installation on a wall or desktop in order to capture faces at eye level. Further increasing the level of surveillance, a built-in microphone which records sound within a 5 meter radius. The CC8370-HV also supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. Together with the ST7501 multi-lingual 32-channel recording software, users can simply and quickly set up an easy-to-use IP surveillance system.
