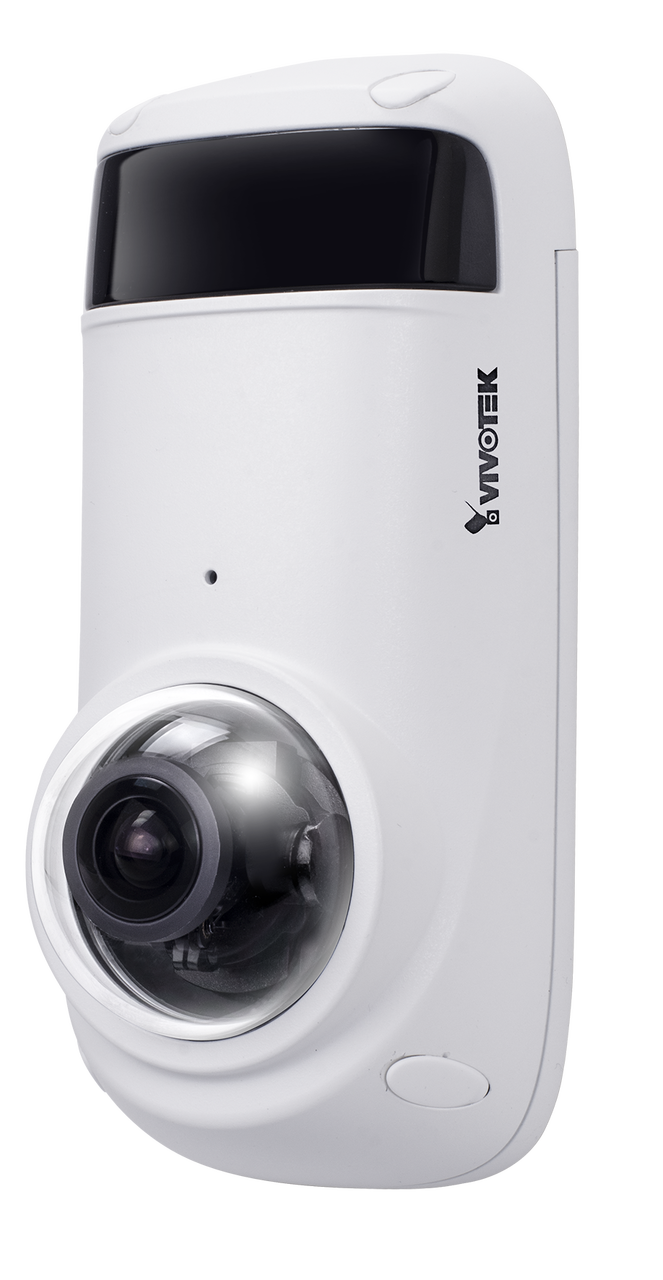

Vivotek CC8371-HV 3MP IR Panoramic Compact Network Camera

Replaced by the CC9381-HV

Vivotek CC8371-HV Features

• Max Resolution: 2048x1536
• Image Sensor: 1/2.8" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: <0.07 Lux @ F2.2 (Color), <0.001 Lux @ F2.2 (B/W)
• IR Illuminators: Yes
• IR Illuminator Range: up to 15m with Smart IR
• Lens Type: Fixed-Focal
• Focal Length: 1.45mm / F2.2
• Zoom: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Iris: N/A
• Focus: Auto
• Field of View: 180° (horizontal), 120° (vertical), 180° (diagonal)
• Compression Styles: H.264 & MJPEG
• Frame Rate: 30fps @ 2048x1536
• WDR Technology: WDR Pro, 100dB
• Image Settings: Adjustable resolution, quality and bitrate; Smart Stream II, Time stamp, text overlay, flip & mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, pixel calculator, 3D-Noise reduction, white balance, exposure control, gain, backlight compensation
• Privacy Mask: Yes
• Built-in Microphone: Yes, effective up to 5m
• Audio Capabilities: One-way via built-in microphone
• Alarm/Event Management: Five-window video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using HTTP, SMTP, FTP, NAS server and MicroSD Card File upload via HTTP, SMTP, FTP, NAS server and MicroSD card
• ONVIF: Yes
• Users: Live viewing for up to 10 clients
• On-board Storage: MicroSD/SDHC/SDXC card slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
• Dimensions: 159.9 x 71.92 x 60.2 mm (Dome to rear panel), 39.2 mm (Flat to rear panel)
• Weight: 492g (1.08 lb)
• Operating Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
• Power: IEEE 802.3af PoE Class 0, Max. 11.3 W
• Warranty: 3 Years
• What's Included: Camera, Quick installation guide, warranty card, mounting bracket, tilt bracket, screw pack

Vivotek CC8371-HV Overview

VIVOTEK’s CC8371-HV is a vandal-proof IR fisheye network camera offering up to 30 fps at 3-Megapixel resolution. With its unique design and inconspicuous appearance, the CC8371-HV is suitable for a wide array of environments. Featuring 180° horizontal panoramic views with adjustable 25° tilt angle, the camera allows users amazing flexibility of viewing angles and options. The camera’s weather-proof compact size also makes it an ideal choice for indoor and outdoor scenarios such as boutiques, convenience stores, banks, schools, parking lots and residential homes. Without ligature edges, it can also be very effective in tough security installations like prisons and mental facilities.

The CC8371-HV can view up to 180 degrees, providing complete video security without losing angle coverage. Featuring WDR Pro, the camera captures both the dark and bright areas of an image and combines the differences to create a highly realistic representation of the original scene. Further, with added SNV technology, high-quality full-color surveillance video becomes possible even under low-light conditions. These combined features enable the camera to provide video quality remarkably close to the capabilities of the human eye. Further increasing the level of surveillance, a built-in microphone can record sound within a 5-meter radius.

The CC8371-HV also has built-in 180° IR illuminators up to 15 meters. So no matter day or night, light or dark, the CC8371-HV's versatility is unmatched.
