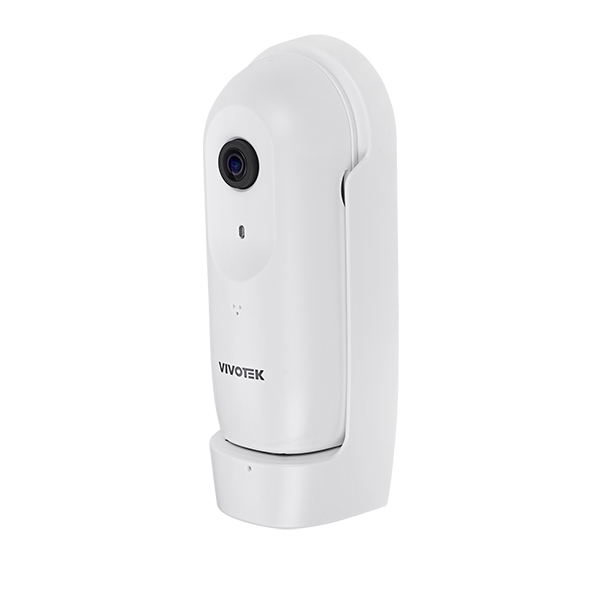

Vivotek CC9160-H 2MP, WDR Pro, 180° Panoramic View, Smart Stream III
Vivotek CC9160-H 2MP, WDR Pro, 180° Panoramic View, Smart Stream III

Vivotek

Vivotek CC9160-H 2MP, WDR Pro, 180° Panoramic View, Smart Stream III

$307.80
SKU: CC9160-H
Quantity:
Link to Manufacturer's Page

Contact

  • 2-Megapixel CMOS Sensor
  • 180° Horizontal Panoramic View
  • Compact, Low-Profile Design
  • 30 fps @ 1920x1080
  • Smart Stream III to Optimize Bandwidth Efficiency
  • WDR Pro 120 dB
  • Digital Input, Digital Output, Built-in Microphone
  • Trend Micro IoT Security

Overview

VIVOTEK's CC9160-H is a low-profile network camera especially designed for 180° panoramic indoor surveillance. The inconspicuous design makes it a great choice for retail, convenience stores, hotels, classrooms, and cafes. With 120 dB WDR Pro for high contrast lighting environments, the 180° panoramic views in 1080P provides amazing situational surveillance coverage. The unique mounting design facilitates easy installation onto any wall. A built-in microphone further increases the level of surveillance while recording sound within a 5 meter radius. Included digital input and digital output connections also add to the CC9160-H's security capabilities.
System Information
Model
CC9160-H
CPU
Multimedia SoC (System-on-Chip)
Flash
256 MB
RAM
512 MB
Camera Features
Image Sensor
1/2.8" Progressive CMOS
Max. Resolution
1920x1080
Lens Type
Fixed-focal
Focal Length
f = 1.66 mm
Aperture
F1.95
Iris Type
Fixed Iris
Field of View
180° (Horizontal)
100° (Vertical)
180° (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Minimum Illumination
0.03 lux @ F1.95 (Color)
Tilt Range
15° with tilt bracket
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video
Video Compression
H.265, H.264, MJPEG
Maximum Frame Rate
H.265: 30 fps @ 1920x1080 (WDR Pro on/off)
H.264: 30 fps @ 1920x1080 (WDR Pro on/off)
MJPEG: 30 fps @ 1920x1080 (WDR Pro on/off)
Maximum Streams
3 video streams (Up to 8 configurable profiles)
S/N Ratio
66.2 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (flip, mirror), Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, DIS, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings
Audio
Audio Capability
One-way Audio
Audio Compression
G.711, G.726
Audio Interface
Built-in microphone
Effective Range
5 meters
Network
Users
Live viewing for up to 10 clients
Security
Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T supported, specification available at www.onvif.org
Solution Integration
Video Motion Detection
Five-window video motion detection
VADP Package
Trend Micro IoT Security (1-year free trial), VIVOCloud, Stratocast
Alarm and Event
Event Trigger
Audio Detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot, digital input
Event Action
Event notification via email, HTTP, FTP, NAS server, SD card, push notification, digital output
File upload via email, HTTP, FTP, NAS server, SD card
General
Connectors
RJ-45 cable connector for 10/100Mpbs Network/PoE connection
Digital input
Digital output
LED Indicator
System power and status indicator
Power Input
IEEE 802.3af PoE Class 2
Power Consumption
Max. 5 W
Dimensions
120 (H) x 52 (W) x 39 (D) mm (Body only)
147 (H) x 61 (W) x 41 (D) mm (w/ Bracket)
Weight
81 g (camera body)
127 g (w/ bracket)
Certifications
EMC: CE (EN 55032 Class B, EN 55035), FCC (FCC Part 15 Subpart B Class B), UKCA
(BS EN 55032: 2015 +A11: 2020), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR
32 Class B); Safety : UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN
62471), UKCA (BS EN IEC 62368-1: 2020 +A11: 2020); IA: BIS (IS 13252), BSMI (EMC:
CNS 13438, Safety: CNS 14336-1)
Operating Temperature
Starting Temperature: 0°C ~ 45°C (32°F~ 113°F)
Working Temperature: -10°C ~ 45°C (14°F~ 113°F)
Humidity
90% RH (non-condensing)
Warranty
36 months
System Requirements
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or above
Included Accessories
Packing Contents
Quick installation guide, mounting bracket, tilt bracket, screw pack
